GE AZ45E07DA Series User Manual

– 57 –
Wiring Diagrams

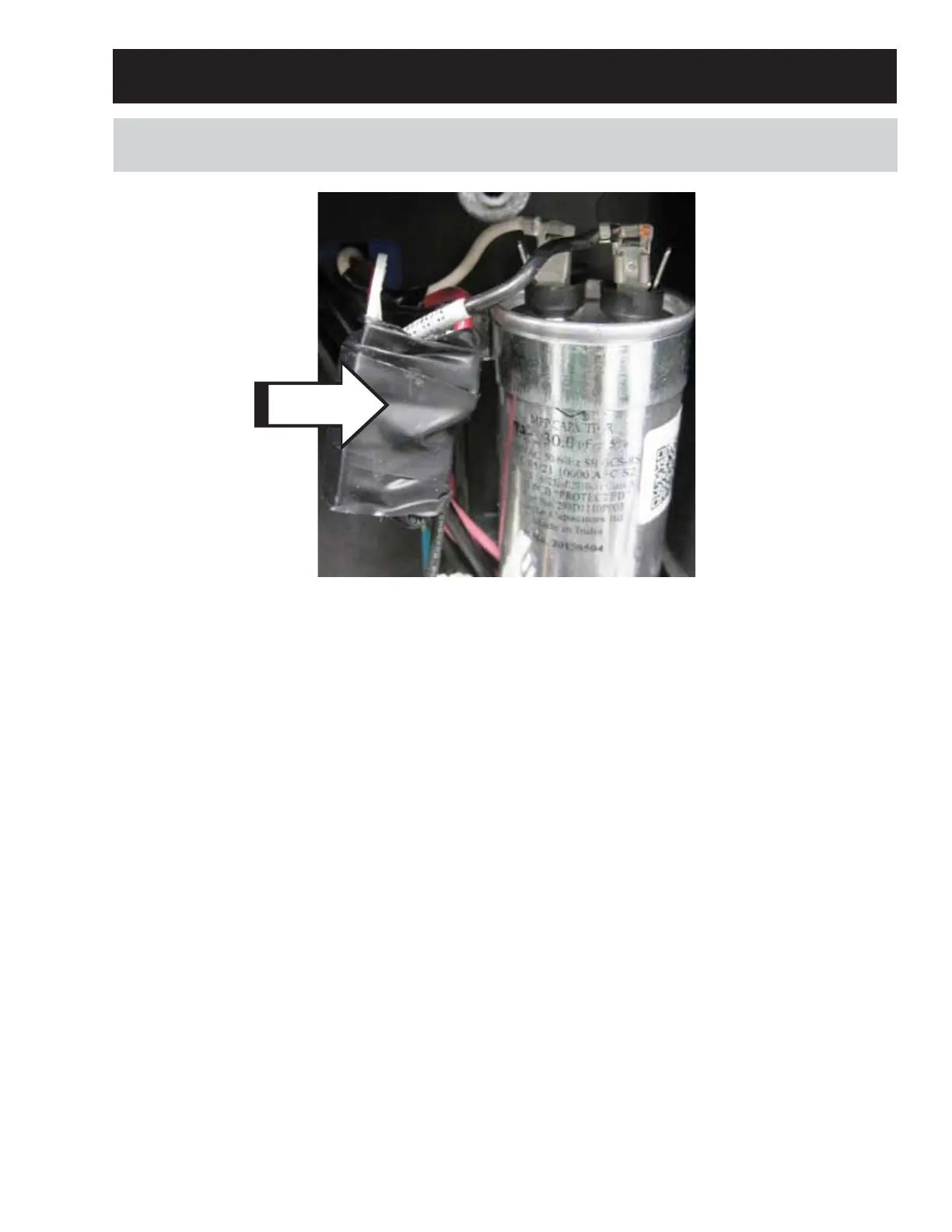

Some early production Zonelines utilized a thermal cut-out that looks like the image shown. This
wiring diagram depicts how this cut out is wired into the circuit. NOTE: If this cut out opens, the
compressor will only have the run winding energized and will shut oȺ on the overload protector.
Be sure to check this cut out before replacing the compressor.
Early Production Wiring Diagram
