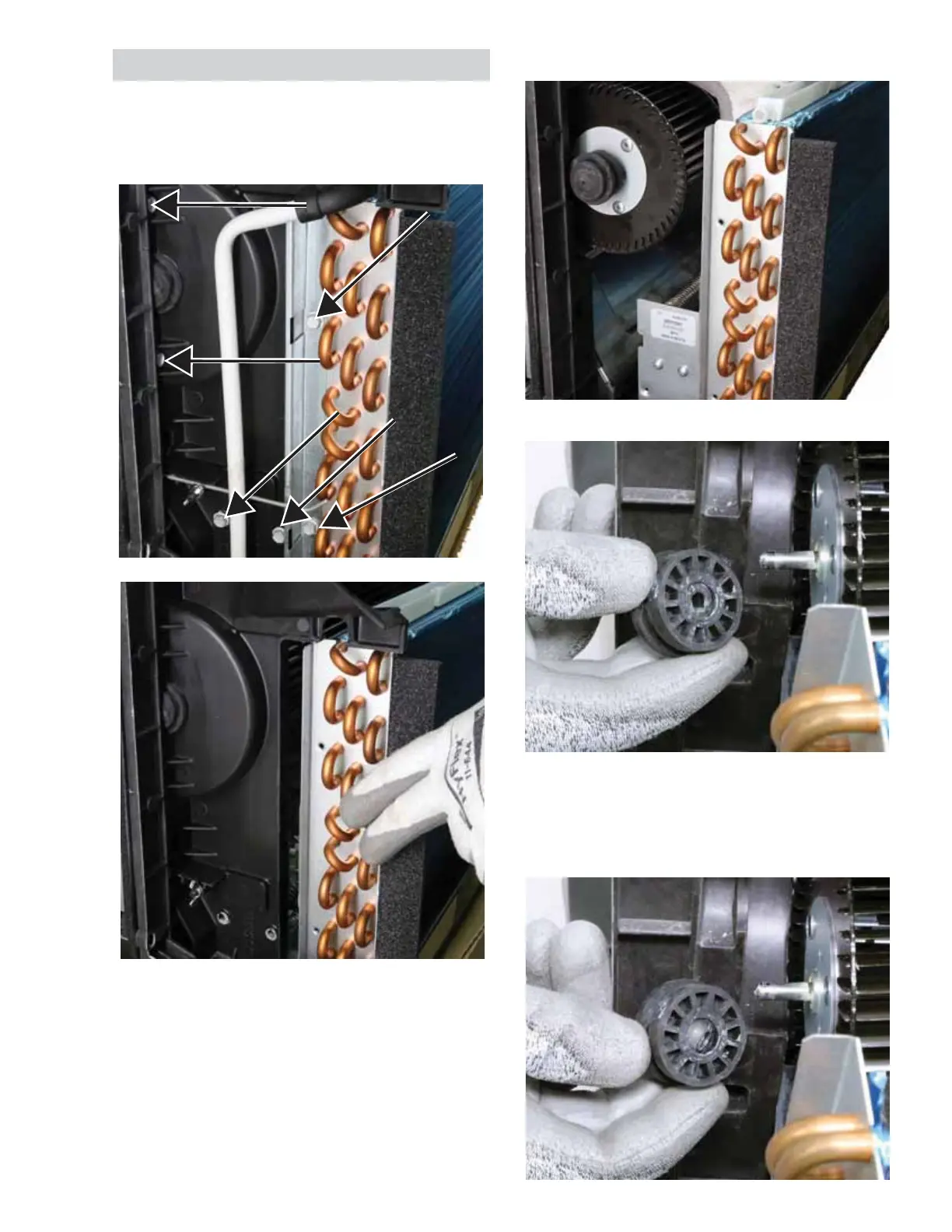

Proper Bearing Placement
NOTE: When reinstalling the bearing, ensure the
shaft goes directly into the bearing assembly. The
above image shows proper placement of the
bearing. Failure to install properly will result in a
noise complaint.
Remove six screws to remove the end cap to access
the bearing assembly. Two screws are used to
secure the bracket attached to the indoor coil and
end cap.
Indoor Fan Bearing
COMPONENTS – Indoor Fan Bearing
