GE b30 Technical Reference Manual

Frame functional description
1-27
Document no. 2044677-001

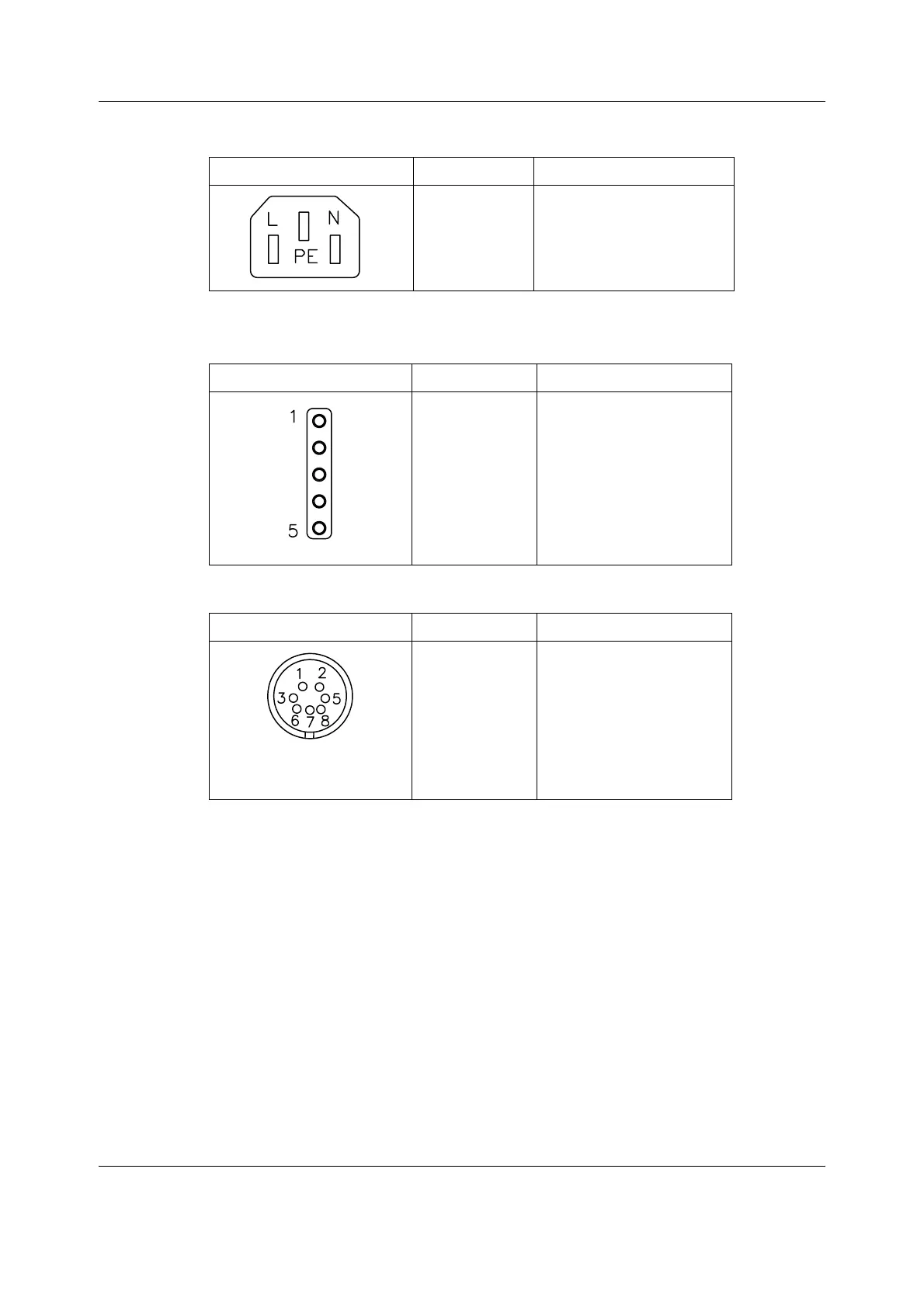

Main power X3
Module connector X4
Defib & IABP sync connector X5
DIRECT_ECG: Output signal follows first user lead (ECG1 lead) including augmented leads. If
pace is on, there is an enhanced pacer pulse (5 volts at 2 milliseconds) when pacemaker
triggering is detected.
In the event of a LEAD FAIL, refer to the following:
Lead Failed ECG Analog Out
Right arm III
Left arm II
Left leg I
Chest I
On LEADS OFF situation ECG analog output is flat line (0V).
PRESSURE_OUT: The pressure labeled ART is sent to the analog out. If no pressure is labeled
ART, P1 is sent to the analog out. Output is set to flat line (0V) if the pressure channel is not
zeroed.
Mains connector Pin Signal
L
PE
N
Live
Protected earth
Neutral
5 pin connector Pin Signal
1
2
3
4
5
GND
Vmod 13.8 - 16 V
Data +
Data -
Shield
Female mini din7 connector Pin Signal
1
2
3
5
6
7
8
Defib_sync_out
Reserved
Analog GND
Digital GND
Blood Pressure Analog out
ECG Analog out
