3300/16 Dual Vibration Monitor Operation Manual
8

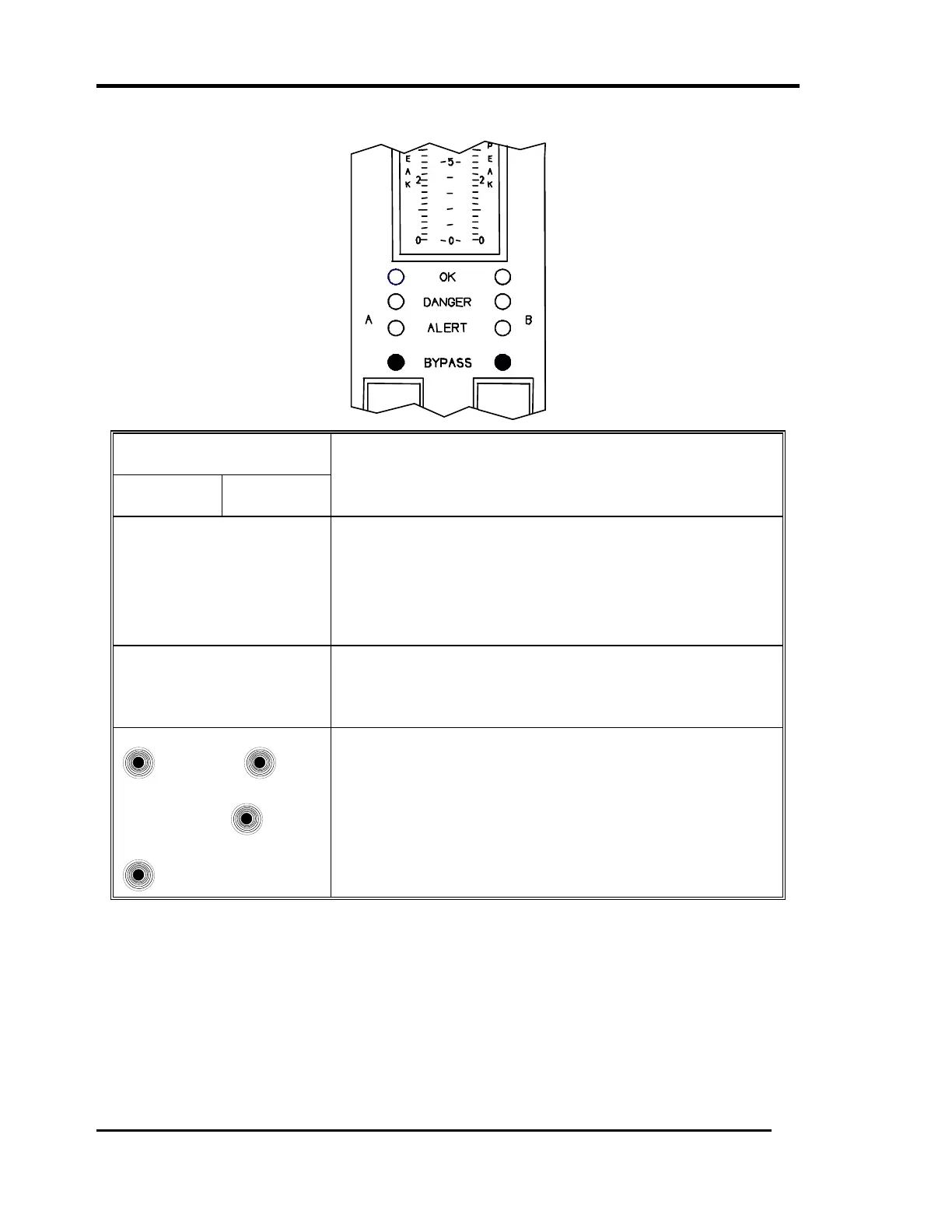

5.2 Bypass LEDs
LED Display
A B
Condition
z BYPASS z Monitor in Danger Bypass mode or System in Power-Up
mode or User-invoked self-test in progress or Timed
OK/Channel Defeat or both Channels bypassed or
Monitor has detected an active error or Rack Inhibit
Contacts at back of rack closed.
{ BYPASS z
z BYPASS {
Channel A or B bypassed or Timed OK/Channel Defeat
BYPASS
z BYPASS
BYPASS z
Trip Multiply activated Flashing overridden by:
• Timed OK/Channel Defeat or
• Channel A or B bypassed
To Next Page
