11. Meter Scale Replacement
To replace a meter scale:
1. Set the vibration full-scale range and gap full-scale range. (See Section 10, Monitor
Options)
2. Cut the selected vibration meter scale and clear adhesive backed gap scale from the
back of this manual. Be sure to cut along the marked outline so the meter scales will fit
properly.
3. Remove the backing from the clear adhesive backed gap scale.
4. Position the gap scale such that the bottom tick mark lines up with the bottom tick mark of
the vibration meter scale.

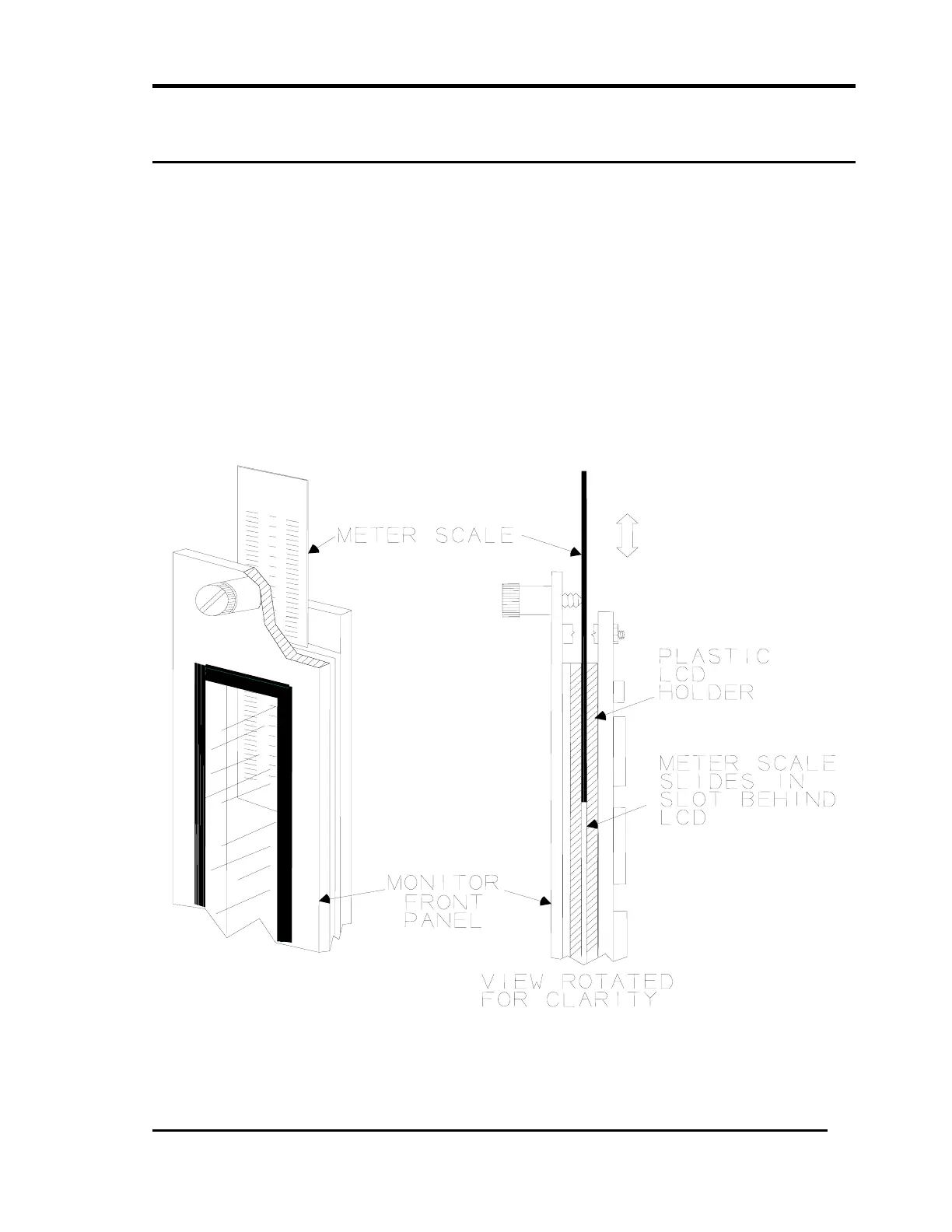

5. Remove the old meter scale from the monitor and replace it with the new one.
