Chapter 6: Spare Parts
Part Numbers

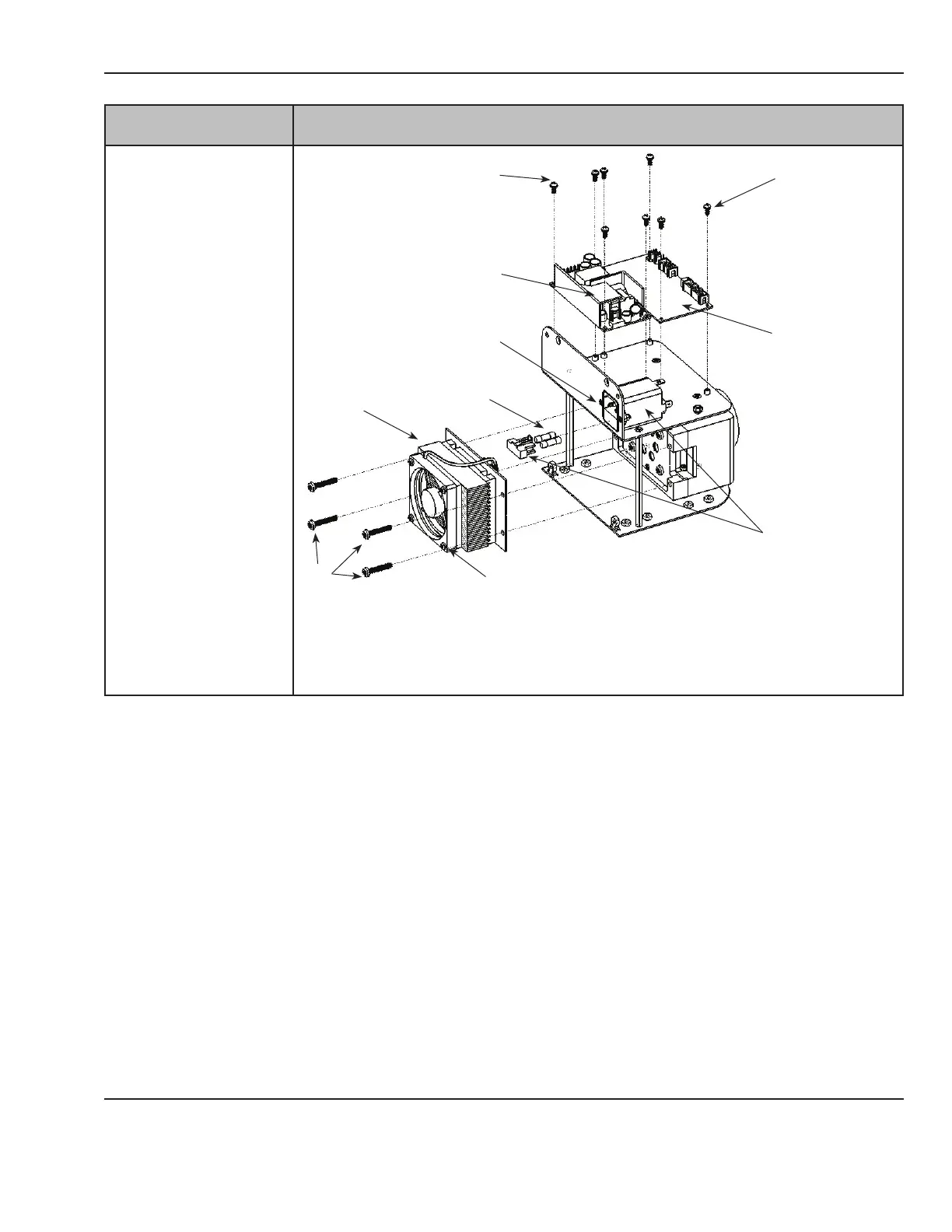

Figure 6-3
9.
LED Module Kit
M1098188
includes
item #10, heatsink
,
and LED board
10.
Fan Kit
M1098497
includes mounting
screws (4))
11.
Fuse Kit
6600-0730-
214
includes 2 fuses
(T3.15A @ 250V~,
slo-blo type)
12.
EMI Filter
M1098505
fuses sold
separately
13.
Control PCB
M1185734
*
* Refer to Note 1
after this table.
14.
Power Supply
M1098503
P (4)
13
12
11
I, J
14
K
, O (4)
9
G, N
10
Lettered har
dware kits listed at end of parts section
34
36
