Chapter 6: Spare Parts

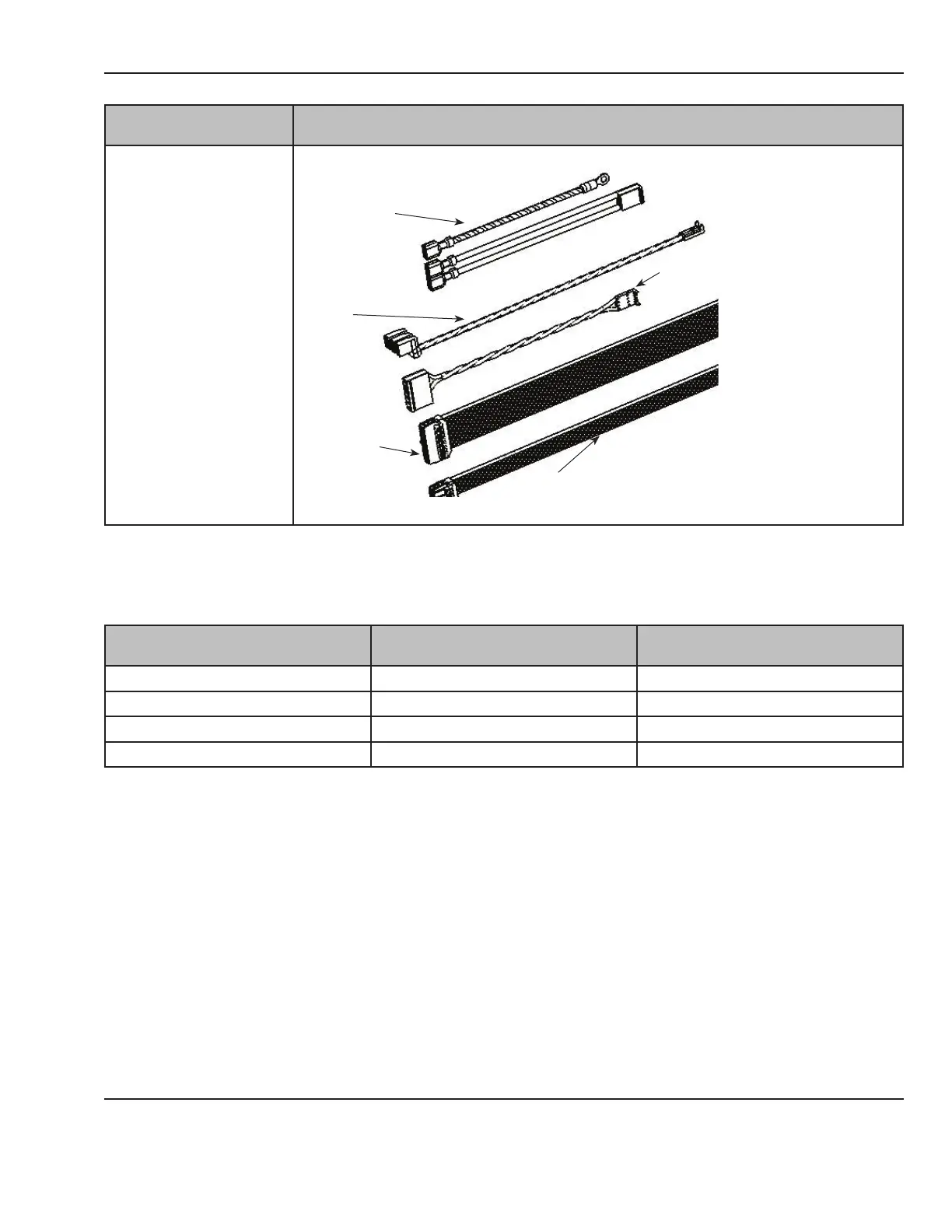

Part Numbers Figure 6-5
20. Power Supply AC
harness M1098500
21. Standby Switch
Harness M1185737*
22. Power Supply
Harness M1185736*
* Refer to Note 1
after this table.
23. LED board harness
M1098501
24. Front Panel harness
M1098502
20
21
22
24
23
NOTE 1: Service Kit Package for Control PCA
M1185738 is the Service Kit Package for Control PCA, and it contains the following parts:
Part Description Part Number Quantity
Control PCB M1185734 1
LED Shuto Switch Kit M1185735 1
Power Supply Harness M1185736 1
Standby Switch Harness M1185737 1
Bilisoft units manufactured with the new connector design can be distinguished from the old-design units
based on their serial number. That is, units with serial number equal or greater than HFAN50501 are new-
design units. Old-design units have serial numbers less than HFAN50501. If any of the four parts (M1185734,
M1185735, M1185736, M1185737) need to be replaced for any reason, replace as follows:
• For units with serial numbers less than HFAN50501, order the service kit (M1185738) to update all four
parts to the latest design.
• For units with serial number equal to or greater than HFAN50501, each part can be ordered and replaced
individually.
