22 M1110150 006 © 2007 by General Electric Company. All rights reserved.
Chapter 6: Spare Parts

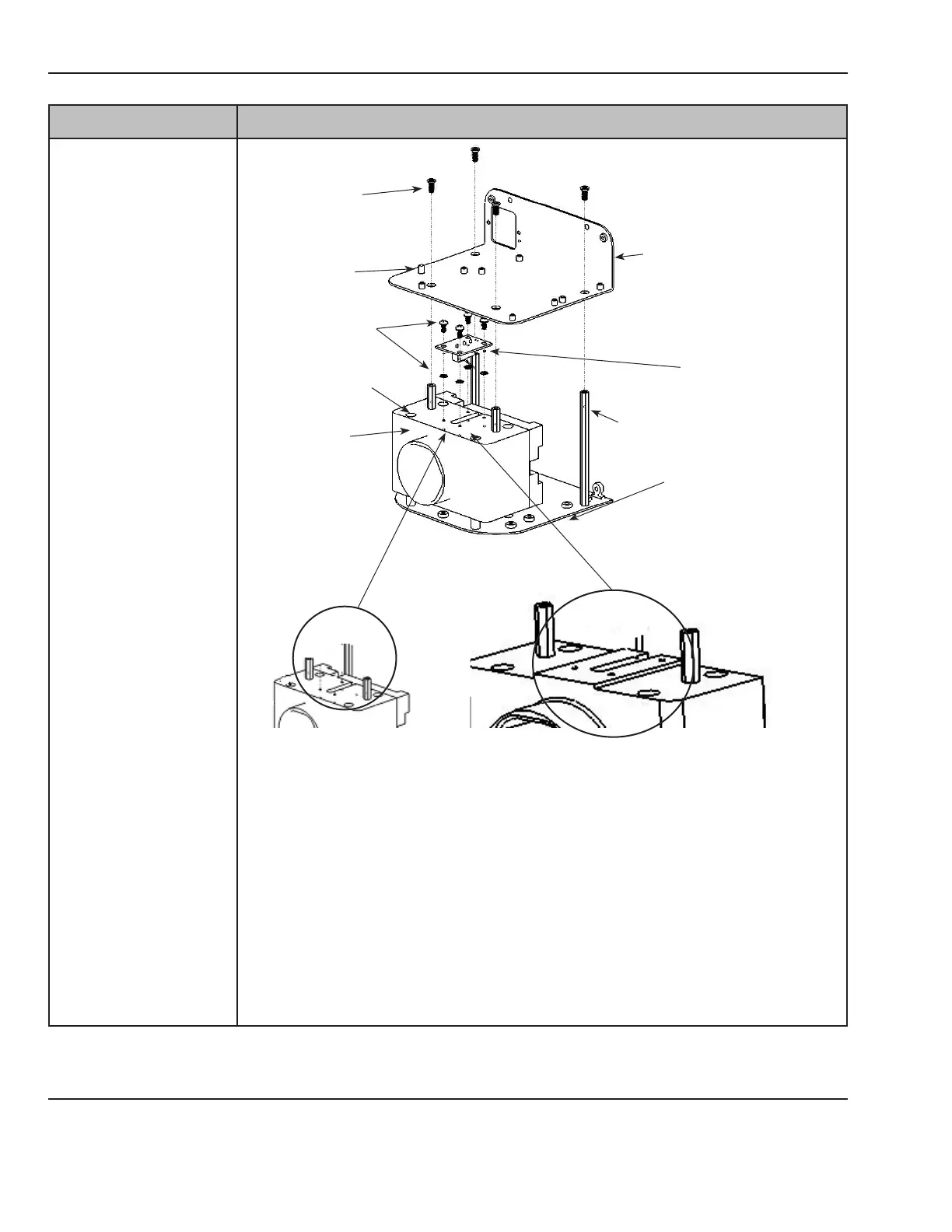

Part Numbers Figure 6-4
15. Top Plate Kit
M1110054 includes
ground label
16. LED Shuto Switch
Kit M1185735 *
* Refer to Note 1
after this table.
** For the old style
pad connector,
the external star
washers are placed
under the board
during assembly
to provide proper
clearance.
17. Stando Kit
M1120983 includes
2 large standos
and 2 small
standos
18. Pad Connector
Module M1120994
Includes Port
connector, lens,
Lens holder plate,
and magnet
19. Bottom Plate Kit
M1120993
NOTE: When
replacing the
bottom plate, the
old SN should be
written on the blank
label
Old Style Pad Connector
(units with serial number
HFAL50306 or lower)
The external star washers
(O) are placed under the
board as shown above
during assembly to provide
the proper clearance
New Style Pad Connector
(with raised switch mounting
surface)
(units with serial number
HFAL50307 or higher or if pad
connector has been replaced)
The external star washers
(O) shown above are not
needed with the new style pad
connector.
15
E (4)
D, M
H** (4), O** (4)
G (4)
18
19
17 (4)
16 (note proper
switch orientation)
Lettered hardware kits listed at end of parts section
NOTE: Standos on
the port connector
module may be
a molded part on
newer units.
