4-14 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
ENERVISTA SOFTWARE INTERFACE CHAPTER 4: INTERFACES
4
This information is also available in printed settings file reports as shown in the example. A report is generated by right-
clicking and selecting the Print Settings option.

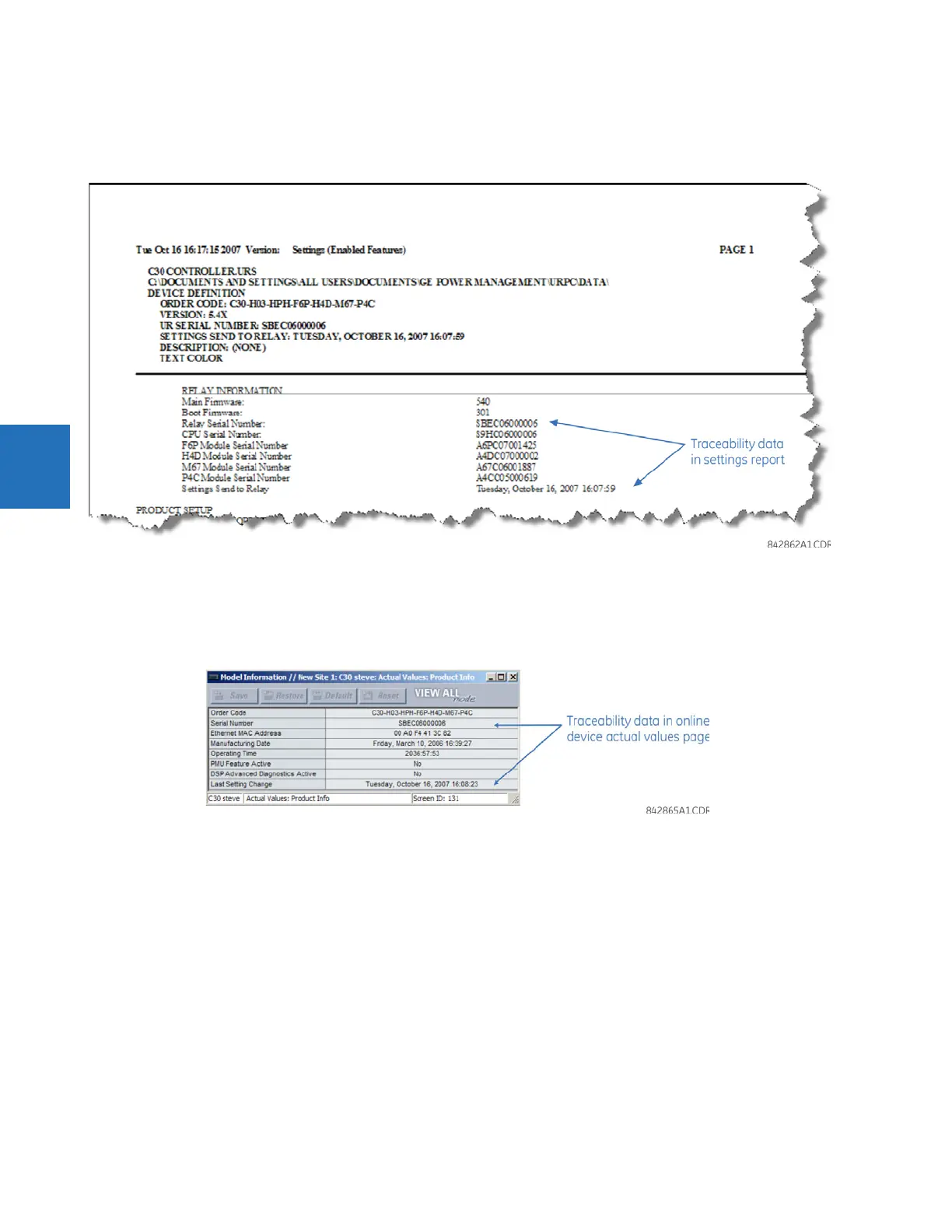

Figure 4-15: Settings file report showing traceability data
4.1.9.2 Online device traceability information
The D30 serial number and file transfer date are available for an online device through the actual values. Select the Actual
Values > Product Info > Model Information menu item within the EnerVista online window as shown in the example.
Figure 4-16: Traceability data in Actual Values window
This information is also available from the front panel display through the following actual values:
ACTUAL VALUES  PRODUCT INFO  MODEL INFORMATION  SERIAL NUMBER
ACTUAL VALUES  PRODUCT INFO  MODEL INFORMATION  LAST SETTING CHANGE
4.1.9.3 Additional traceability rules
The following additional rules apply for the traceability feature:
• If the user changes any settings within the settings file in the offline window, then the traceability information is
removed from the settings file
• If the user creates a new settings file, then no traceability information is included in the settings file
• If the user converts an existing settings file to another revision, then any existing traceability information is removed
from the settings file
• If the user duplicates an existing settings file, then any traceability information is transferred to the duplicate settings
file
