GE D30

CHAPTER 3: INSTALLATION WIRING
D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 3-33
3
3.3.9 CPU communication ports
3.3.9.1 Overview
There is a rear RS485 communication port on the CPU module. The CPU module does not require a surge ground
connection.

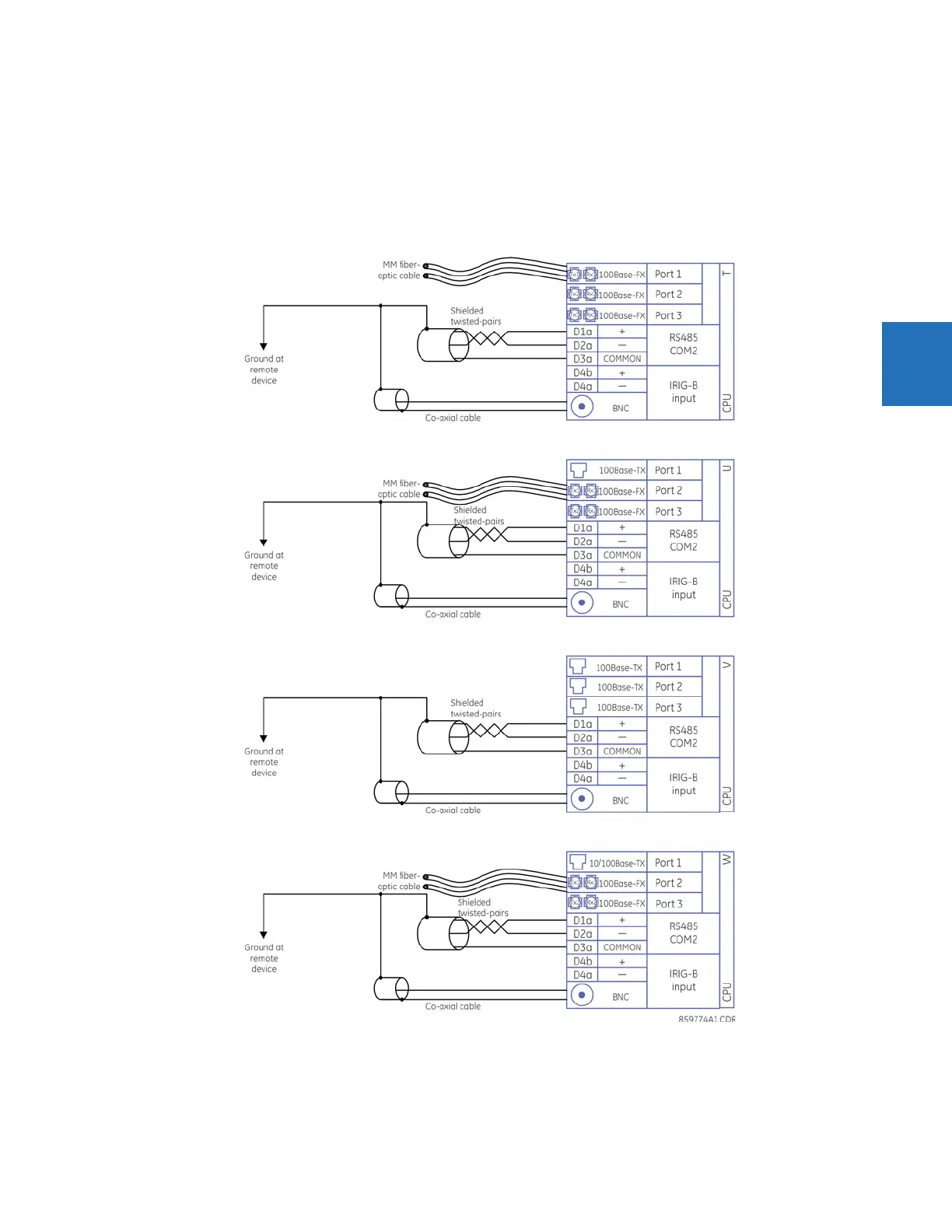

Figure 3-31: CPU module communications wiring
