5-146 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
SYSTEM SETUP CHAPTER 5: SETTINGS
5

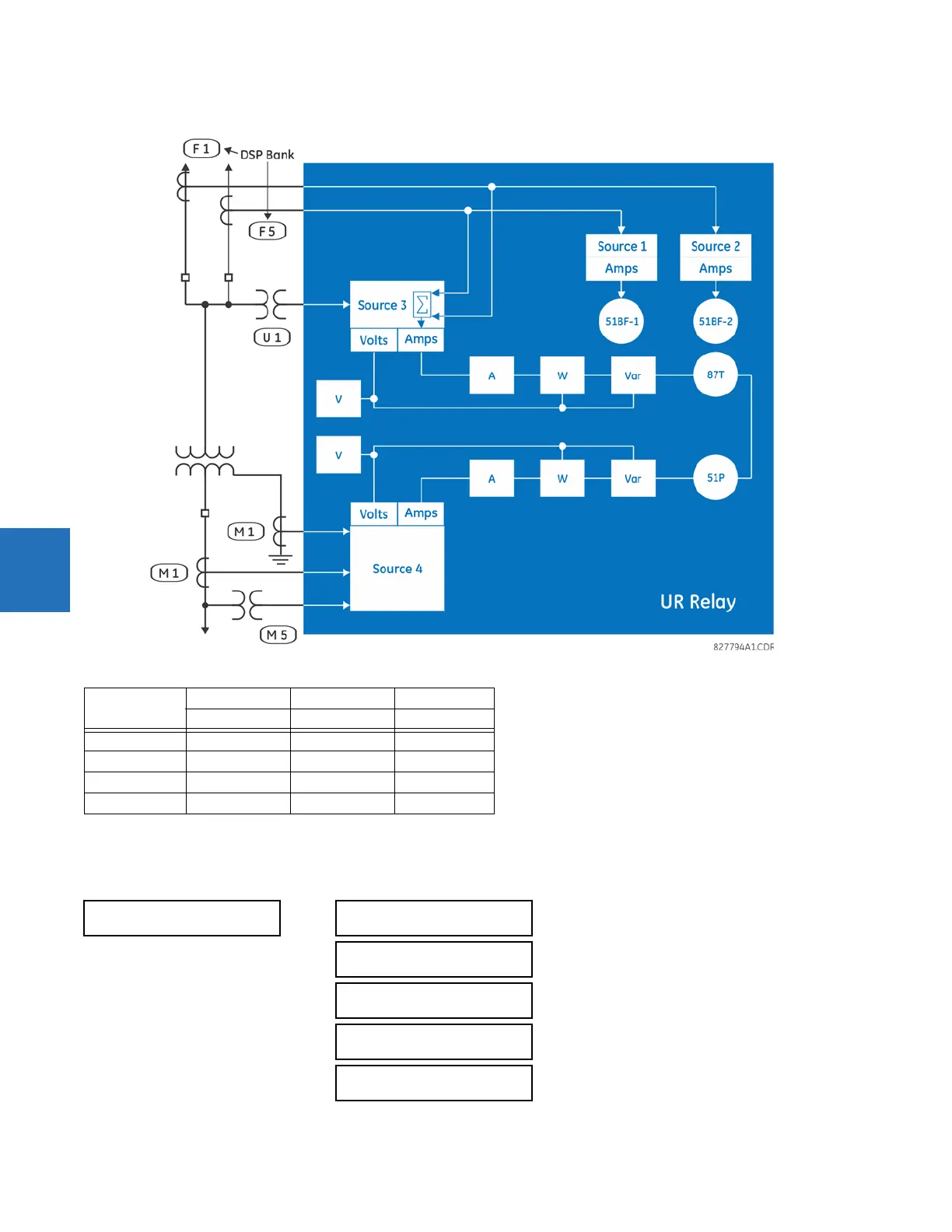

Figure 5-67: Example of use of sources
5.5.4 Breakers
SETTINGS  SYSTEM SETUP  BREAKERS  BREAKER 1(2)
Y LV D HV AUX
SRC 1 SRC 2 SRC 3
Phase CT M1 F1+F5 None
Ground CT M1 None None
Phase VT M5 None None
Aux VT None None U1
 BREAKER 1


BREAKER 1
FUNCTION: Disabled
Range: Disabled, Enabled

BREAKER1 PUSH BUTTON
CONTROL: Disabled
Range: Disabled, Enabled

BREAKER 1 TAGGING:
Disabled
Range: Disabled, Enabled

BREAKER 1
SUBSTITUTN: Disabled
Range: Disabled, Enabled

BREAKER 1 BYPASS:
Disabled
Range: Disabled, Enabled
