4-16 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
FRONT PANEL INTERFACE CHAPTER 4: INTERFACES
4

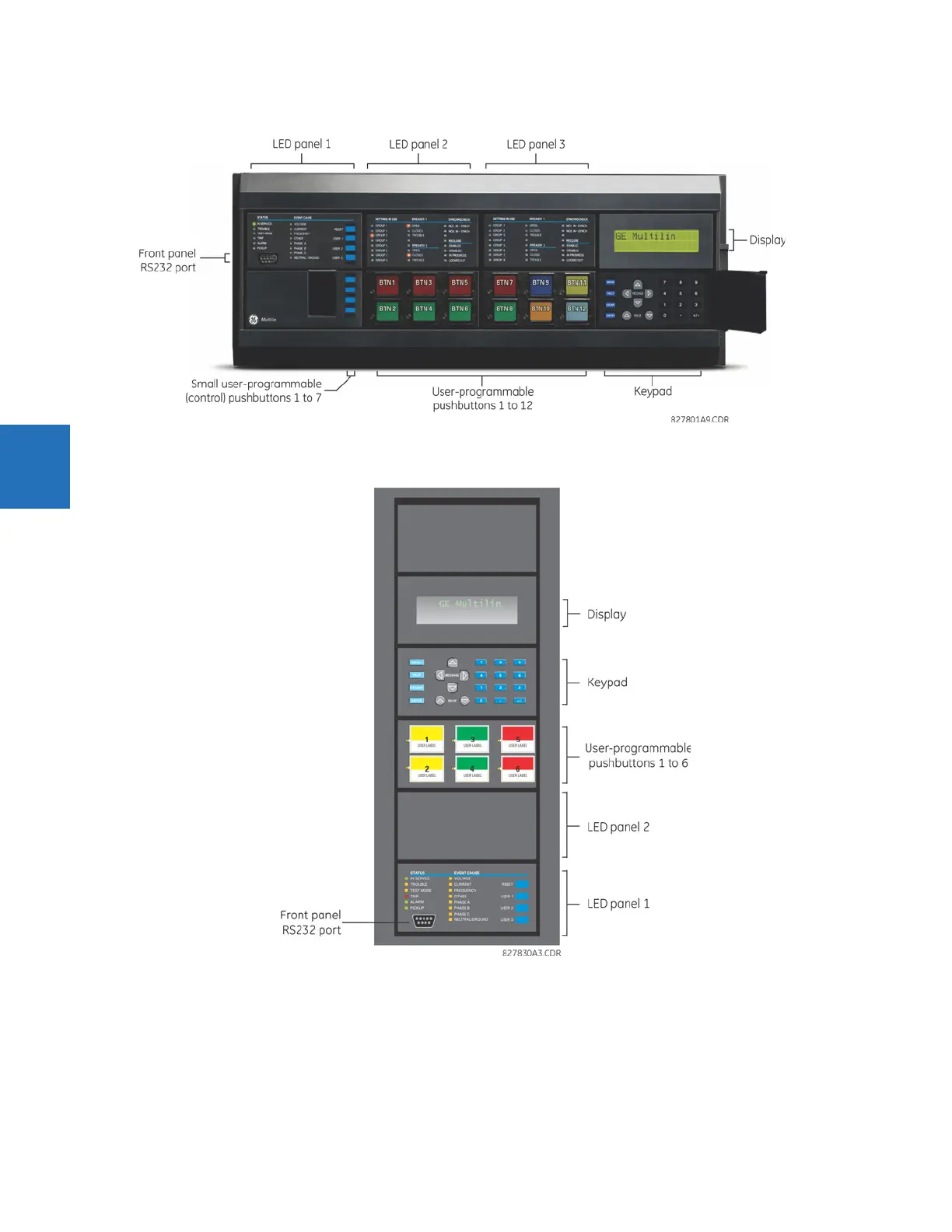

Figure 4-18: Standard horizontal front panel
The following figure shows the vertical front panel for relays ordered with the vertical option.
Figure 4-19: Standard vertical front panel
4.2.1.3 Graphical front panel
The graphical front panel consists of a USB port, LED panel, color screen display, user-programmable pushbuttons, and
navigation keys. The screen is used to read data, such as metering actual values, alarms, self-test messages, and event
records, and for viewing single-line diagrams. Settings can be changed on the front panel, except for the graphical front
panel itself and for IEC 61850. The USB port connects to a computer with the EnerVista software and can be used to
upgrade the relay and to transfer files and settings. The USB port is the square type B.
