4-82 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
FLEXLOGIC DESIGN USING ENGINEER CHAPTER 4: INTERFACES
4
I/O Tokens

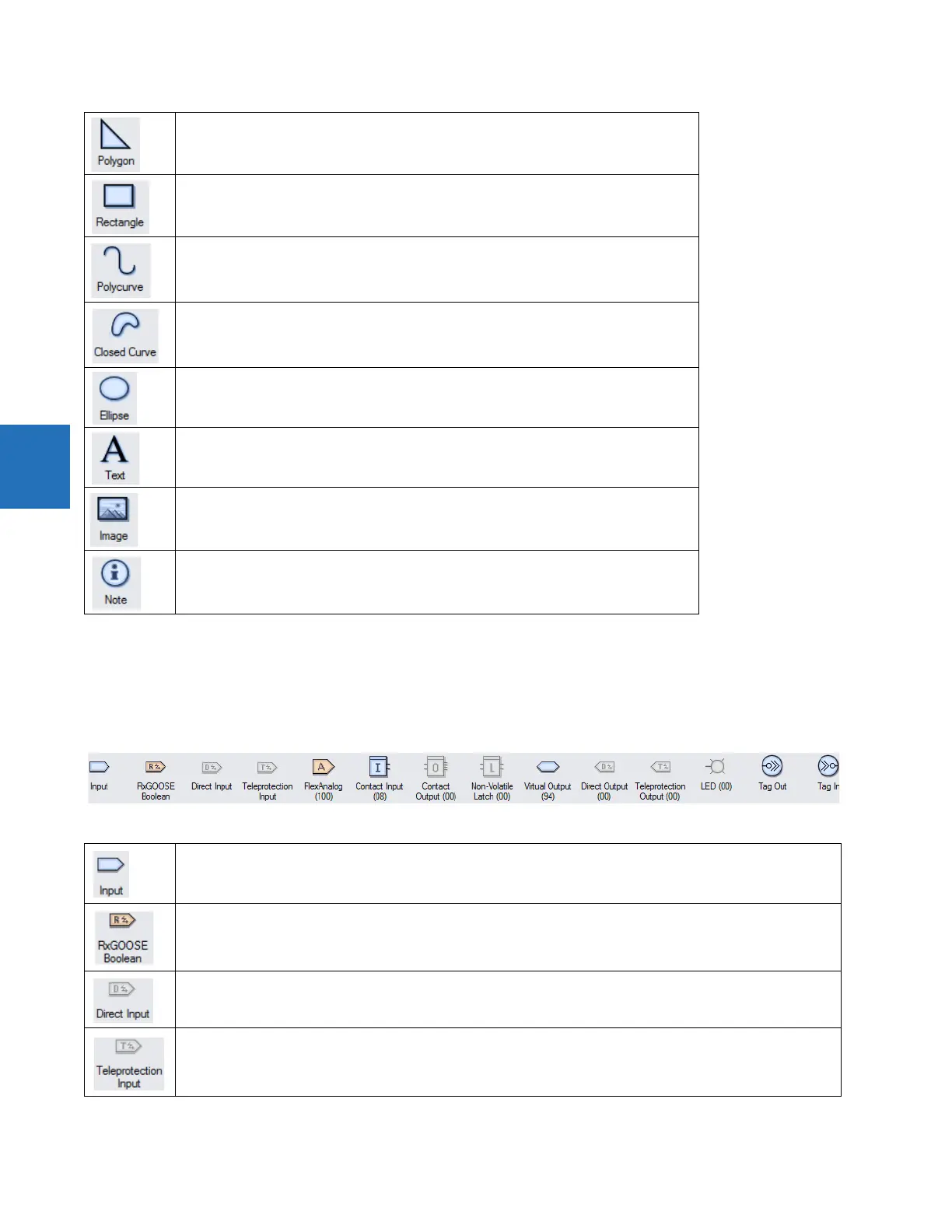

These are parts used in FlexLogic equations. They are the inputs and outputs of the Virtual Output equations. The display
can vary from that shown here.
Draw multi-sided object. Click for each line. Double-click to finish.
Draw four-sided object. Click and drag to draw.
Draw multiple curves. Click for each line. Double-click to finish.
Draw multiple, closed curves. Click for each line. Double-click to finish.
Draw oval or circle. Click and drag to draw.
Add text box with rectangle around it. Click to add. Double-click it to change text.
Add figure. Select file in the window that opens, then click on diagram canvas to add figure.
Add note icon and text. Click to add. Double-click to edit the title and text.
Input symbol that can be configured to any FlexLogic operand value
Remote inputs from other devices
Input from another UR device. Teleprotection inputs/outputs and direct inputs/outputs are mutually exclusive and
cannot be used simultaneously.
Teleprotection inputs/outputs and direct inputs/outputs are mutually exclusive and cannot be used simultaneously.
