4-86 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
FLEXLOGIC DESIGN USING ENGINEER CHAPTER 4: INTERFACES
4

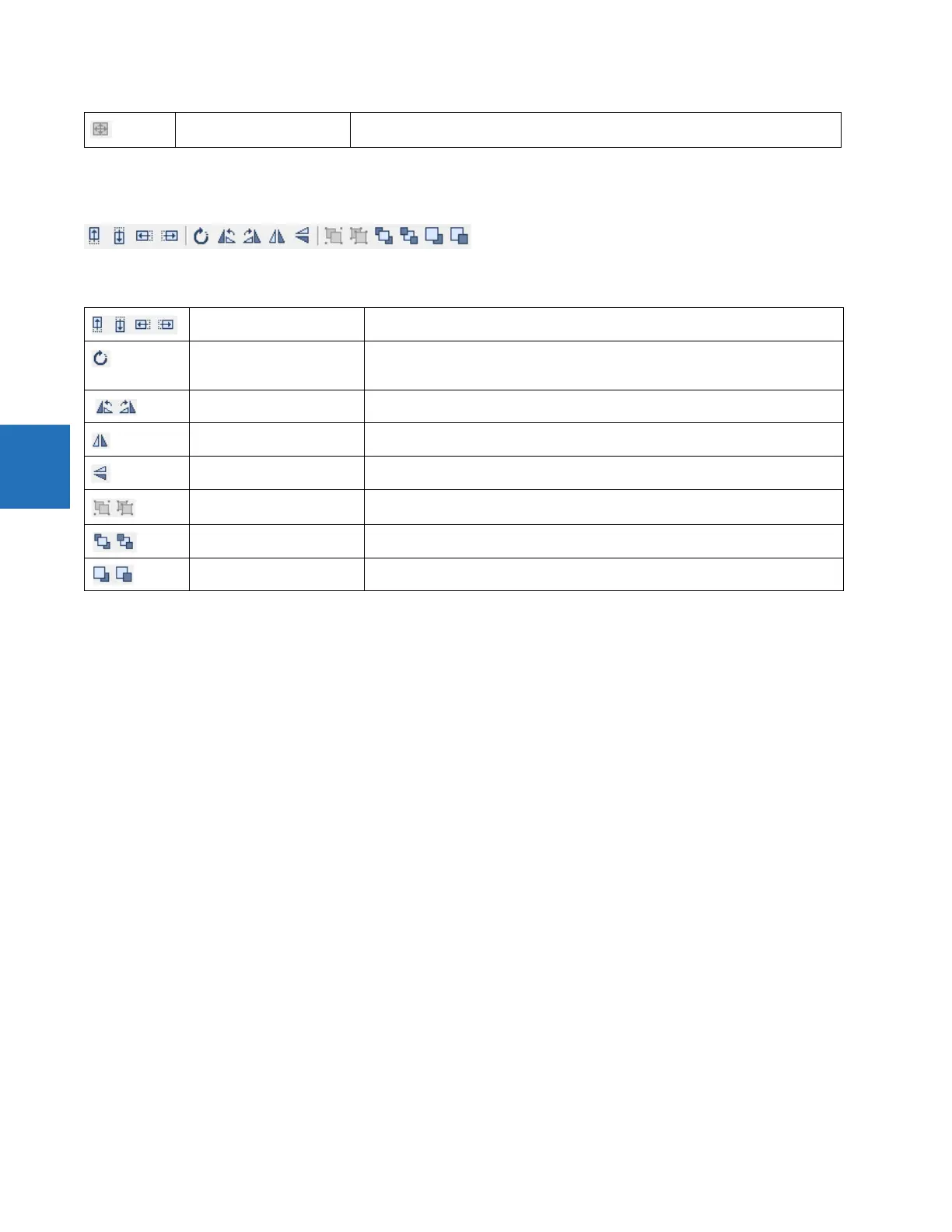

4.4.7.4 Advanced Actions toolbar
Only basic objects (lines, rectangles, ellipses) can be rotated and flipped.
Only objects from the Drawing Toolbar can be structured (grouped, ungrouped, forward, backward).
Same Size Set the width and height of the selected components to the same width and height of
the reference component
Nudge Up, Down, Left, Right Moves selected component one pixel upward, downward, left, right
Rotate Rotates selected component freely. Once selected, put your mouse cursor over the
component and move the component clockwise or counter-clockwise depending on
what you need.
Rotate Left, Right Rotates selected component 90 degrees counter-clockwise or clockwise
Flip Vertical Flips the selected component on the vertical axis
Flip Horizontal Flips the selected component on the horizontal axis
Group, Ungroup Combines all selected components into one combined entity. Ungroups them into
separate components.
Front, Back Moves current components to the absolute front or back of all viewable layers
Forward, Backward Moves current components on layer higher or lower than its original layer hierarchy
