5-28 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
PRODUCT SETUP CHAPTER 5: SETTINGS
5
5.3.3.1 Home page
This window sets the home page displayed on the graphical front panel and the date and time formats for all pages. Home
page options include display of product information, alarms, actual values, and event records.
The path is Settings > Product Setup > Graphical Panel > Home Page. The menu does not display when there is no
graphical front panel.

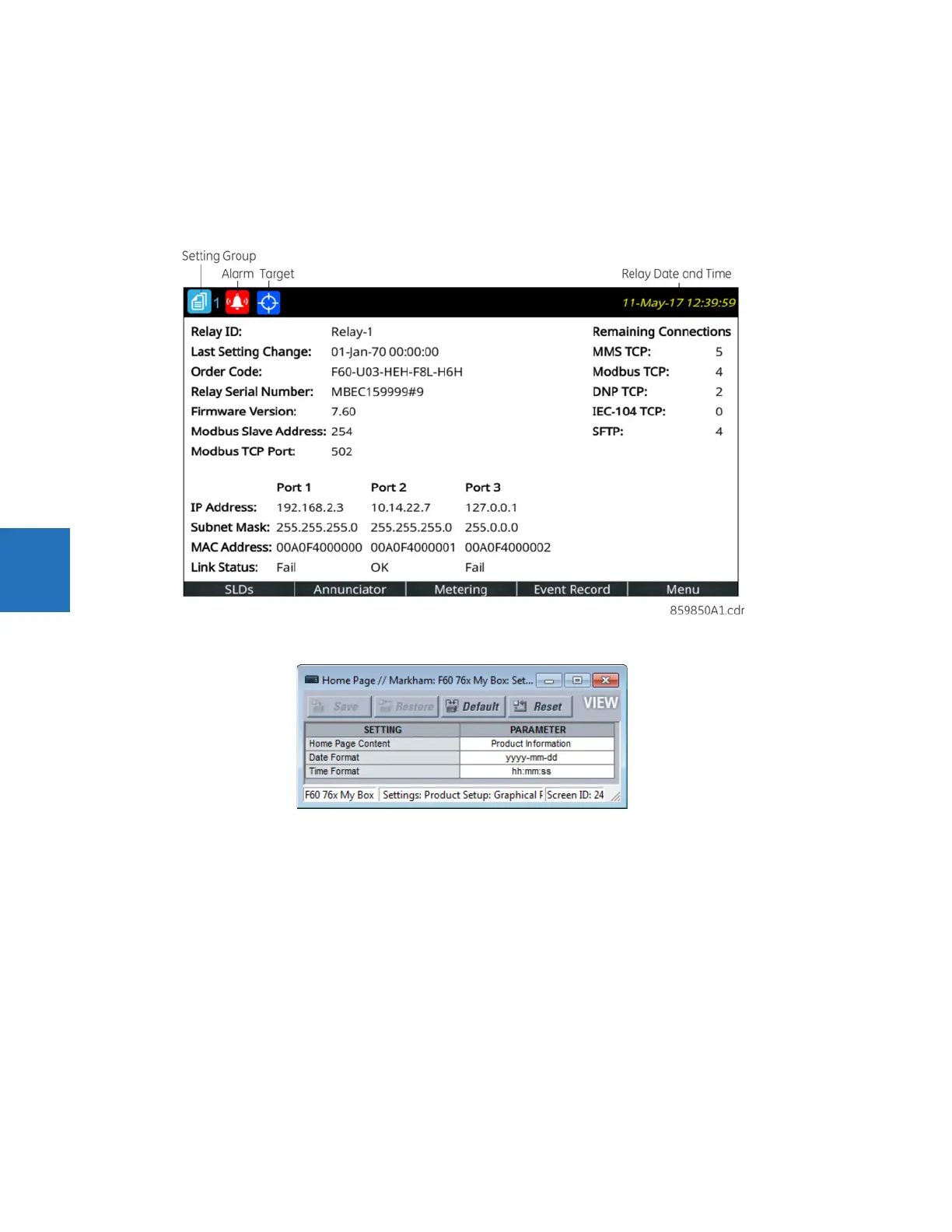

Figure 5-5: Home page with product information
Figure 5-6: Home page settings
Home Page Content
Range: Product Information, SLD 1…5, Annunciator, Annunciator 1…8, Phasors 1…6, Tabular 1…5, Event Records, Targets
Default: Product Information
This setting specifies the page to display between the home page header and footer. Pressing the Home button returns
the display to this page. The home page displays for the rolling mode delay specified, then changes to the rolling mode
pages.
The "Annunciator" option without a page number specifies the first annunciator page in the following sequence:
– The first annunciator page that contains an annunciator window that is in alarm (fast flash)
– The first annunciator page that contains an annunciator window that is in ringback. Ringback is a "return alert."
Visual and audible signals are given when conditions return to normal, then the sequence returns to normal by
pushing the RESET button.
– The first annunciator page that contains an annunciator window that is in abnormal state
– Annunciator page 1
