GE D30

CHAPTER 5: SETTINGS GROUPED ELEMENTS
D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 5-227
5
TD MULTIPLIER — Specifies a multiple of the base curve shape specified by the CURVE setting. Programming this value to
zero results in an instantaneous response to all current levels above pickup.
RESET — The “Instantaneous” reset method is intended for applications with other relays, such as most static relays, which
set the energy capacity directly to zero when the current falls below the reset threshold. The “Timed” reset method can be
used where the relay must coordinate with electromechanical relays.
VOLTAGE RESTRAINT — Enables and disables the phase time overcurrent voltage restraint feature.
BLOCK A — Assertion of the operand assigned to this setting blocks phase A of the phase time overcurrent element.
EVENTS — Enables and disables the logging of phase time overcurrent events in the sequence of events recorder.

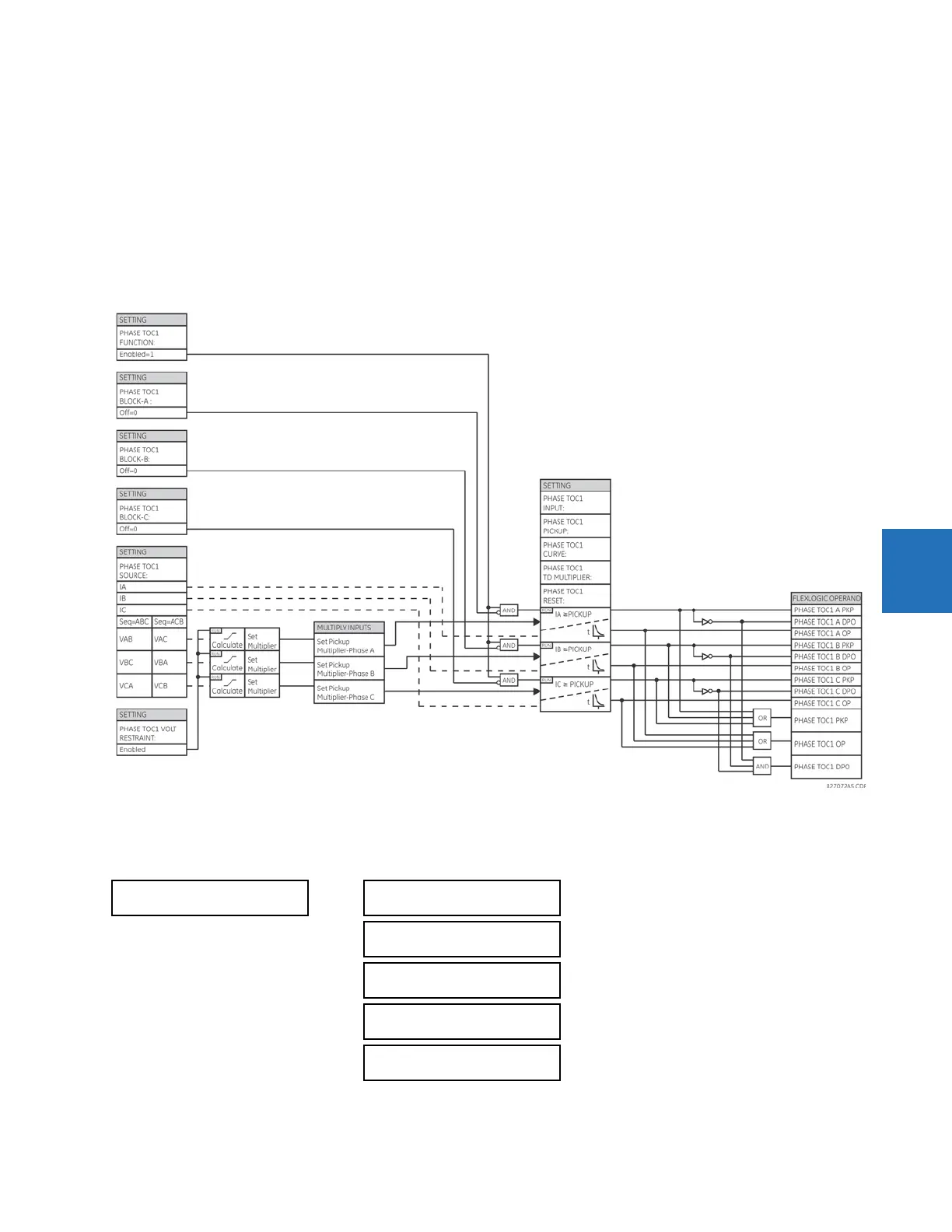

Figure 5-125: Phase time overcurrent 1 logic
5.7.7.4 Phase instantaneous overcurrent (ANSI 50P, IEC PIOC)
SETTINGS  GROUPED ELEMENTS  SETTING GROUP 1(6)  PHASE CURRENT  PHASE IOC 1(2)
 PHASE IOC 1


PHASE IOC1
FUNCTION: Disabled
Range: Disabled, Enabled

PHASE IOC1 SIGNAL
SOURCE: SRC 1
Range: SRC 1, SRC 2

PHASE IOC1
PICKUP: 1.000 pu
Range: 0.005 to 30.000 pu in steps of 0.001

PHASE IOC1 PICKUP
DELAY: 0.00 s
Range: 0.00 to 600.00 s in steps of 0.01

PHASE IOC1 RESET
DELAY: 0.00 s
Range: 0.00 to 600.00 s in steps of 0.01
