5-242 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
GROUPED ELEMENTS CHAPTER 5: SETTINGS
5

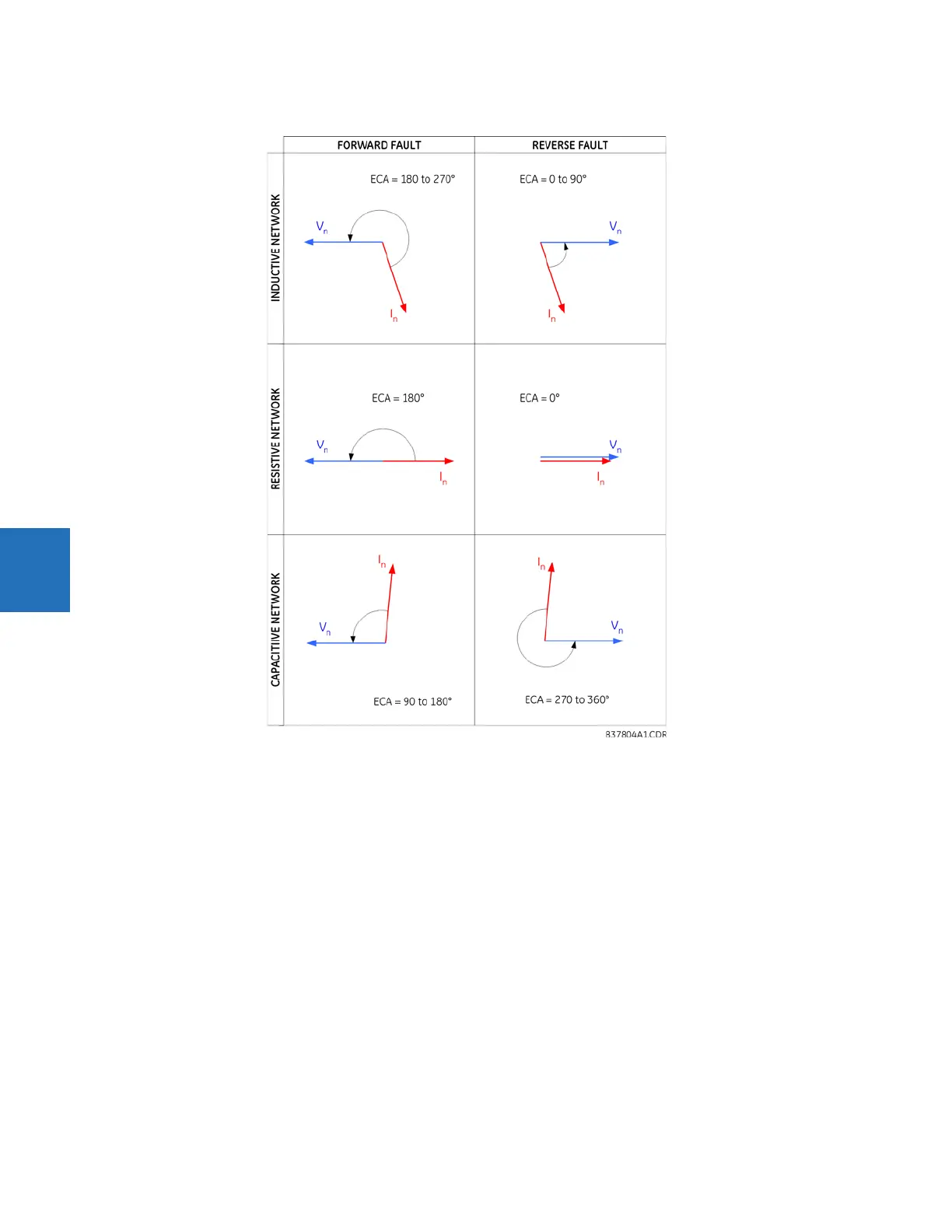

Figure 5-133: Wattmetric characteristic angle response
WATTMETRIC GND FLT 1 MULTIPLIER — This setting is applicable if the WATTMETRIC GND FLT 1 CURVE is set to Inverse and
defines the multiplier factor for the inverse time delay.
