10-20 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
REPLACE FRONT PANEL CHAPTER 10: MAINTENANCE
10

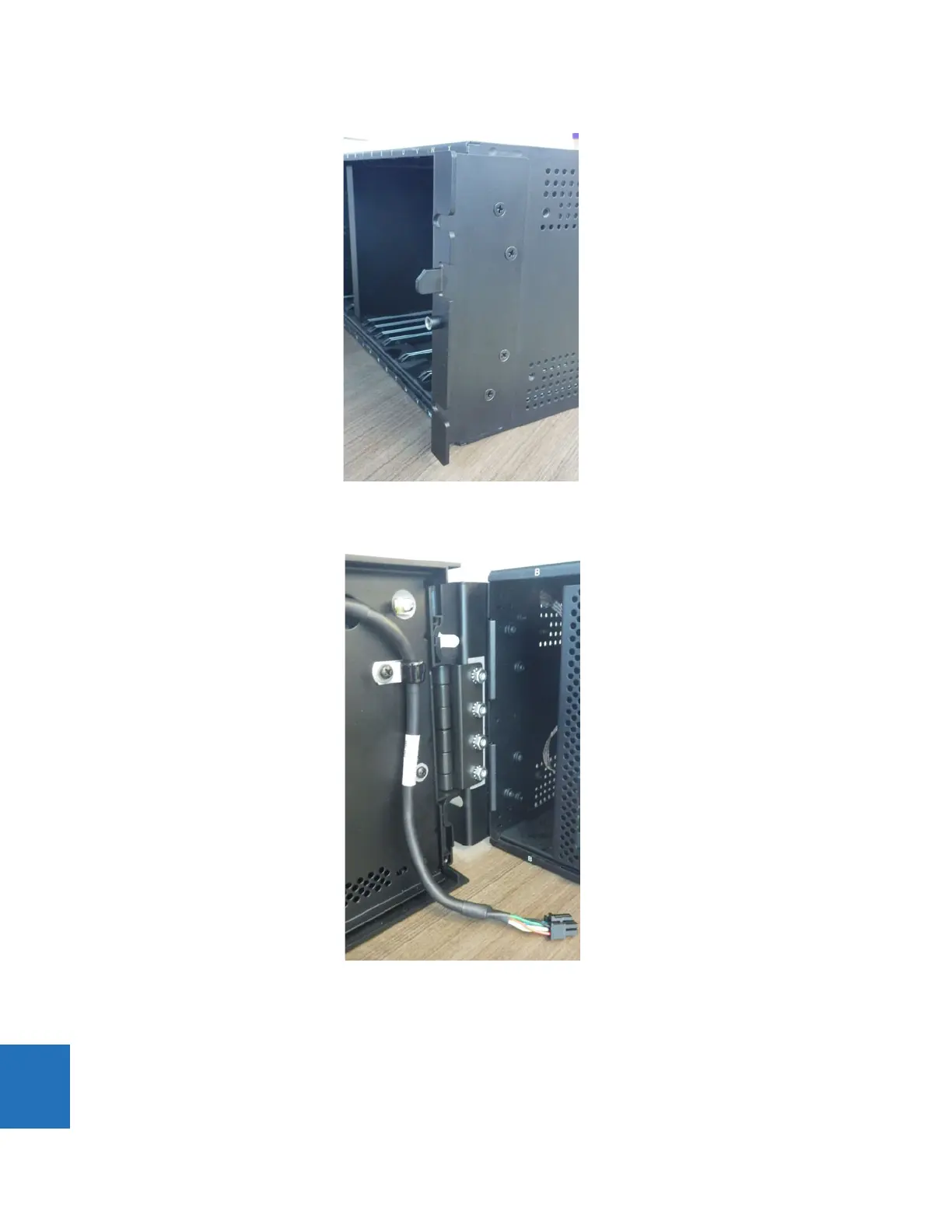

Figure 10-20: Attach mounting bracket to relay on right side
3. Attach the graphical front panel hinge to the left mounting bracket using the nuts provided.
Figure 10-21: Attach to left mounting bracket inside relay
4. Close the front panel without tightening the screw to the mounting bracket.
5. Optionally remove the protective plastic film on the graphical front panel. It is normally peeled off, but also can be left
on.
The graphical front panel has been installed but not connected.
