GE D30

CHAPTER 3: INSTALLATION WIRING
D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 3-31
3

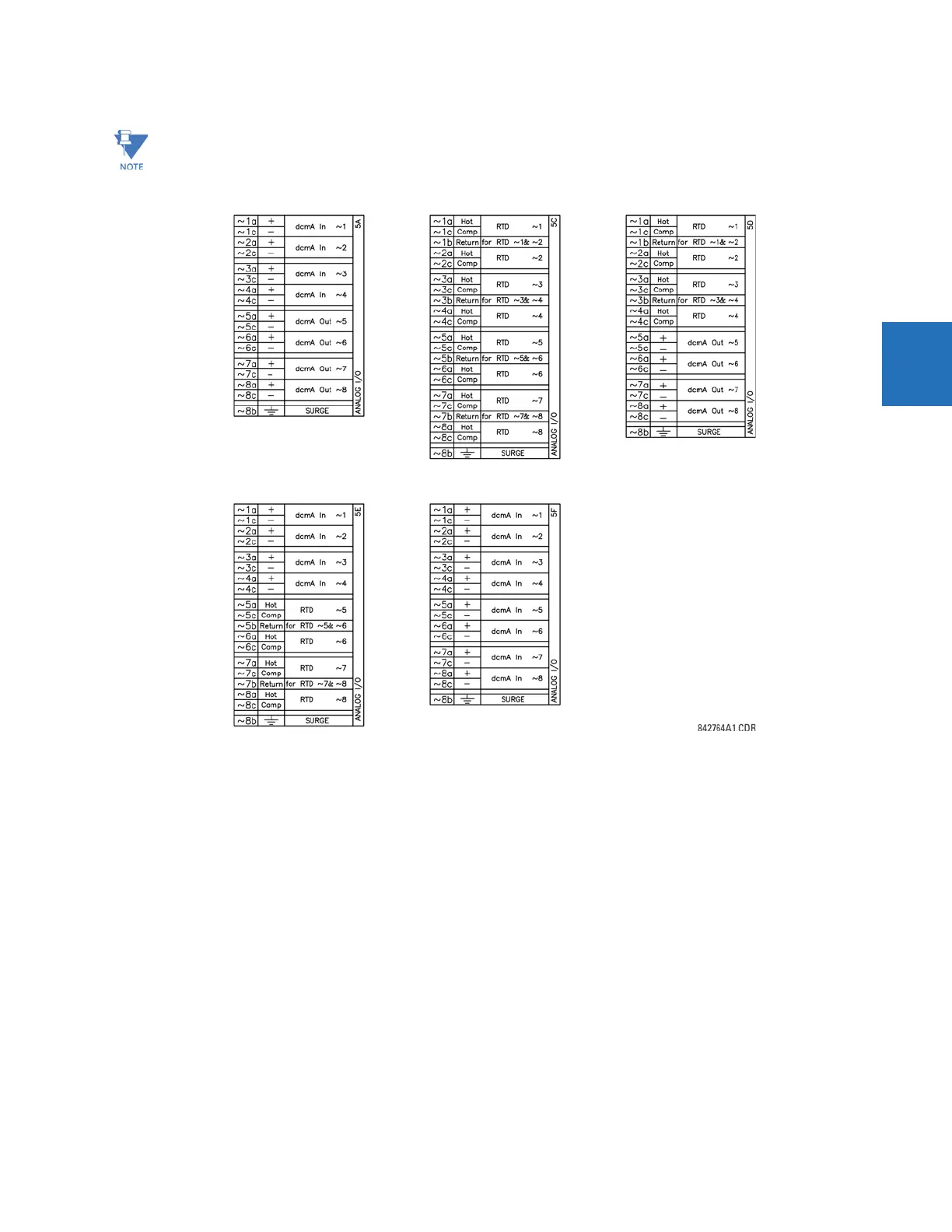

Figure 3-28: Transducer input/output module wiring
The following figure show how to connect RTDs.
Where a tilde “~” symbol appears, substitute the slot position of the module.
