Field replaceable units: Replace main unit parts
7-36 Dash 3000/4000/5000 2000966-542D

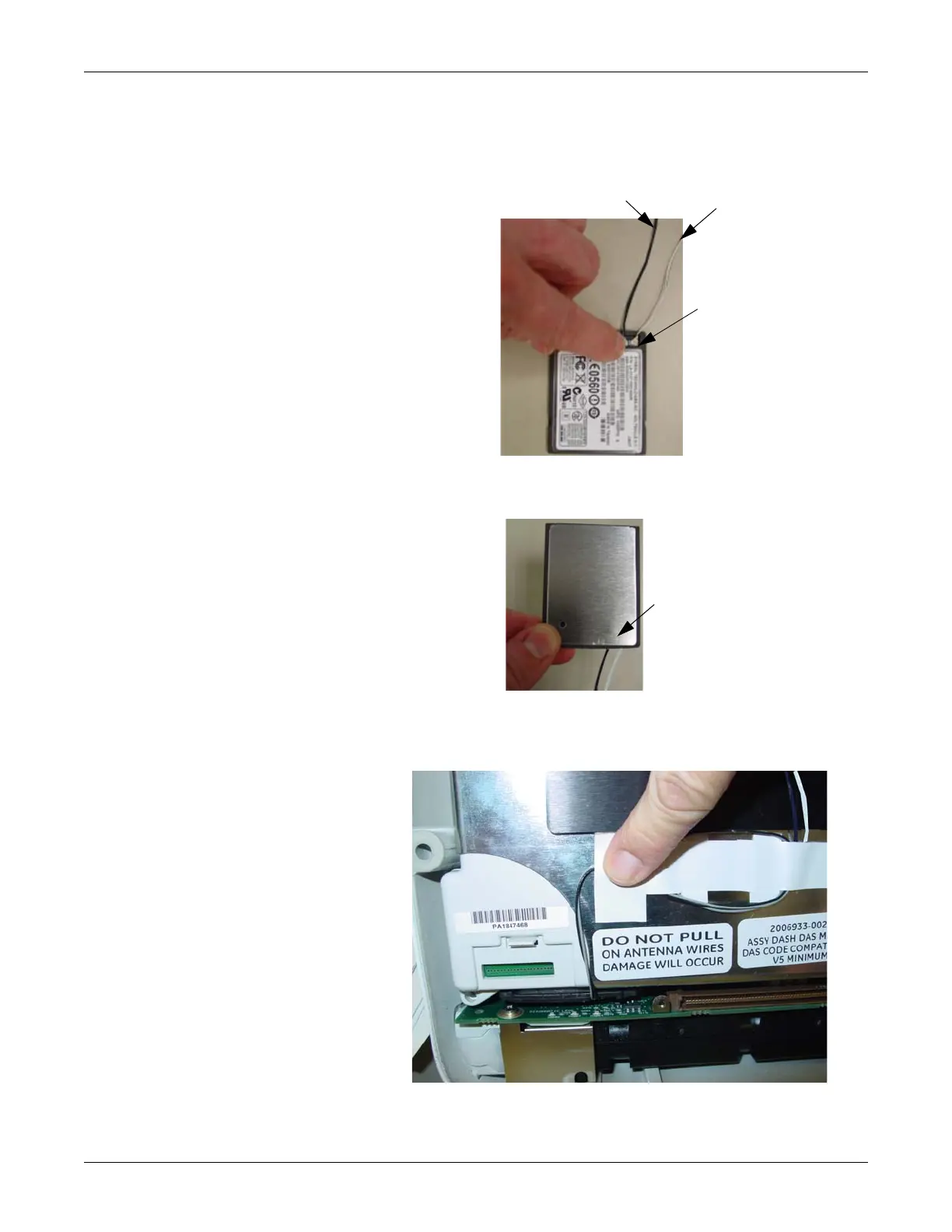

6. Reconnect the antennas connectors to the replacement wireless card.
The black antenna cable connects to the connector on the left and the
grey antenna cable on the right.
7. Reinsert the wireless card into the PC card bracket.
8. Re-secure the antenna cables underneath the antenna label as
shown.
Black antenna cable (left)
Grey antenna cable
(right)
Antenna connectors
959C
975B
Insert
wireless card
with antenna
connectors
facing down
