OPM_SGS_ISG_10K_40K_0US_V010.doc 25/45 Installation Guide SG Series 10, 20, 30 & 40 kVA
SG Series 10 & 20 kVA
How to access the terminals for the cable connections.
A
C
B
Bottom entr
cables
Top entry cables
SGT5000_010-020_UPS connection_01US
D

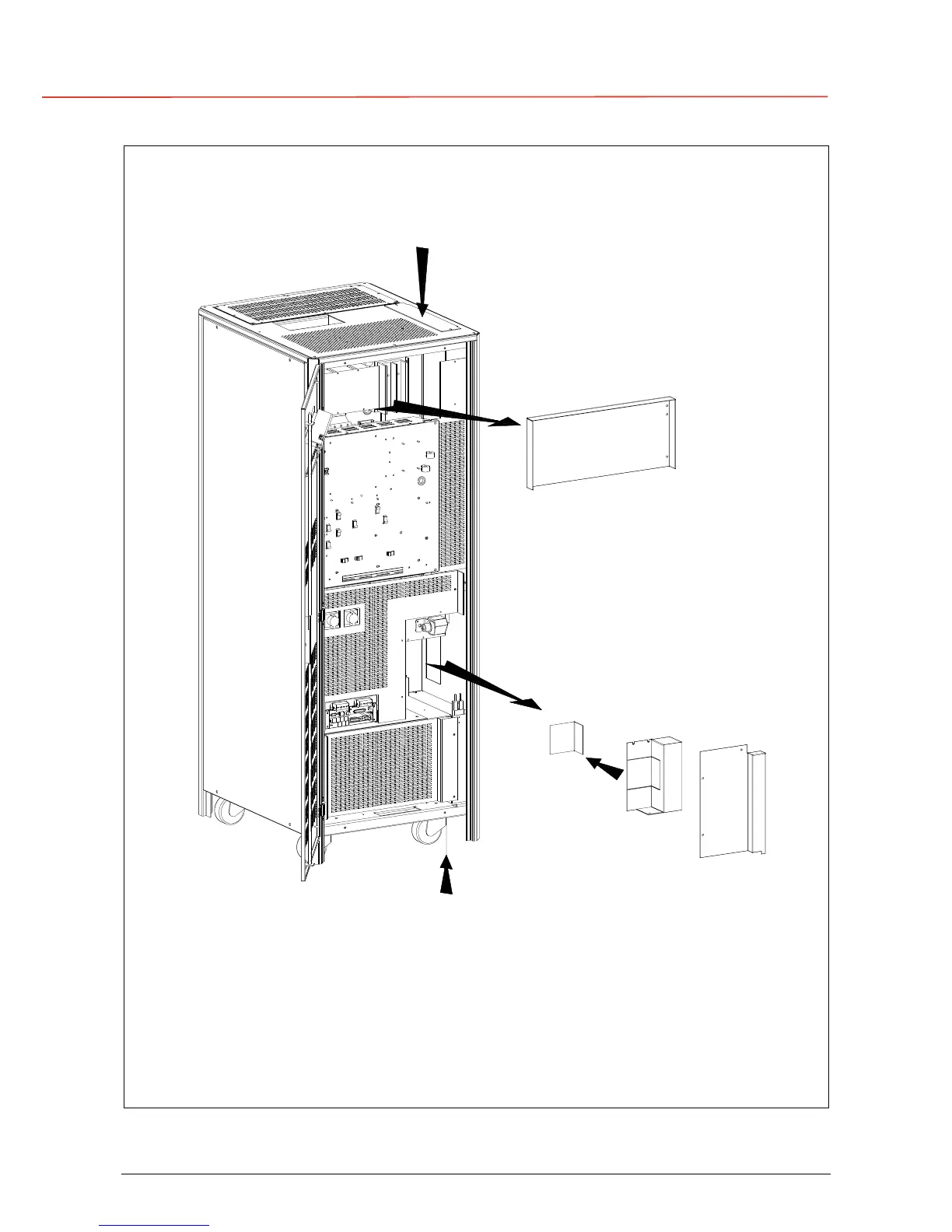

Fig. 3.8.1-1 Access to the input / output connections of SG Series 10 and 20 kVA
To access input, output and Battery connections proceed as follows:
• Remove protection panel “A”.
• Remove protection panel “B”.
• Remove UPS side panel “C”.
• Only from Separate Input Utility:
Remove with appropriate tool the metallic window “D” from the metal screen “C”.
