OPM_SGS_ISG_10K_40K_0US_V010.doc 26/45 Installation Guide SG Series 10, 20, 30 & 40 kVA
SG Series 30 & 40 kVA
How to access the terminals for the cable connections.
D
Bottom entr
cables
Top entry cables
SGT5000_030-040_UPS connection_01US
A
B
C

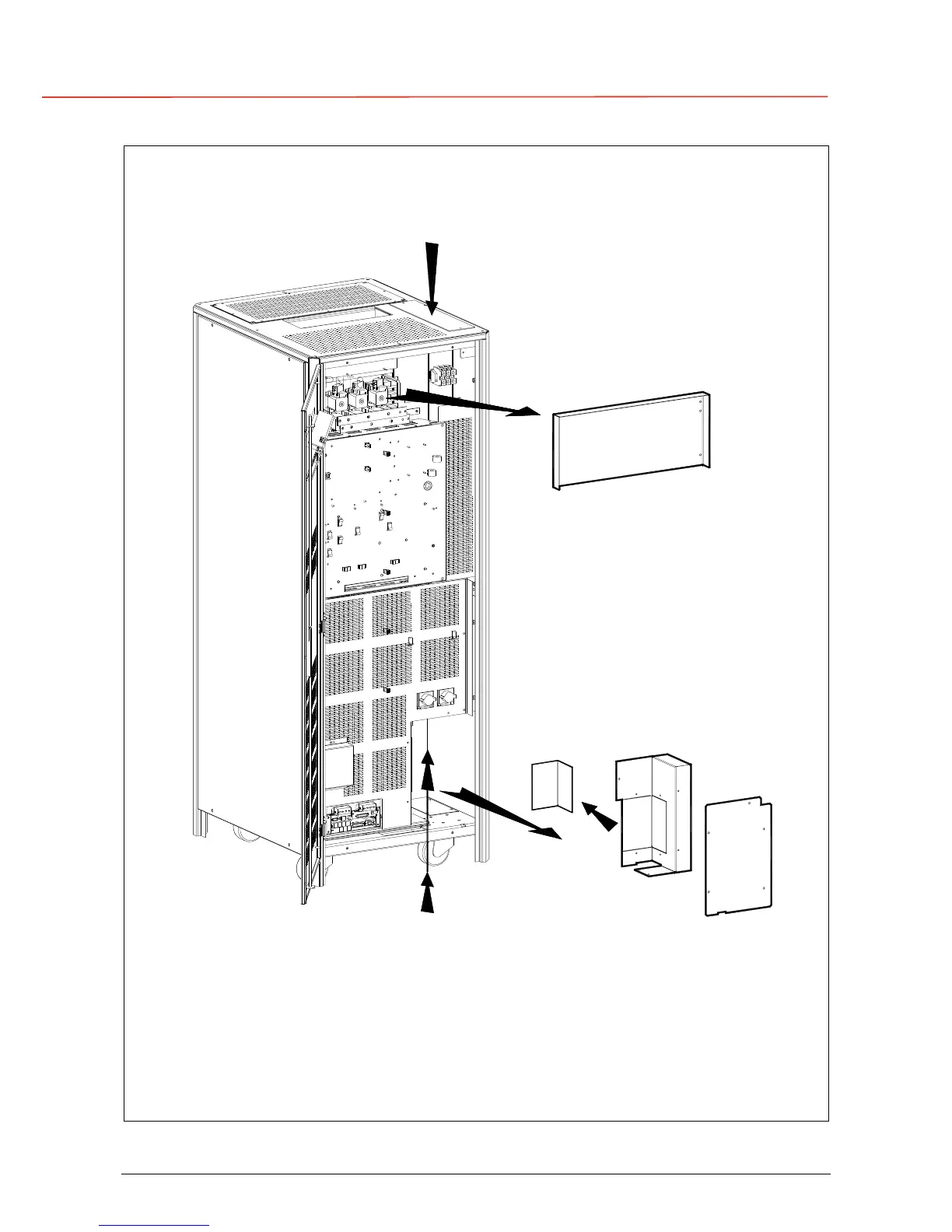

Fig. 3.8.1-2 Access to the input / output connections of SG Series 30 and 40 kVA
To access input, output and Battery connections proceed as follows:
• Remove protection panel “A”.
• Remove protection panel “B”.
• Remove UPS side panel “C”.
• Only from Separate Input Utility:
Remove with appropriate tool the metallic window “D” from the metal screen “C”.
