Chapter 3. Operation
34 DigitalFlow™ Multipurpose Ultrasonic Liquid Flowmeter Startup Guide (1- and 2-Channel)
3.3 Using the Display
The Model DF868 display is divided into a left pane and a right pane. The two screen panes can be set independently to
display any of the available measurement or diagnostic parameters. The components of a typical measurement mode
screen are shown in Figure 14.

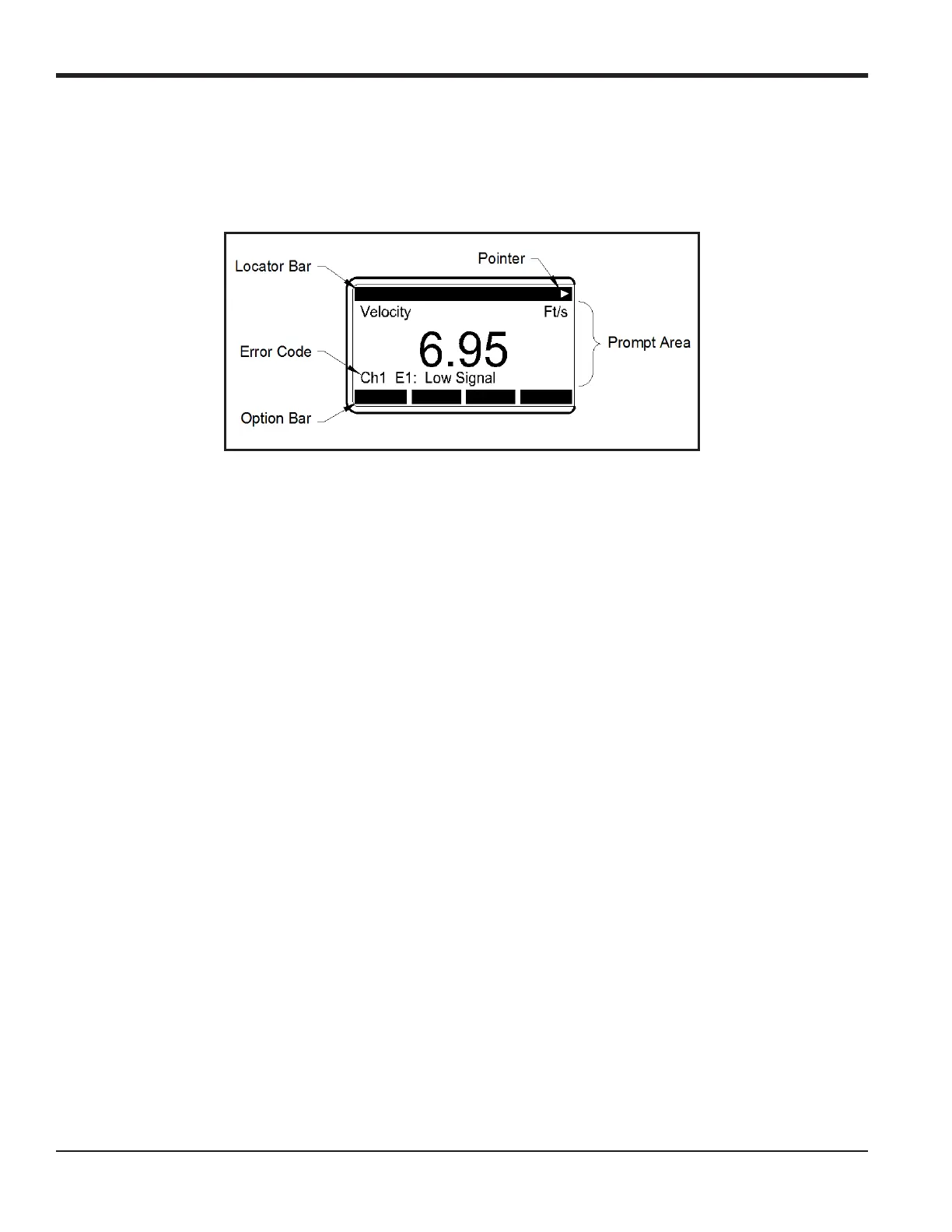

Figure 14: Display Screen Components
Both panes of the display screen are continuously updated, but only one pane at a time may be programmed or
changed. To select a pane, press the corresponding side of the [SCREEN] key on the keypad. The currently selected
screen pane will have function names in the option bar, while the other screen pane will have a blank option bar. See the
Programming Manual for detailed instructions on using the keypad.
As shown in Figure 14, each pane of the display screen is divided into the following three general areas:
• the locator bar
• the prompt area
• the option bar.
The upper portion of the screen pane is called the locator bar. While the meter is taking measurements, the locator bar
displays the name of the currently selected site file. In addition, the locator bar identifies the task that is currently being
performed and the status of that task. For example, pressing the
[PROG] key on the keypad will cause the locator bar to
display “PROGRAM” and “Start” to indicate that the meter is ready to be programmed from the start of the User Program.
At various times, one or more of the following four symbols may be displayed on the far right of the locator bar:
• ‰: This symbol, which is called the pointer, indicates that additional option bar entries are available. These options
can be accessed by using the [ and [ keys.
• *: A flashing asterisk indicates that the Model DF868 is currently logging information. See the Programming
Manual for instructions on creating a log file.
• S or S
L
: This symbol indicates the status of the red [SHIFT] key. “S” indicates that the [SHIFT] key is activated for the
next keystroke only, while “S
L
” indicates that the [SHIFT] key is locked. See the next section for instructions on
using the keypad.
• T: This symbol indicates that the Model DF868 is currently totalizing data.
Ch1 no label
gSITE
CH1
CH2
SUM
DIF
