between the Concentrate Inlet and Dilute Inlet. The Concentrate By-pass valve controls the
outlet pressure difference. Closing the valve decreases the Concentrate outlet pressure and
thereby increases the pressure difference between the Concentrate outlet and Dilute outlet.
The maximum E-Cell™ Dilute Feed water pressure is 100 psi (6.8 bar)

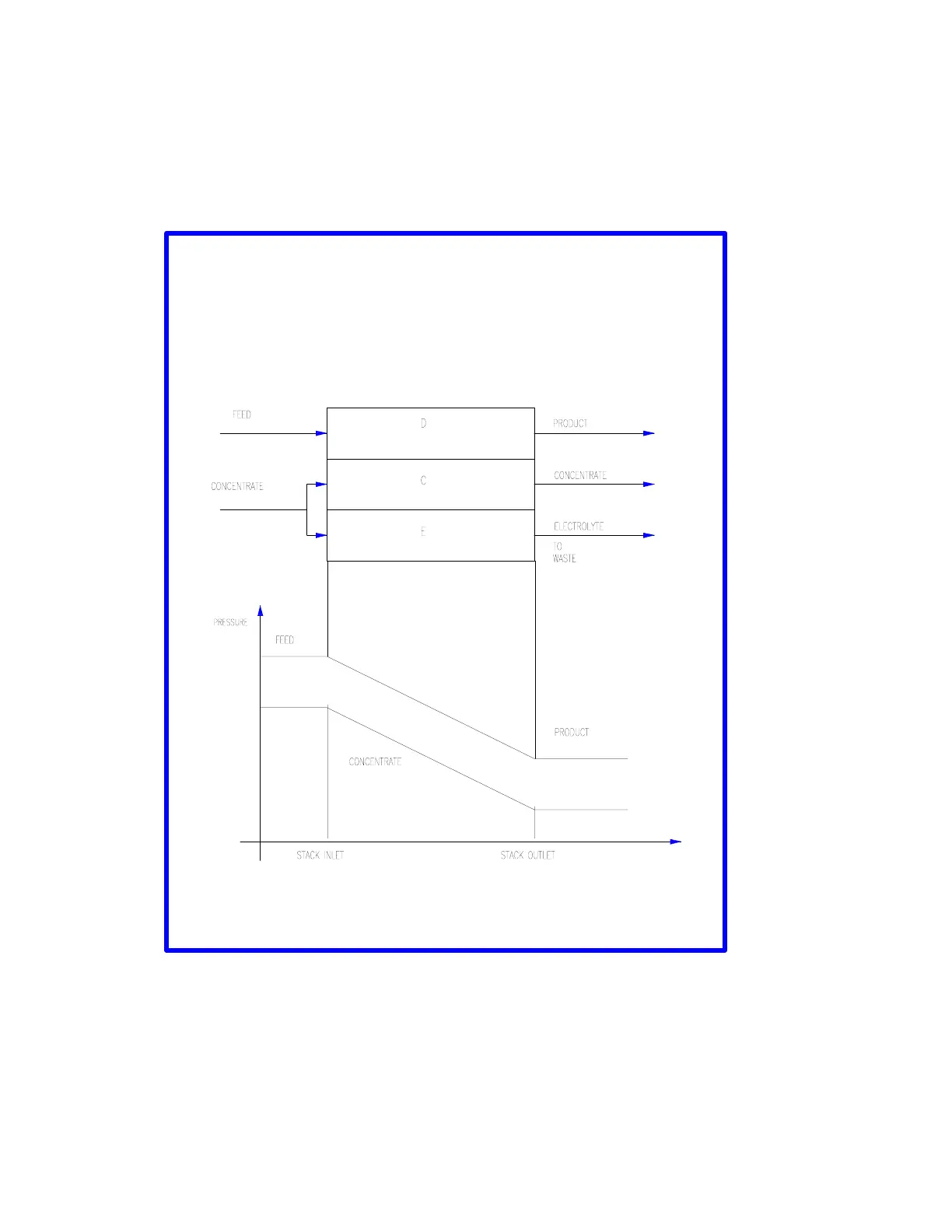

PRESSURE DIFFERENCE BETWEEN DILUTE
A
ND CONCENTRATE
