Chapter 2: Inst
allation and wirin
g
EST iO64 and iO500 Tech
nical Reference Manu
al
73

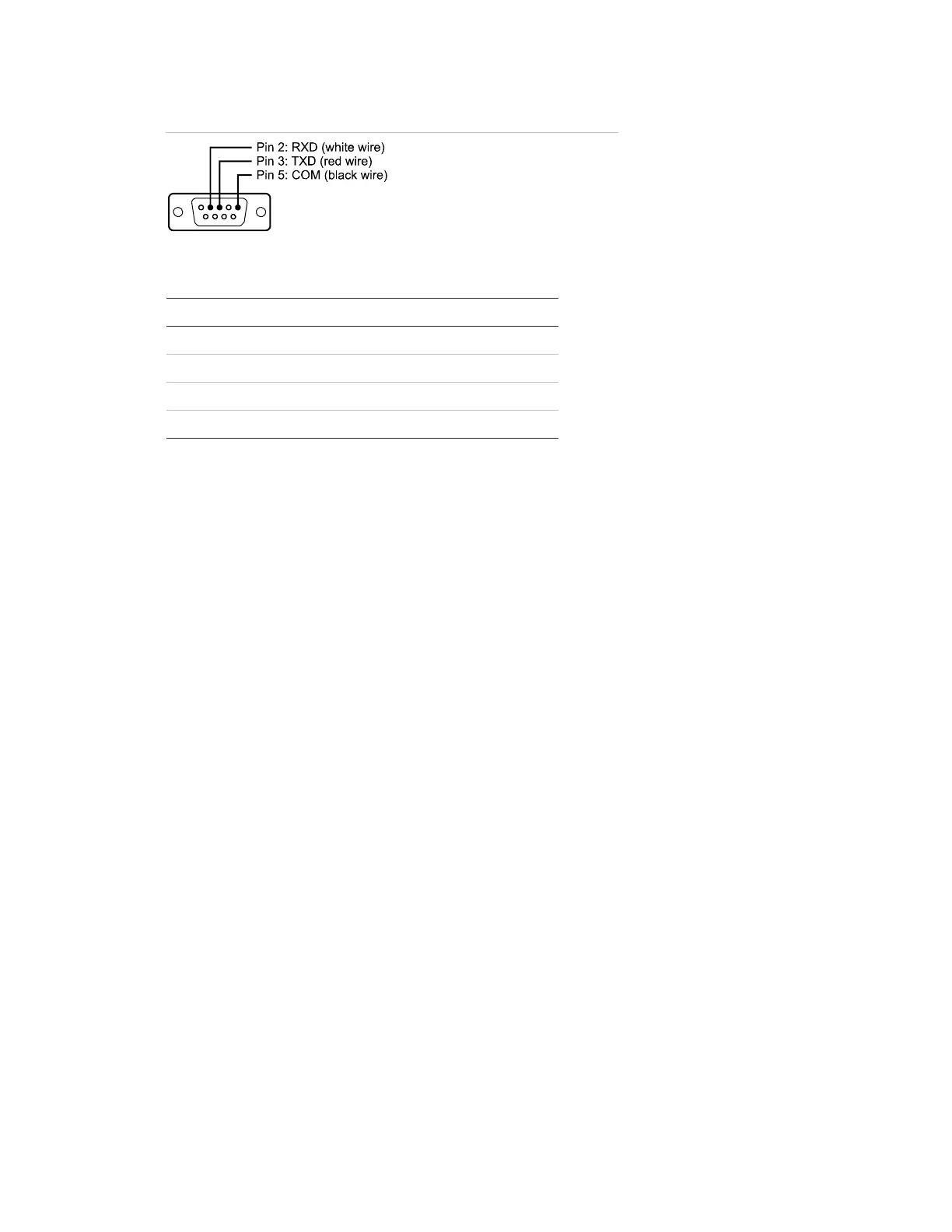

DB-9 pin connections
DB-9 male
(front view)
SA-232 card to computer DB-9 connections
SA-232 card
DB-9
Description
GND
COM (pin 5)
Black wire (ground conne
ction)
RTS -
Not
used
TXD
RXD (pin 2)
White wire (communicati
on)
RXD
TXD (pin 3)
Red wire (communication)
82
84
Table of Contents
Table of Contents
3
Important Information
5
Minimum System Requirements
9
To Get Started
10
Chapter 1 System Operation
11
Control Panel Operations
13
Front Panel Display
13
Operation Overview
13
LCD Display Screen
15
System Normal Display Screen
15
Event Details Display Screens
16
System Off-Normal Display Screen
16
System Leds
19
LED Display Expander Leds
20
Control Buttons
21
Component Descriptions
23
Events with Event Messages
25
Printout Examples
25
Event ID Numbers and Descriptions
27
Viewing Event Details
32
Resetting the Panel
33
Silencing Panel and Annunciator Buzzers
34
Silencing Notification Appliances
35
Re-Sounding Notification Appliances
37
Conducting a Lamp Test
38
Activating a Device
39
Restoring a Device
40
Activating a NAC
41
Restoring a NAC
42
Disabling a Device
43
Enabling a Device
45
Disabling a Zone
46
Enabling a Zone
48
Disabling a Panel Event
49
Enabling a Panel Event
51
Disabling a Loop Event
52
Enabling a Loop Event
54
Disabling a Panel NAC
55
Enabling a Panel NAC
56
Disabling/Enabling the Dialer and Network
57
Using the Drill Command
59
Using the Walk Test Command
60
Chapter 2 Installation and Wiring
63
Cabinet Box Installation
64
Panel Electronics Installation
66
Cabinet Wire Routing
67
AC Power Wiring
68
Panel Low Voltage Wiring
69
Battery Wiring (TB8)
70
Notification Appliance Circuit Wiring (TB2)
71
Device Loop Wiring
73
Alarm, Trouble, and Supervisory Relay Wiring (TB3)
75
Remote Annunciator Wiring (TB4)
76
Auxiliary/Smoke Power Output Wiring (TB3)
78
SA-DACT Wiring
79
SA-232 Wiring
81
SA-CLA Wiring
84
SA-ETH Wiring
85
CTM Module Wiring
86
RPM Module Wiring
88
Chapter 3 Programming
91
UL 864 Programming Requirements
93
Getting Started
94
Programming Mode
95
Using the Programming Control Buttons
95
Default Passwords
96
Factory Default Settings
97
Setting the Time and Date
102
Setting Daylight Saving Time
103
Setting the Passwords
105
Restoring the Factory Default Settings
106
Programming the Programmable Keys
107
Clearing the History
110
Restarting the Panel
111
Enabling the RS232 CU Enable Command
112
Contact ID Event Codes
113
Auto Programming the Panel
117
Advanced Programming Overview
122
Programming Panel and Loop Options
123
Loop Configuration Options
125
Correlation Groups Programming
126
Device Programming
128
Loop 2 Enable
133
Loop Class Programming
134
Mapping Programming
135
Mapping (Map Mismatch)
137
Zone Programming
139
Panel Configuration Options
141
NAC Programming
142
Annunciator Class Programming
144
Annunciator Programming
145
CMS Device Programming
147
Dialer Programming
149
Network (Receiver) Programming
151
Printer Programming
153
Network Card Programming
154
Lock Remote Read Programming
155
AC Voltage Programming
156
Panel Operation Programming
157
Panel Events Programming
159
Loop Events Programming
162
Unconfigured Alarm Programming
164
Common Trouble Programming
166
Incremental Programming the Panel
168
Adding a Device to a Programmed System
171
Removing a Device from a Programmed System
176
Chapter 4 Reports
177
History Report
178
Walk Test Report
180
Device Maintenance Report
181
System Status Report
182
Correlation Groups Report
183
Zone Report
184
System Configuration Report
185
Internal Status Report
187
Device Details Report
188
Diagnostics Reports
190
Internal Fault Report
193
Canceling a Report
194
Chapter 5 Diagnostics, Maintenance, and Testing
195
Preventive Maintenance Schedule
196
Fast Ground Check
197
Recalibrate Device
198
Flash Device LED
199
Loop Comm Check
200
Canadian Tests for Grounds, Opens, and Shorts
201
Control Panel Testing
201
Testing a Device (Test Fire)
202
SA-DACT Testing
203
Conducting a Lamp Test
204
Using the Walk Test Command
205
Using Hyperterminal
208
Replacing a Device in Alarm
210
Appendix B Worksheets
215
Battery Calculation Worksheet
216
Introduction
219
Notification Appliance Circuit Calculations Worksheet
219
What You'll Need
219
Worksheet Method
221
Equation Method
222
Notification Appliance Voltage Drop Calculation Worksheet
225
Device Loop Maximum Wire Length Worksheet
227
Correlation Groups Worksheet
233
Device Settings Worksheet
234
Loop Worksheet
236
Panel Configuration Worksheet
237
Panel Operation Worksheet
240
Zone Settings Worksheet
241
