GE GL 310 F3/4031 P/VR - Replacing the Motor Limit Switch And;Or the Auxiliary Switch

TROUBLESHOOTING
REV6 /REV2 OI 248 (EN) 61

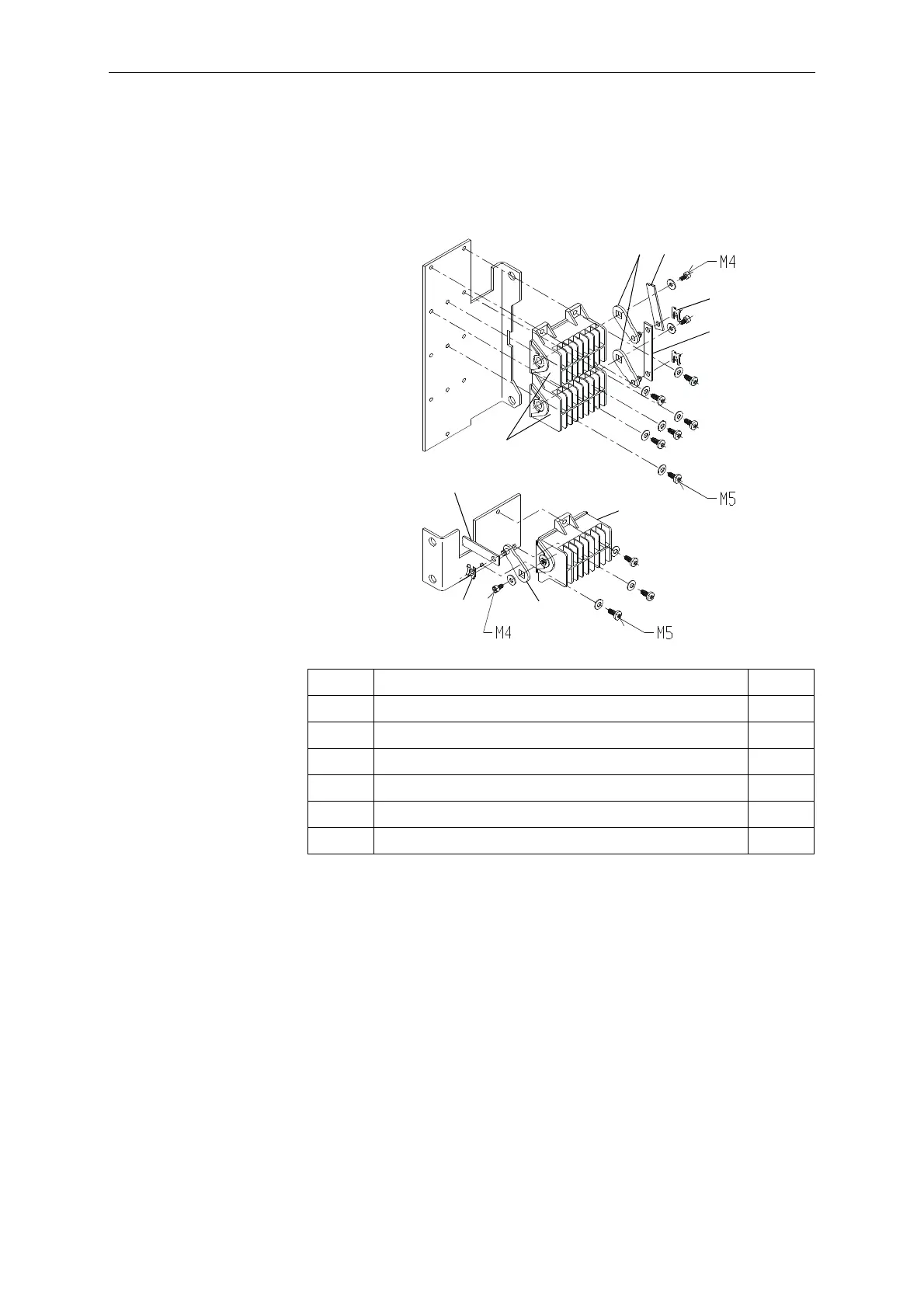

8.2.4 Replacing the Motor Limit Switch and/or the Auxiliary Switch
• Disconnect the wire connections to the motor limit switch (7) and/
or the auxiliary switch (5).
• Remove the locking clamps (3). Remove the drive rod
(2 or 6) and the connecting rod (4).
• Unscrew the M5 mounting screws.
• Remove the motor limit switch or auxiliary switch.
• Unscrew the M4 screw(s) and remove the lever (1).
• Mount the lever on the new motor limit switch or auxiliary switch.
1 Lever -
2 Drive rod -
3 Locking clamp -
4 Connecting rod -
5 Auxiliary switch -
6 Drive rod -
7 Motor limit switch -
1
2
3
4
7
1
3
5
6
