RECONDITIONING
92 OI 248 (EN) REV6 /REV6

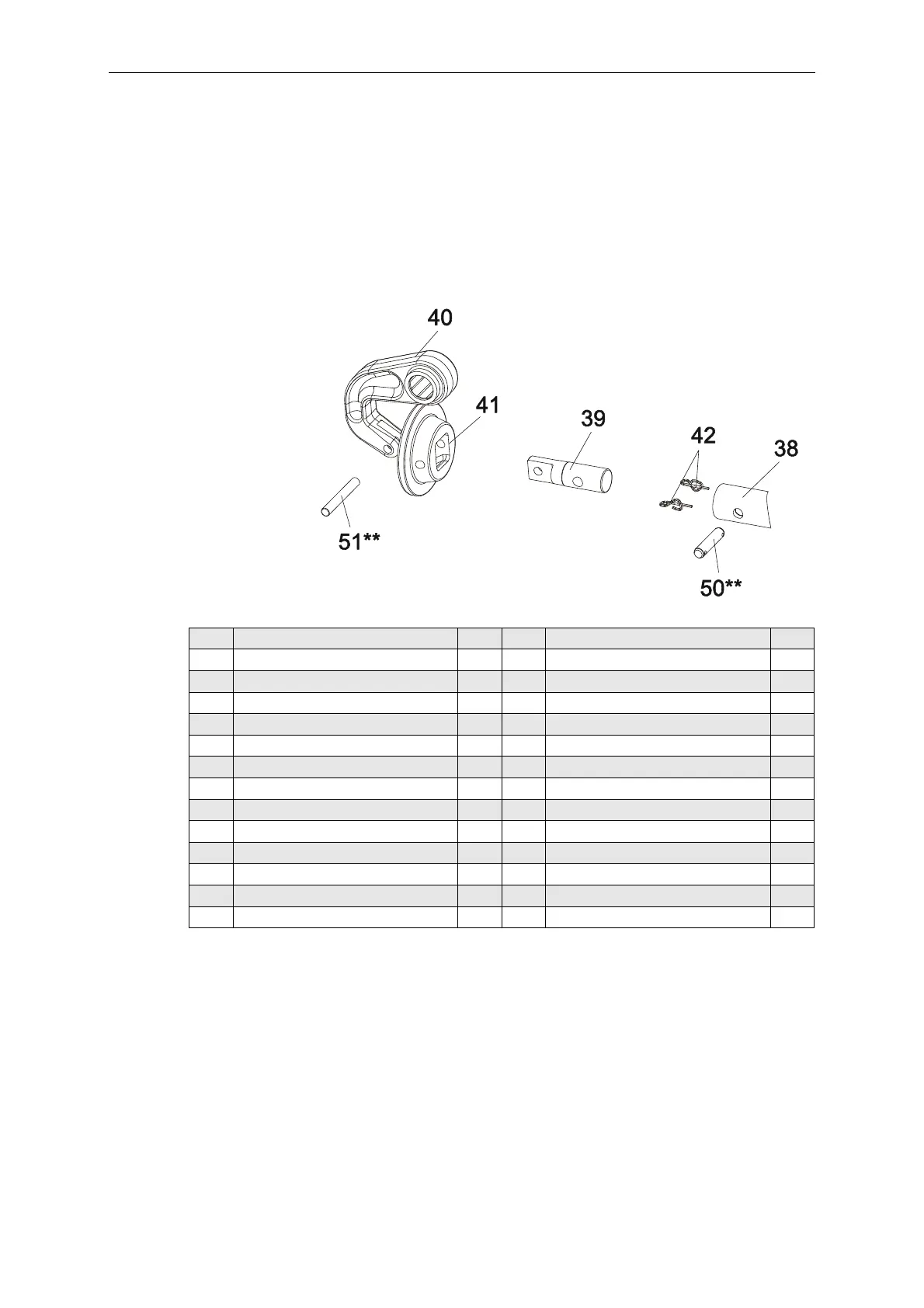

10.2.2 Disassembling the Crankcase
Remove the four screws (64) and the bearing cap (44).
Remove the bearing insert (45) and the outer part of the
cylindrical roller bearing.
Remove the shaft (43) and inner ring from the cylindrical roller
bearing.
Remove the insulating tube (38) along with the inner lever (40)
and spring seat (41) from the crankcase.
** Sliding and bearing surfaces lubricated per L7
37 Crankcase 1x 52 Roller bearing 1x
38 Insulating tube 1x 53 Roller bearing 1x
39 Connecting piece, bottom 1x 54 Axial needle roller assembly 1x
40 Inner lever 1x 55 Axial ring 1x
41 Spring seat 1x 56 Bearing ring 1x
42 splint pin 12KK2000 964 2x 57 Sealing ring 1x
43 Shaft 1x 58 O-ring 34.52x3.53 1x
44 Bearing cap 1x 59 O-ring, 62.87x5.33 2x
45 Bearing insert 1x 60 O-ring 38.82x5.33 2x
46 Bearing sleeve 1x 62 Hexagon screw, 6x20 A2-70 4x
47 Filter cover 1x 63 Washer, 6 A2 8x
48 Filter sleeve 1x 64 Hexagon screw, 6x25 A2-70 4x
50 Pin, 12x47.5 1x 65 Filter bag 1x
51 Pin, 10x75 1x
