GE iBox User Manual

GE Grid Solutions
iBox/iBox Kit
Installation and Maintenance Guide
GE Information
994-0047-5.10-4
133
Connecting Field Wiring, continued
DC Analog
Inputs

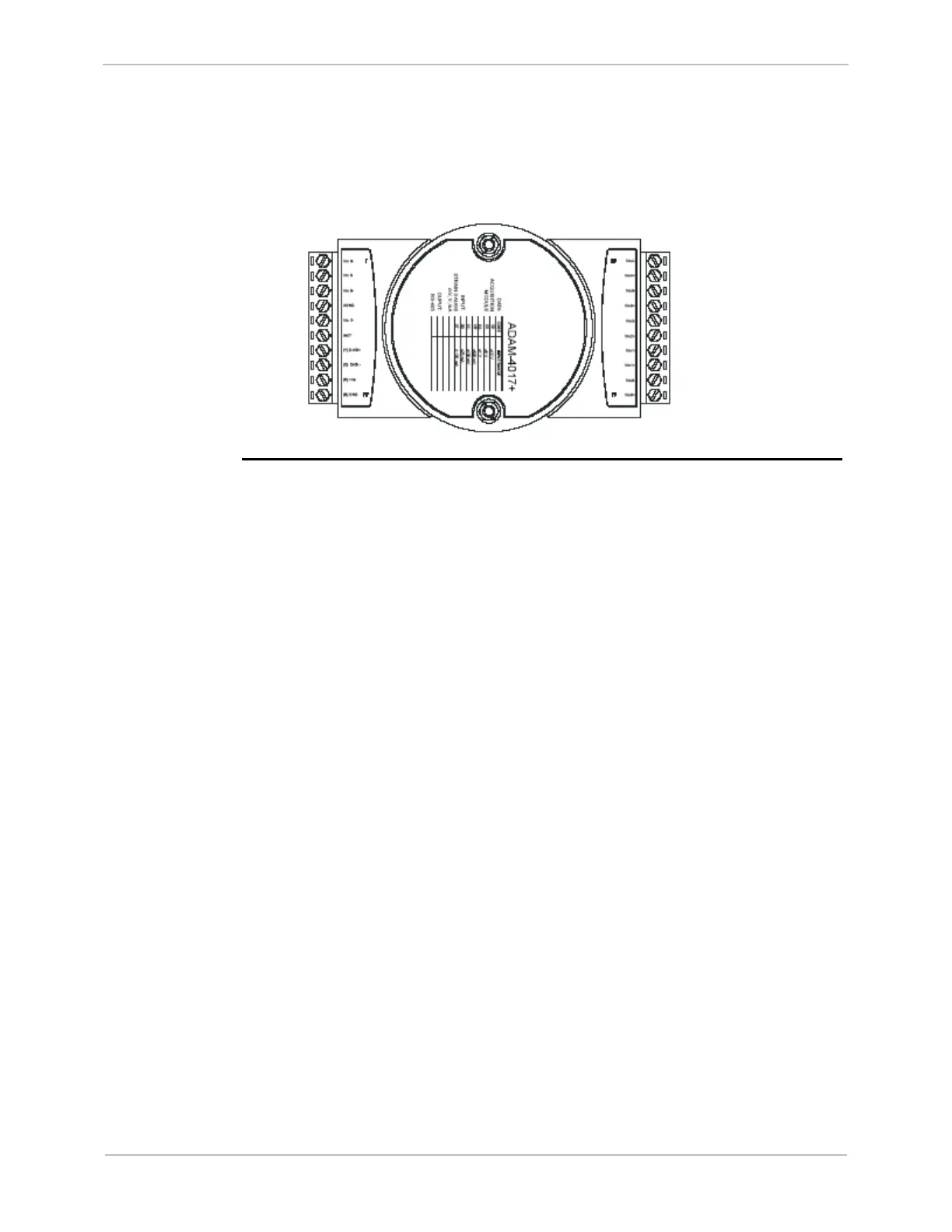

DC analog inputs are connected to the iBox Kit through the DC Analog Input
module, as shown below:
Vin 4-
Vin 4+
Vin 3-
Vin 3+
Vin 2-
Vin 2+
Vin 1-
Vin 1+
Vin 0-
Vin 0+
Vin 5-
Vin 5+
Vin 6-
Vin 6+
Vin 7-
Vin 7+
