GE JVM6172SKSS - Adjust the Exhaust Adaptor; Connecting Ductwork

15
4

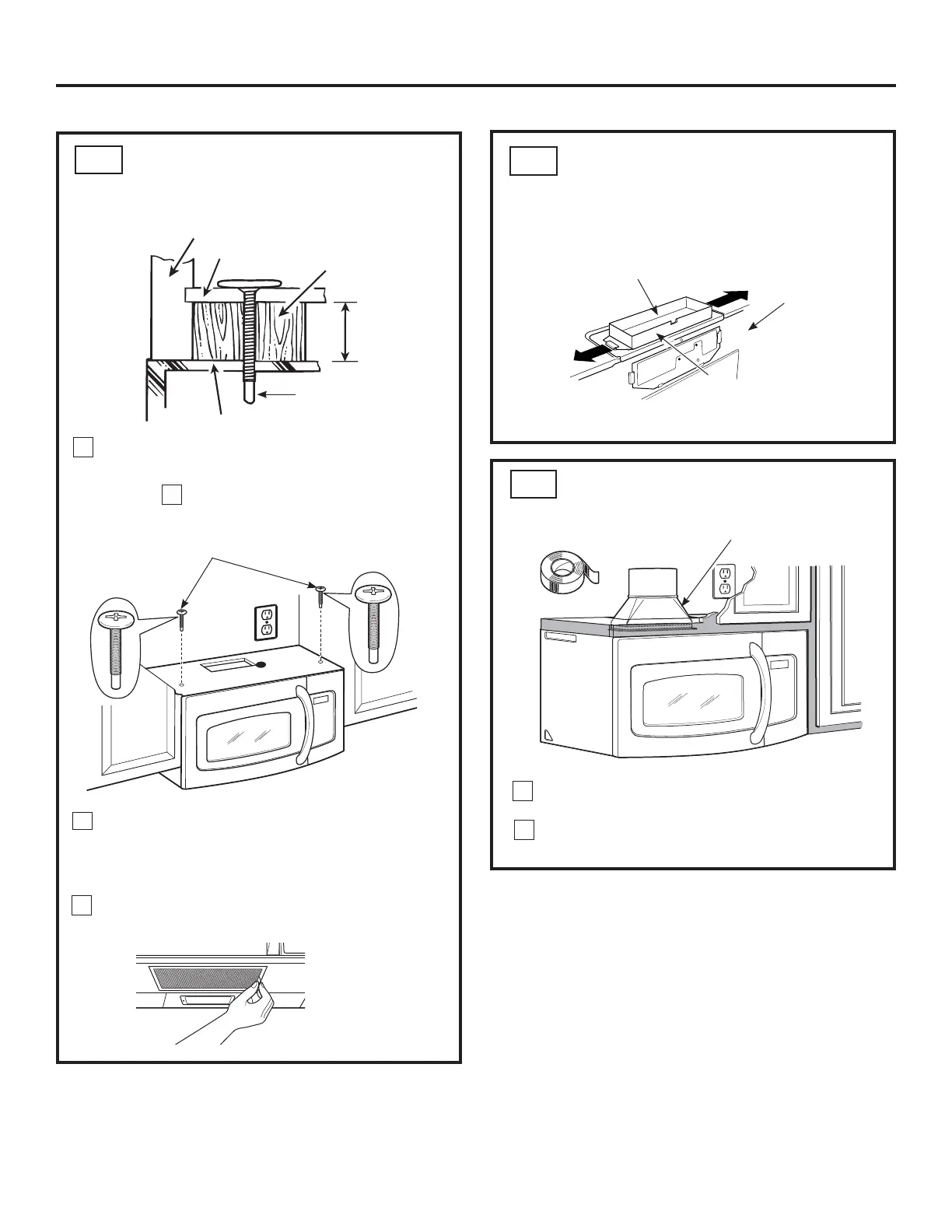

Attach the microwave oven to the top cabinet.
7
6
Cabinet Front
Cabinet Bottom Shelf
Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
Install grease filter. See the Owner’s Manual on
the website (GEAppliances.com).
Filler Block
Microwave Oven Top
Equivalent
to Depth
of Cabinet
Recess
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
Installation Instructions
ADJUST THE EXHAUST ADAPTOR
A7.
Open the top cabinet and adjust the exhaust adaptor to
connect to the house duct.
Back of
Microwave
Oven
For Side-to-Side Adjustment,
Slide the Exhaust Adaptor
as Needed
Damper
CONNECTING DUCTWORK
1
2
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
A8.
House Duct
Self-Aligning Screw
5
MOUNT THE MICROWAVE OVEN
(cont.)
A6.
