ADAPTING MICROWAVE BLOWER
FOR RECIRCULATION (cont.)
C4.
22

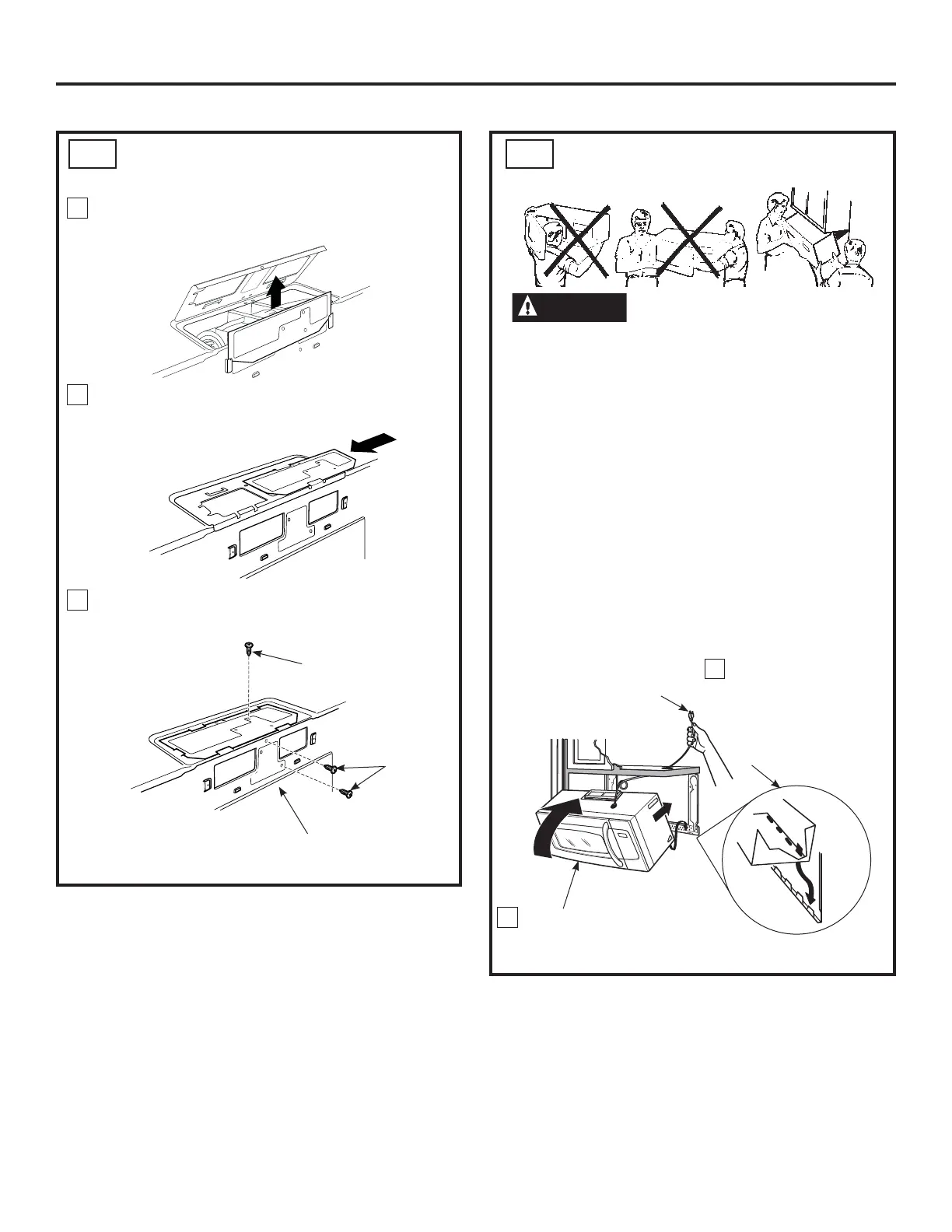

Installation Instructions
NOTE: When mounting the
microwave oven, thread
power cord through hole
in bottom of top cabinet.
Keep it tight throughout
Steps 1–3. Do not pinch
cord or lift oven by pulling
cord.
Lift microwave, tilt it
forward, and hook slots
at back bottom edge
onto four lower tabs of
mounting plate.
2
Rotate front of oven up
against cabinet
bottom.
1
Close the blower door. Slide blower shield onto the
top of the blower door opening.
Remove the metal vent fan cover on the back of the
microwave by sliding it up.
7
6
MOUNT THE MICROWAVE OVEN
C5.
CAUTION
FOR EASIER INSTALLATION AND
PERSONAL SAFETY, WE RECOMMEND THAT TWO
PEOPLE INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle during
installation.
NOTE: If your cabinet is metal, use the nylon grommet
around the power cord hole to prevent cutting of the
cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used,
case damage may occur from overtightening
screws.
Back of
Microwave
Oven
Blower
Retaining
Screws
Blower Retaining
Screw
Secure the blower to the microwave using the blower
retaining screws from Step 1.
8
To Next Page
