11.1 Electromagnetic Compatibility (EMC) requirements
To ensure continued EMC compliance, a Wurth 74271221S ferrite as shown in
Figure 11—1 (supplied as part of the COMMS kit) must be fitted to make
connection with an RS-232 and/or RS-485 module using connector P1. The
communications cable must be looped twice through the ferrite as shown in
Figure 11—1.

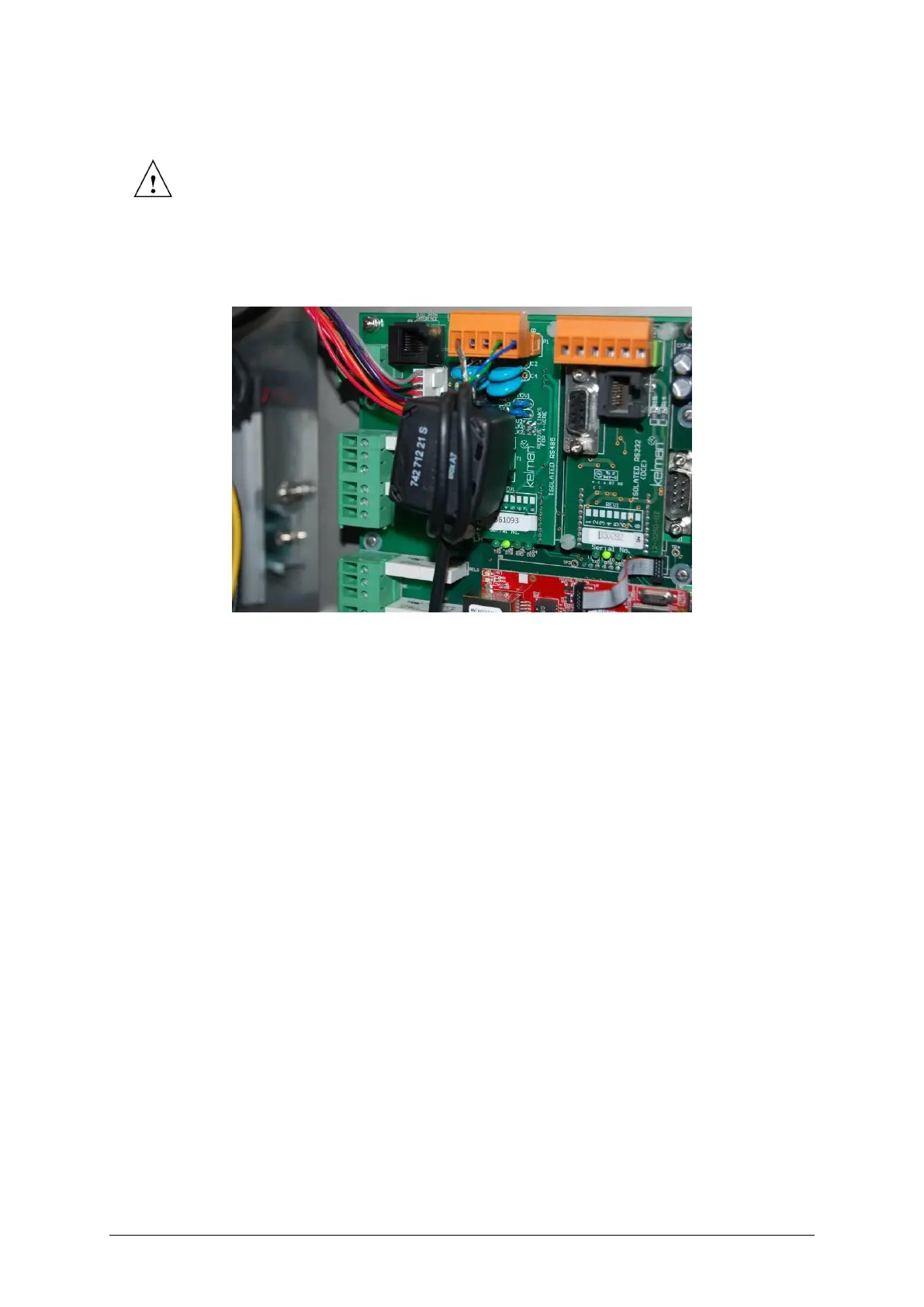

Figure 11—1: Ferrite placement on RS-485
