KTD-405/405A/405-2D Keypad
Quick Guide
15

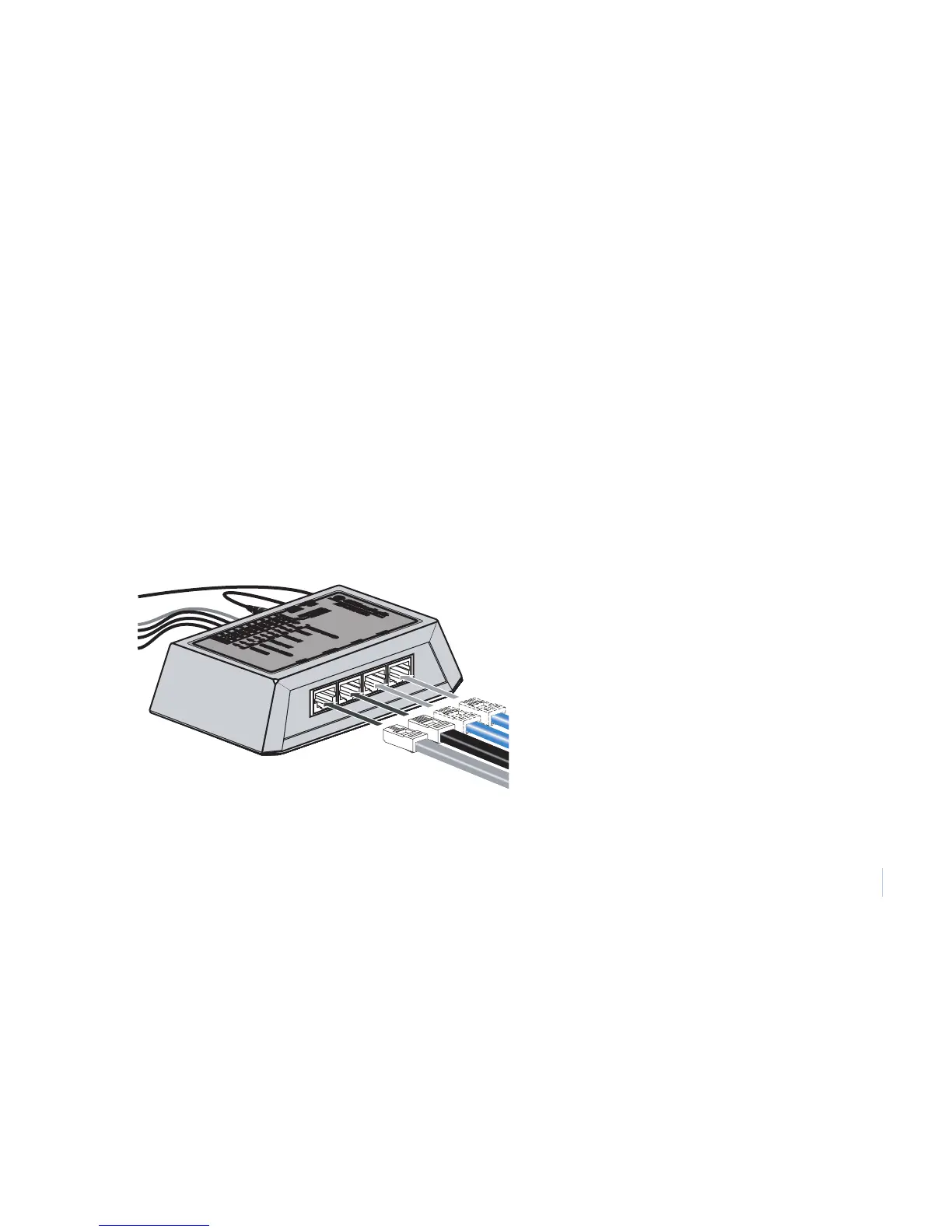

RJ11 and RJ45 connectors
RS-485. These are optional connectors
for systems that include multiplexers or
DVRs with RJ45 connectors.
Pin 3 = RS-485A
Pin 6 = RS-485B
On the terminal strip on the other side of
the I/O box, there is also one RS-485
connection.
AUDIO. Connect the RJ11 cable from
the keypad (KTD-405A only). This is a
crossover cable.
KEYPAD. Connect the black RJ45 cable
from the keypad. This is a straight-
through cable.
