KTD-405/405A/405-2D Keypad
Quick Guide
4

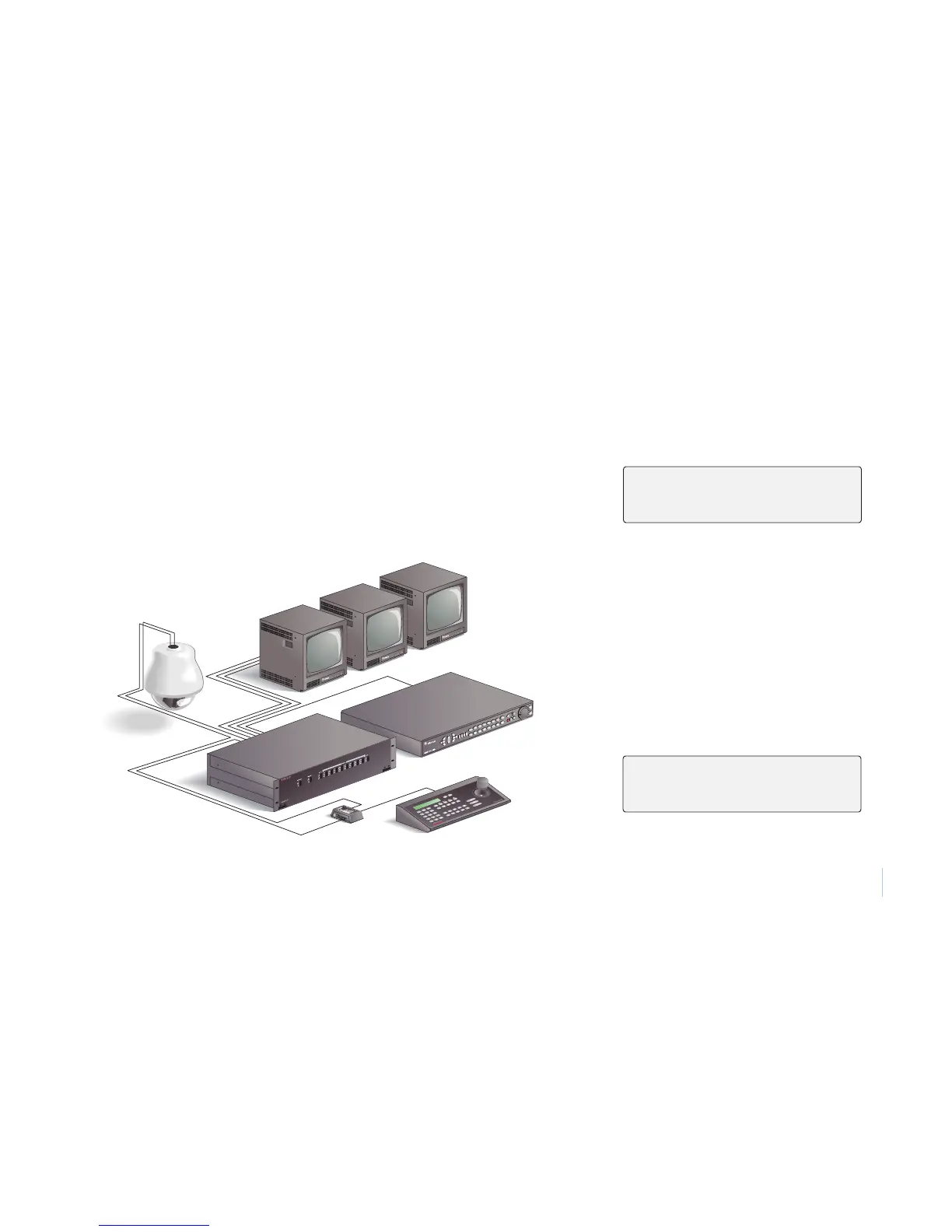

Digiplex installations
If your system uses one or more GE matrix switchers as the main switching devices, then
the system is a Digiplex installation. A Digiplex system can have 512 cameras, one or more
matrix switchers with 64 monitor outputs, up to 32 multiplexers, and up to 32 recorders. In
addition, optional recording devices (DVR, DSR, or VCR) can connect to the matrix switcher.
Digiplex systems do not require dedicated monitors for each DVR.
Digiplex mode
If you have a Digiplex installation, your
keypad should be in Digiplex mode. If your
keypad is in Digiplex mode, it shows the
active camera and monitor numbers.
See DVR operation on page 7 to control a
DVR when the keypad starts in Digiplex
mode.
Hybrid zone mode
You can use the keypad to control a DVR in
a Digiplex installation. In this case, the
keypad is in hybrid zone mode. If your
keypad is in hybrid zone mode, it shows
zone, camera, and monitor numbers, plus
the DVR type.
CAMERA 0
MONITOR 1
ZONE 01 DVMRe TRI
CAM -- MON A ESC=EXIT
