GE LOGIQ F SERIES
DIRECTION 5446617-100, REVISION 10 BASIC SERVICE MANUAL
Section 7-5 - Network Configuration 7 - 9
Section 7-5
Network Configuration
7-5-1 Network Configuration
1.) Connect system with network.
2.) Enter Utility-> Connectivity-> TCP/IP, in IP settings window, check Enable DHCP, and select the
proper network speed in Network Speed.
NOTE: If user wants to setup static IP address, uncheck Enable DHCP option, input static address in
IP-Address box, Subnet Mask and Default Gateway box. In Network Speed, choose the
proper speed available.

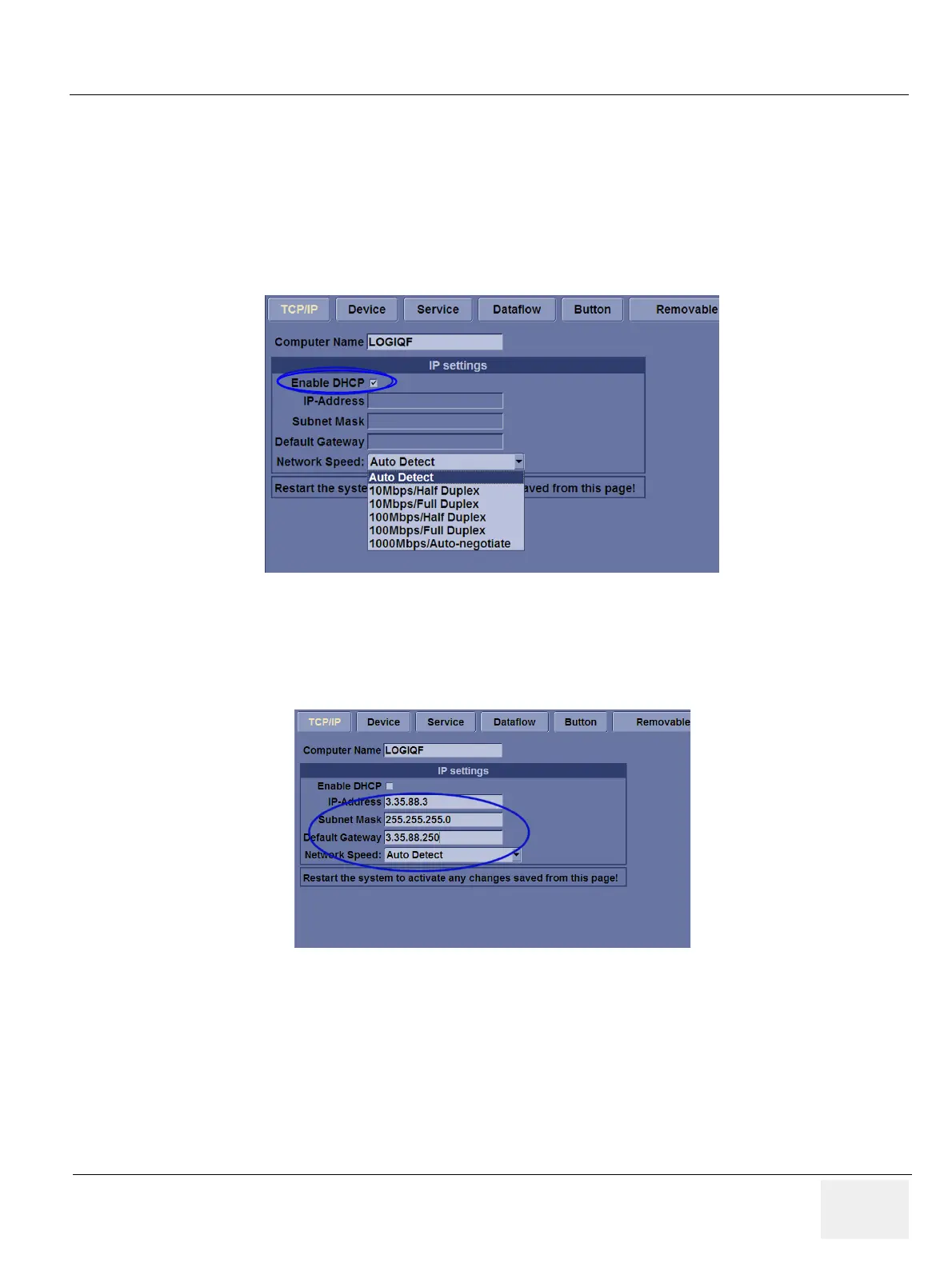

Figure 7-5 Enable DHCP
Figure 7-6 Input static address
