Chapter 3 System Setup 3 - 13
3-6-5 Peripherals/Accessories Connector Panel
LOGIQ F Series peripherals and accessories can be properly connected using the side connector
panel.
3-6-5-1 Rear Panel Connector
NOTE: The AC printer can be connected to the isolated USB port on the rear panel only.
NOTE: There is only one isolated USB port on the system as shown above.

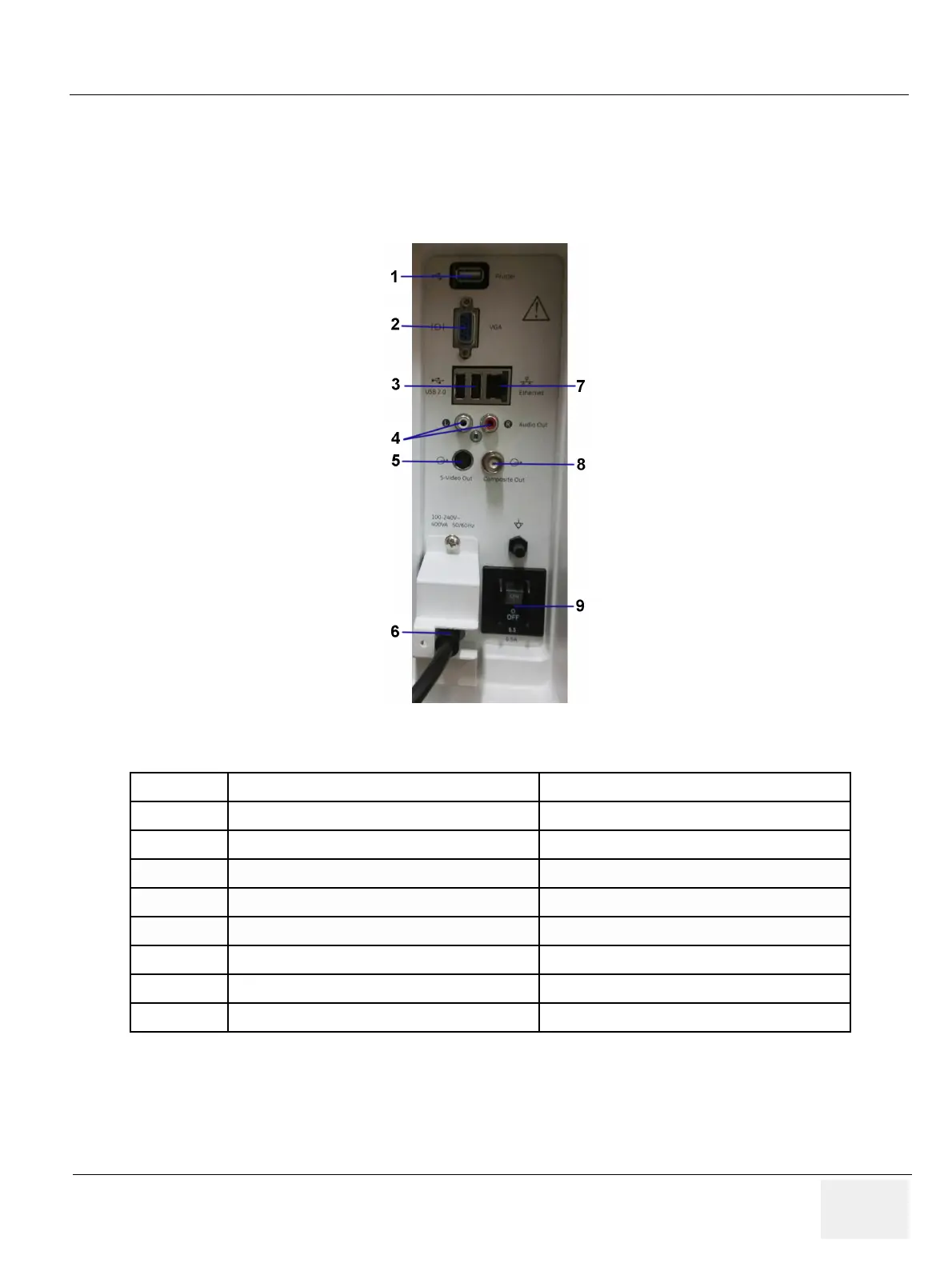

Figure 3-6 Rear Connector Panel
Table 3-8 Peripheral/Accessory Connector Panel
1
Isolated USB port
For AC Printer ONLY
2
VGA port
VGA Video Out
3
USB port
USB 2.0
4
Audio
Audio Line Out
5
S-Video port
S-Video Out
6
AC Inlet
100-240V
7
Ethernet
LAN for InSite Connection (RJ45)
8
Composited port
Composited Video Out
9
Circuit breaker
6.5A
