GE LOGIQ F SERIES
DIRECTION 5446617-100, REVISION 10 BASIC SERVICE MANUAL
4 - 20 Section 4-3 - General Procedure
4-3-9 Color Flow Mode Checks
NOTE: Color Flow Mode only support by LOGIQ C5 Premium
4-3-9-1 Preparations
1.) Connect one of the probes listed in 3-6-6 "Available Probes" on page 3-21, in Chapter 3 Installation
to the System probe connector.
2.) Turn ON the scanner (if it isn’t turned on already).

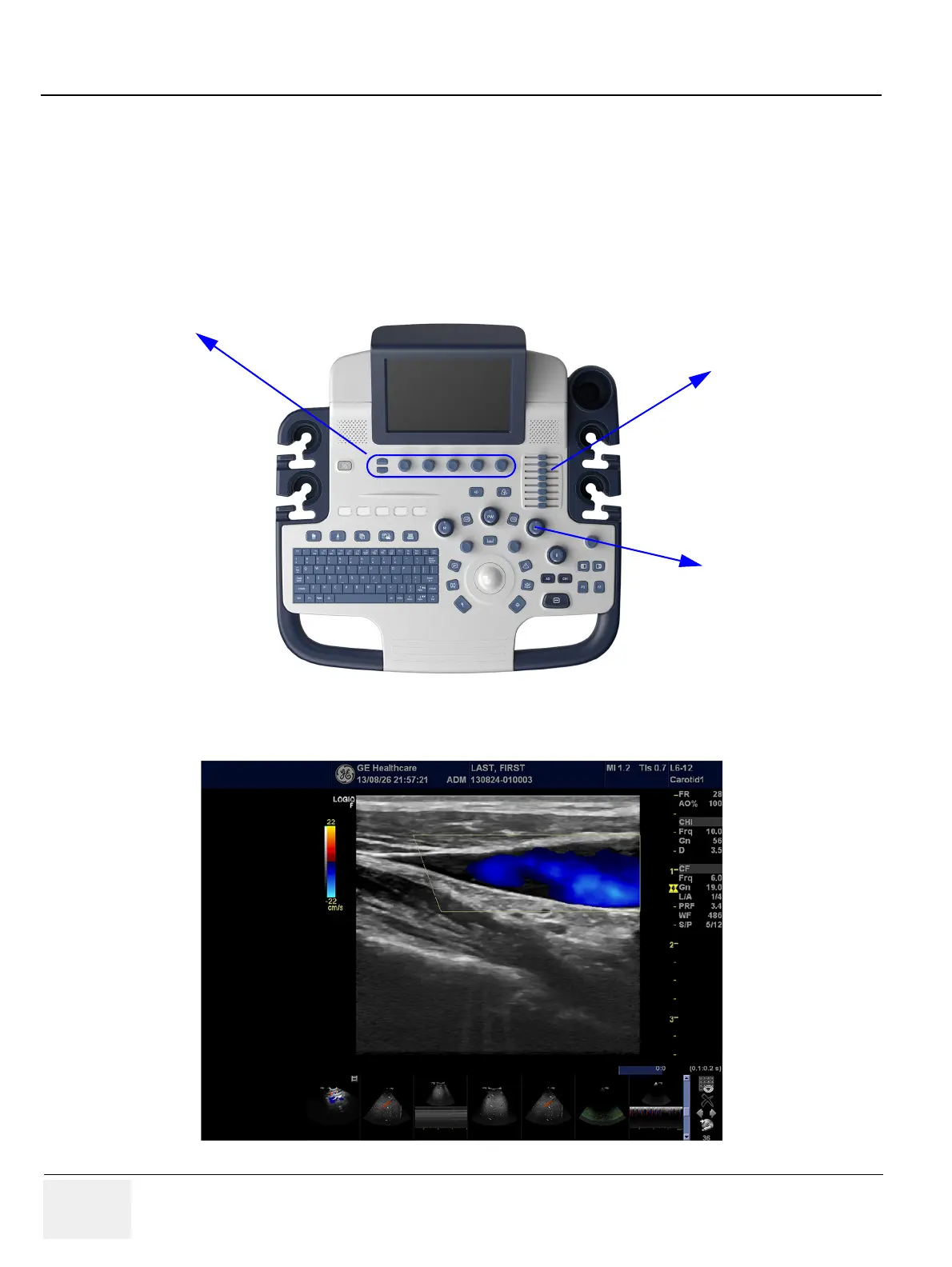

Figure 4-16 Controls available in Color Flow Mode
Figure 4-17 CFM Mode Screen Picture Example
Primary Menu
CF Mode/Gain
TGC
To Next Page
