GE LOGIQ F SERIES
DIRECTION 5446617-100, REVISION 10 BASIC SERVICE MANUAL
8 - 6 Section 8-4 - Attaching Keyboard Film
Section 8-4 Attaching Keyboard Film (cont’d)
Fit the film on the keyboard well and then remove the remaining release paper.
3.) The keyboard film is attached successfully.

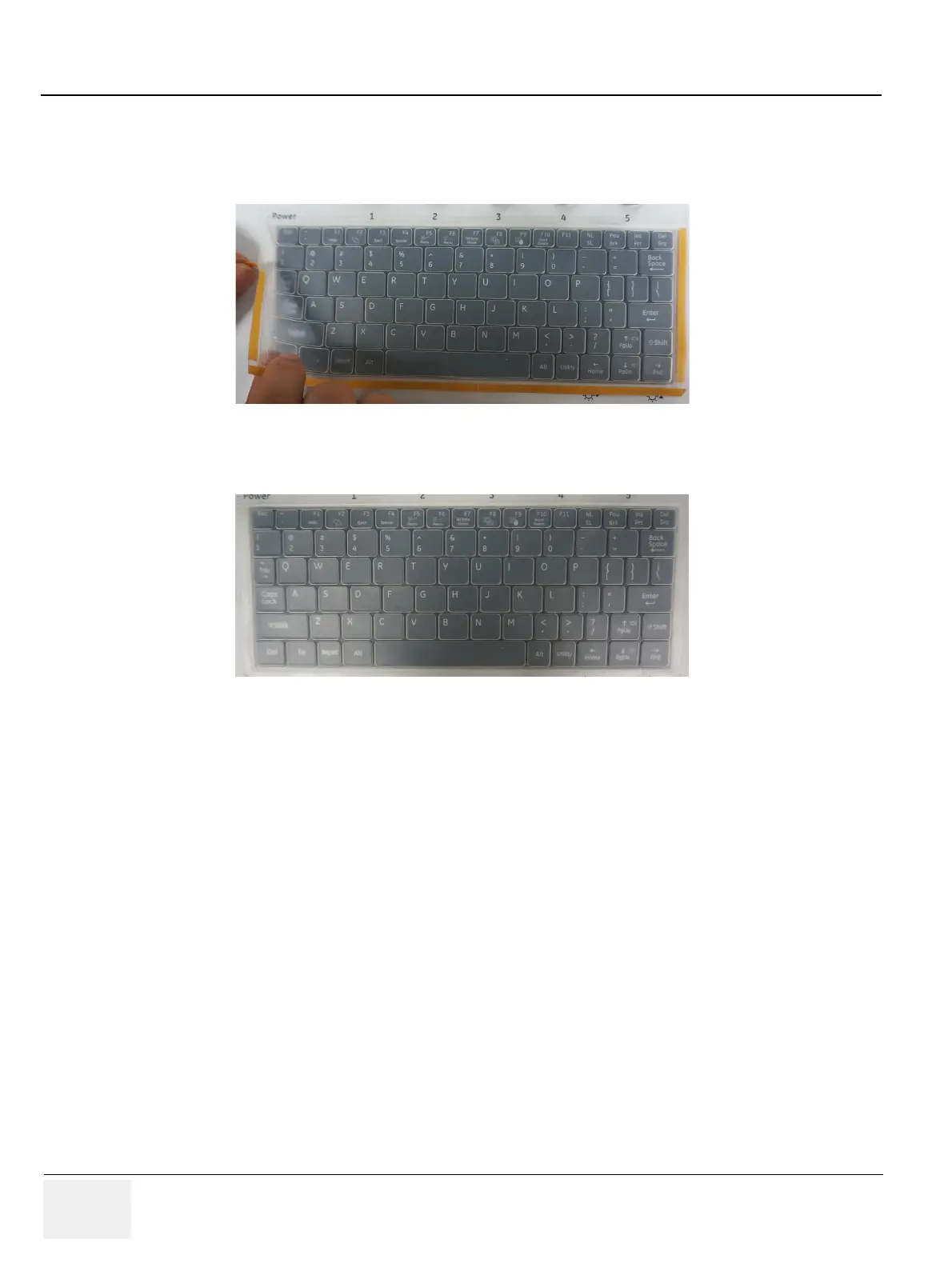

Figure 8-13 Fit the keyboard film
Figure 8-14 Attached Successfully
