Chapter 3 System Setup
3 - 17
3-6-5-3 Connect Peripherals
(cont’d)
D.)
Connect Foot Switch to the system.
Foot Switch can be properly connected u
sing USB Ports.
E.)
Connect the USB Memory to the system. The U
SB Memor
y can be properly connected using USB
ports.

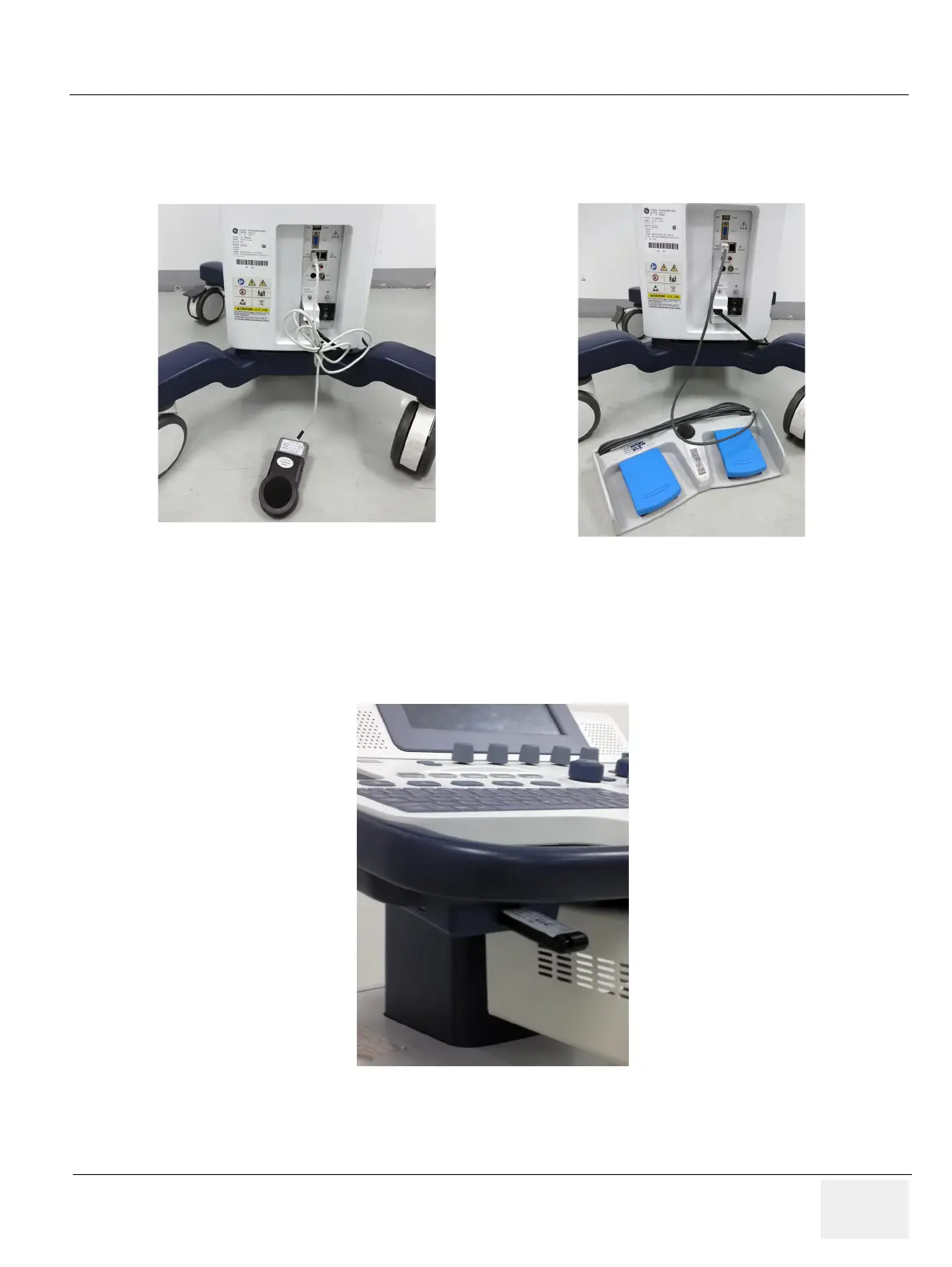

Figure 3-1
1 Connect Foot Switch to the system
Figure 3-12 USB Memory Connection
1-Pedal Footswitch
3-Pedal Footswitch
66
68
Table of Contents
Default Chapter
17
Table of Contents
17
CHAPTER 1 Introduction
27
Overview
27
Purpose of Chapter 1
27
Purpose of Service Manual
27
Typical Users of the Basic Service Manual
28
Purpose of Operator Manual(S)
28
LOGIQ F Series Models Covered by this Manual
28
Peripheral List
29
Important Conventions
32
Conventions Used in Book
32
Standard Hazard Icons
33
Product Icons
33
Safety Considerations
34
Introduction
34
Human Safety
34
Mechanical Safety
34
Electrical Safety
35
Label Locations
35
Dangerous Procedure Warnings
36
Returning/Shipping Probes and Repair Parts
36
EMC, EMI, and ESD
37
Electromagnetic Compatibility (EMC)
37
CE Compliance
37
Electrostatic Discharge (ESD) Prevention
37
Lockout/Tagout (LOTO) Requirements
38
Customer Assistance
39
Contact Information
39
System Manufacturer
40
Factory Site
40
5446617-100, Revision
40
CHAPTER 2 Site Preparations
41
Overview
41
Purpose of Chapter 2
41
General Console Requirements
42
Console Environmental Requirements
42
Electrical Requirements
42
EMI Limitations
44
Scan Probe Environmental Requirements
45
Facility Needs
46
Purchaser Responsibilities
46
Required Features
47
Recommended and Alternate Ultrasound Room Layout
48
Networking Pre-Installation Requirements
49
CHAPTER 3 System Setup
51
Overview
51
Purpose of Chapter 3
51
Setup Reminders
52
Average Installation Time
52
Installation Warnings
53
Safety Reminders
54
Receiving and Unpacking the Equipment
55
Moving into Position
57
Product Locator Installation Card
57
Preparing for Installation
58
Verify Customer Order
58
Physical Inspection
58
EMI Protection
58
Completing the Installation
59
Power on / Boot up
59
Power Off/ Shutdown
59
Transducer Connection
60
System Configuration
61
System Specifications
61
Electrical Specifications
62
On-Board Optional Peripherals
62
Connecting Cables
62
Peripherals/Accessories Connector Panel
63
Available Probes
71
Software/Option Configuration
71
Connectivity Installation Worksheet
72
Loading Base Image Software
73
Software Version Check out
74
Functional Check-Out
74
Paperwork
75
Product Locator Installation
75
User Manual(S)
75
CHAPTER 4 Functional Checks
77
Overview
77
Purpose for Chapter 4
77
Required Equipment
77
General Procedure
78
Power On/Boot up
78
Power Off/ Shutdown
79
Archiving and Loading Presets
81
Adjusting the Display Monitor
82
System Features
83
B Mode Checks
87
M Mode Controls
91
Doppler Mode Checks
93
Color Flow Mode Checks
96
Basic Measurements
99
Probe/Connectors Usage
100
Using Cine
101
Backup and Restore Database, Preset Configurations and Images
102
Software Configuration Checks
109
Peripheral Checks
109
CHAPTER 5 Components and Functions (Theory)
111
Overview
111
Purpose of Chapter 5
111
Block Diagram
111
System Diagram
112
Software Diagram
113
Common Service Platform
114
Introduction
114
CHAPTER 6 Service Adjustments
115
Overview
115
Purpose of this Chapter 6
115
Monitor Adjustments
116
Adjustments Procedures
116
CHAPTER 7 Diagnostics/Troubleshooting
117
Overview
117
Purpose of Chapter 7
117
Gathering Trouble Data
118
Overview
118
Collect Vital System Information
118
Collect a Trouble Image with Logs
119
Screen Captures
120
Check and Record the Store Key Function
120
Setting the Print Key to Screen Capture
120
Capturing a Screen
120
Reset the Store Key to Customer's Functionality
122
Common Diagnostics
123
Utilities
123
PC Diagnostics (Non-Interactive Tests)
124
PC Diagnostics (Interactive Tests)
124
Restart LOGIQ F Series after Diagnostics
124
Network Configuration
125
CHAPTER 8 Replacement Procedures
127
Overview
127
Purpose of Chapter 8
127
Disassembly/Re-Assembly
128
Warning and Caution
128
Returning/Shipping for Repairs
128
Air Filter
129
Trackball Roller Cleaning
130
Attaching Keyboard Film
131
Loading Base Image Software
134
Direction 5446617-100, Revision 10 Basic Service Manual
140
CHAPTER 9 Renewal Parts
141
Overview
141
Purpose of Chapter 9
141
List of Abbreviations
141
Renewal Parts Lists
142
Equipment Models Covered in this Chapter
142
Direction 5446617-100, Revision 10 Basic Service Manual
145
CHAPTER 10 Care & Maintenance
147
Overview
147
Periodic Maintenance Inspections
147
Purpose of Chapter 10
147
Why Do Maintenance
148
Keeping Records
148
Quality Assurance
148
Maintenance Task Schedule
148
How Often Should Care & Maintenance Tasks be Performed
148
Tools Required
150
Standard GE Tool Kit
150
Special Tools, Supplies and Equipment
152
Input Power
153
Cleaning
153
Physical Inspection
153
Outlet Test -Wiring Arrangement - USA & Canada
154
Grounding Continuity
155
Chassis Leakage Current Test
156
Isolated Patient Lead (Source) Leakage-Lead to Lead
157
Isolated Patient Lead (Sink) Leakage-Isolation Test
157
Probe Leakage Current Test
159
When There's too Much Leakage Current
161
5
