GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-191

8-7-18 BT11 Drawer Option Installation (cont’d)

4.) Screw 2 screws (2159634, BH M4X10) behind the Assembly.

5.) Screw 2 screws (5176744, BH M4X20) to fix the DRAWER Assy to the system.

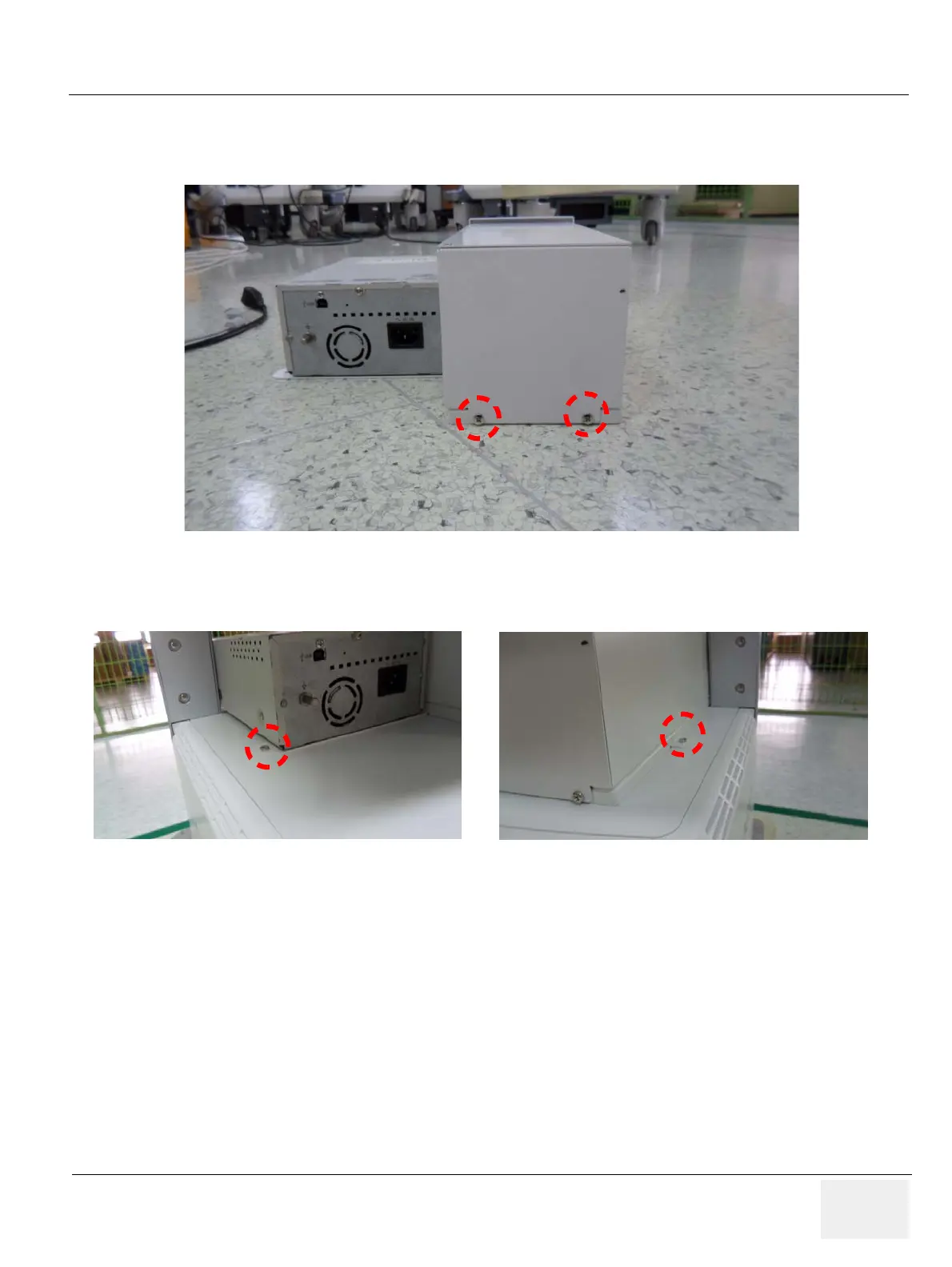

Figure 8-315 BT11 Drawer Option Installation

Figure 8-316 BT11 Drawer Option Installation
