LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-192 Section 8-7 - Mechanical Option Installation instruction

8-7-18 BT11 Drawer Option Installation (cont’d)

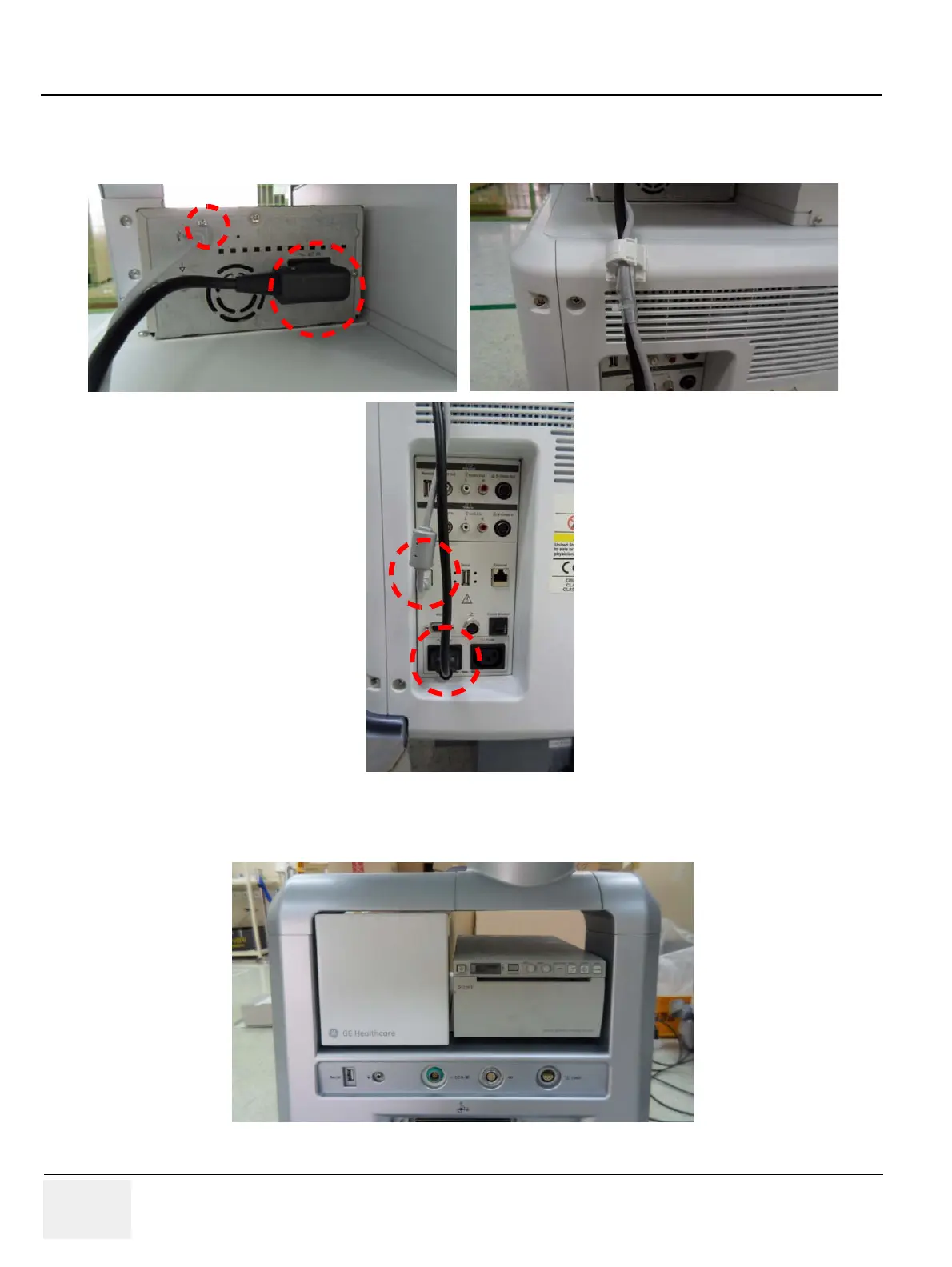

6.) Connect the BW Printer cable and fix the cables with CABLE MOUNT. Refer to the pictures below.

7.) Installation Completion.

Figure 8-317 BT11 Drawer Option Installation

Figure 8-318 BT11 Drawer Option Installation
