GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-199

2.) Switch to Security tab, make below settings, and then click "OK"

3.) Choose Compress files into a new ZIP file, and then click "Next"

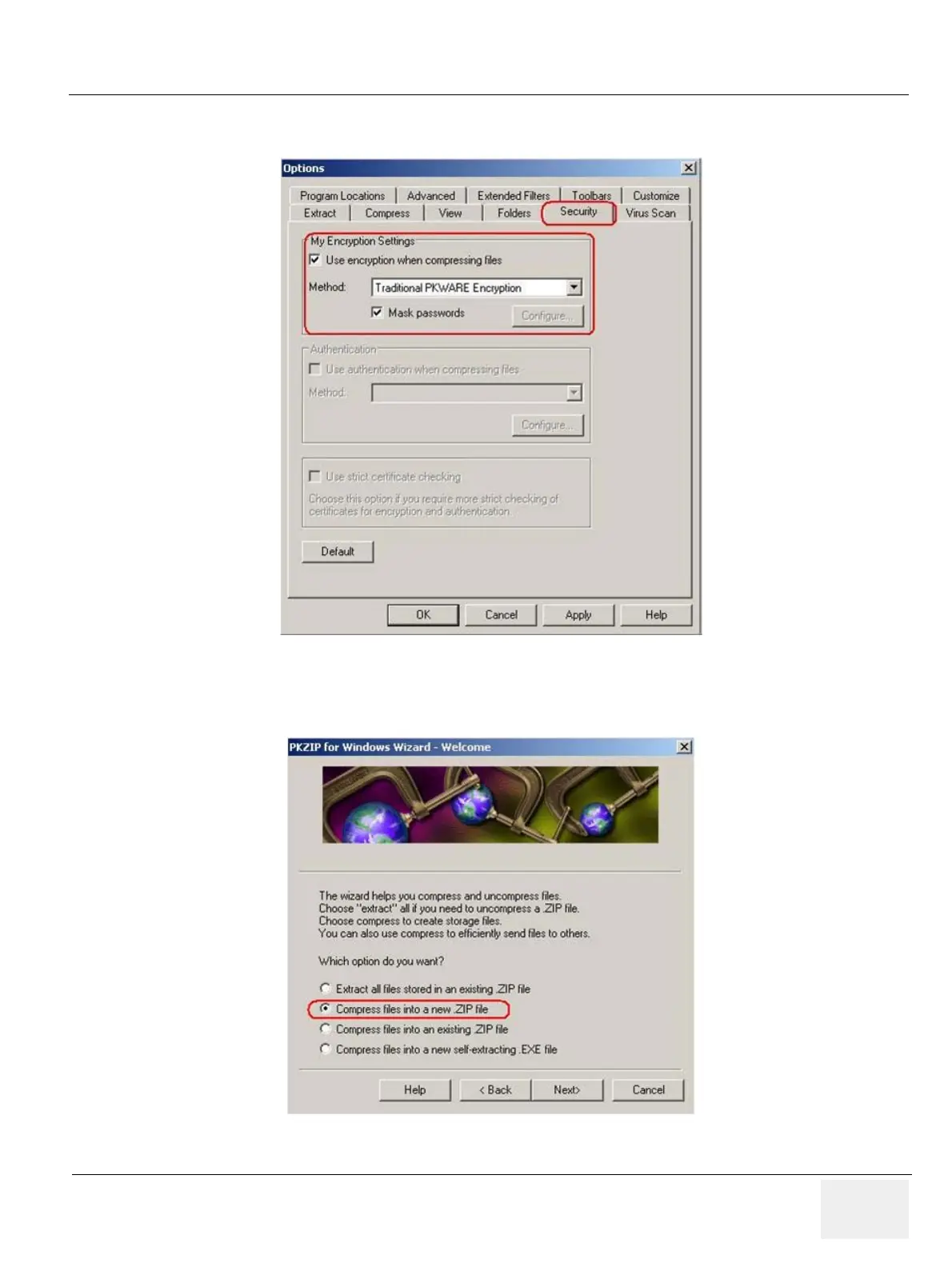

Figure 8-330 Setting Security tab for mask passwords

Figure 8-331 Setting Compress files into a new .ZIP file
