GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-200 Section 8-8 - PHI(Protecting Health Information) DATA COMMUNICATION

4.) Set storage location and file name

5.) Select the files you want to compress, the Add to List, click on Finish

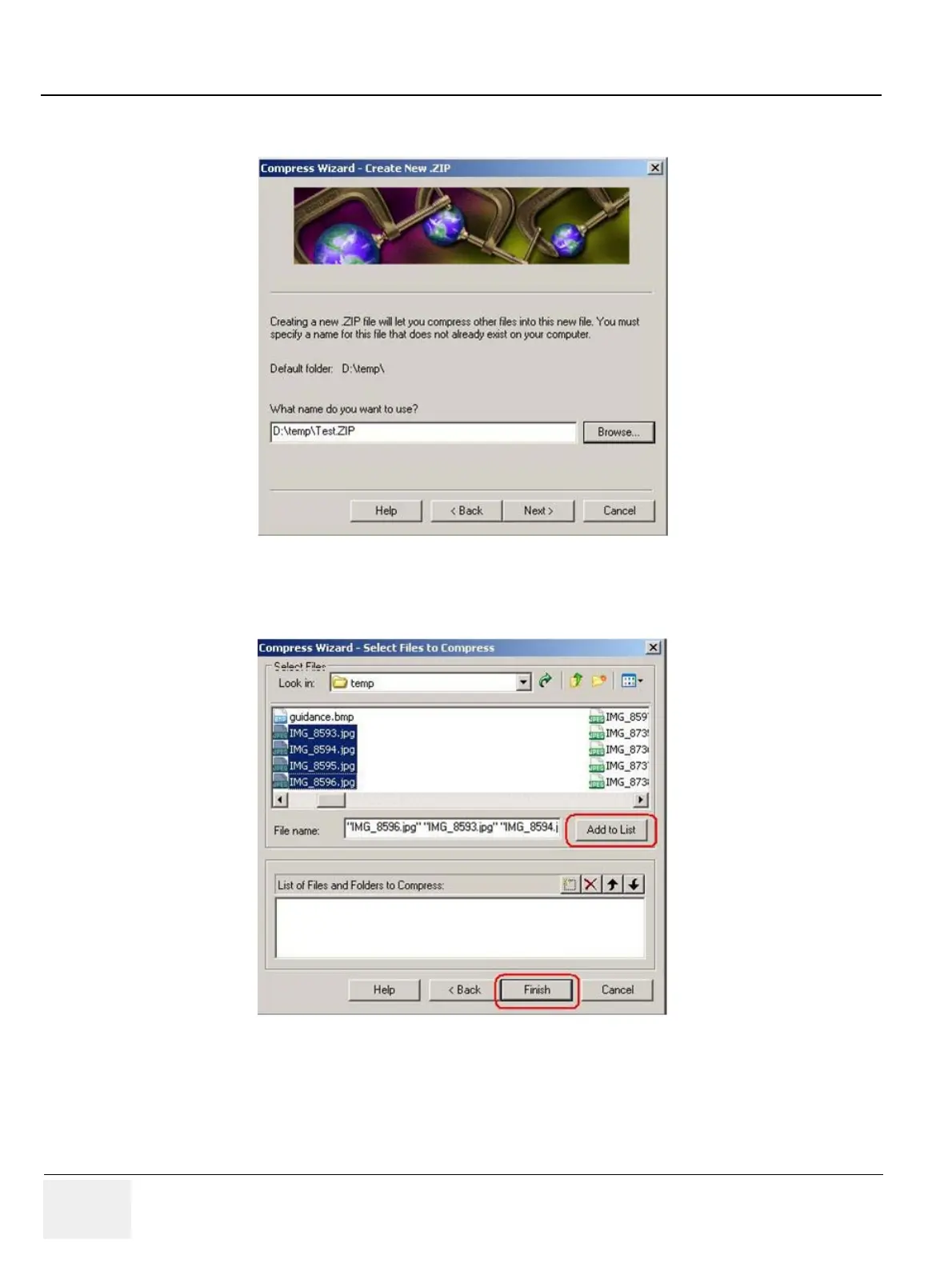

Figure 8-332 Set storage location and file name

Figure 8-333 Select the file want compress
