GE LOGIQ V2 Service Manual

Replacement Procedures
7-10 LOGIQ V2/LOGIQ V1 – Basic Service Manual
5610739-100 English Rev.10
Paper Tray Kit (5727505)
Purpose: This is a description on how to remove and replace the
Paper Tray Kit of V Cart.
Tools
• None
Preparation
• Lock the castors in order to avoid cart moving.
Needed Manpower
• 1 person, 1 minutes + travel
Removal Procedure
Mounting Procedure
1. Install the new parts in the reverse order of removal.
Table 7-3: Removal Procedure for Paper Tray Kit

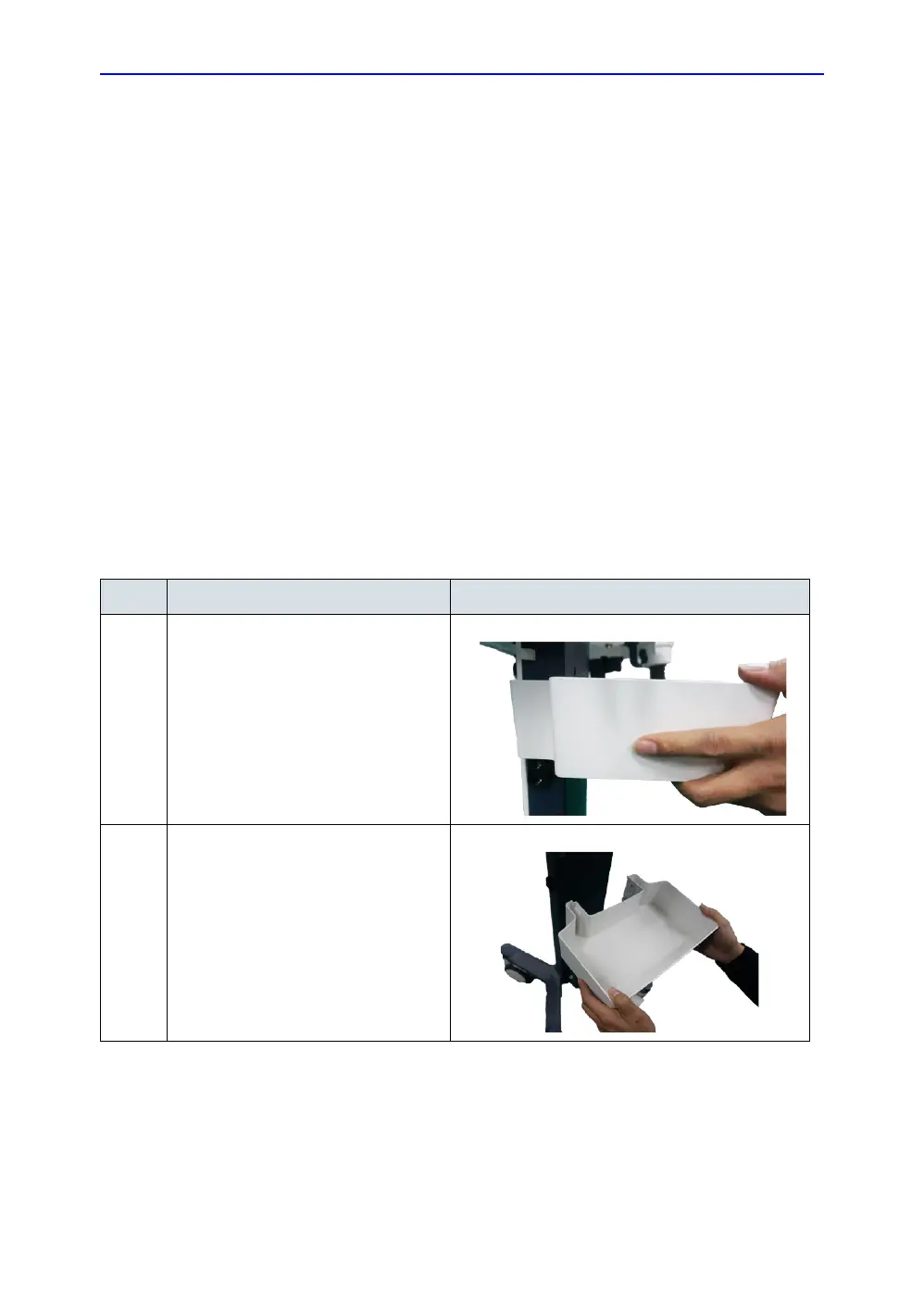

No. Steps Corresponding Graphic
1. Hold the paper tray with two hands and
push it up.
2. Then remove it from the Upper Column.
