GE LOGIQ V2 Service Manual

System Setup
3-16 LOGIQ V2/LOGIQ V1 – Basic Service Manual
5610739-100 English Rev.10
Peripheral/Accessories Connector Panel
LOGIQ V2/LOGIQ V1 peripherals and accessories can be
properly connected using the side connector panel.

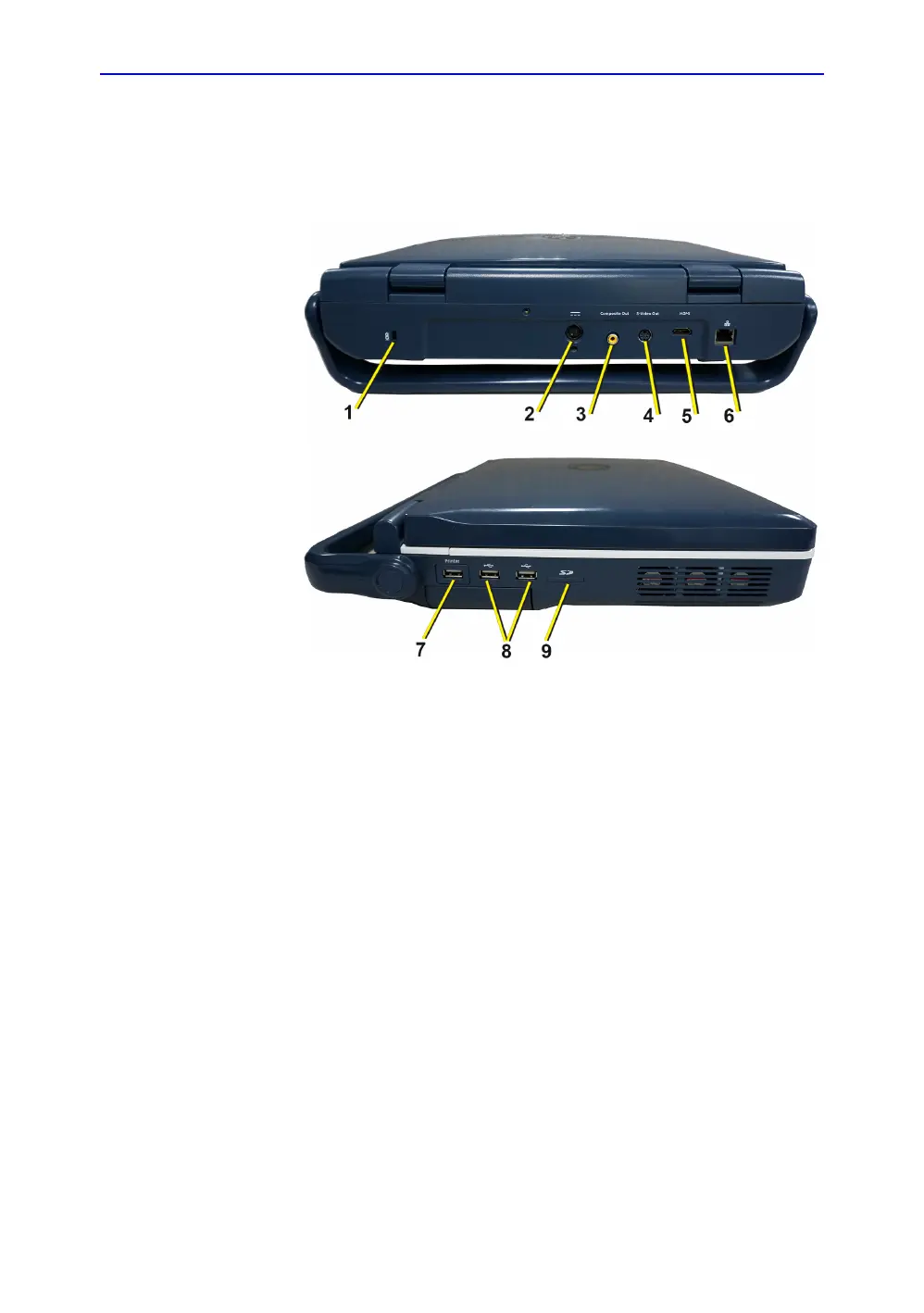

Figure 3-5. Rear and left Side Connector Panel
1. Security Lock
2. Port for DC In (AC Adapter)
3. Composite Out Port
4. S-Video Out Port
5. HDMI Port
6. Ethernet Port
7. Isolated USB Port for AC Printer ONLY
NOTE: The AC printer can be connected to this isolated USB port
only.
8. USB Ports for Footswitch, DVD-RW, Wireless LAN Adapter,
USB Stick, USB HDD
9. SD Port
