Peripherals Installation
LOGIQ V3/V5/V5 Expert – Basic Service Manual 3-43
5726264-100 English Rev.8
3-7-3-10 Wireless Adaptor
3-7-3-10-1 Tools
No special tools needed.
3-7-3-10-2 Manpower
One person 1 min.
3-7-3-10-3 Preparations
1. Unpack the wireless adaptor
2. Ensure no physical damage.
3-7-3-10-4 Installation Procedure
1. Connect the wireless adaptor to the USB port on the LOGIQ
V3/V5/V5 Expert system.

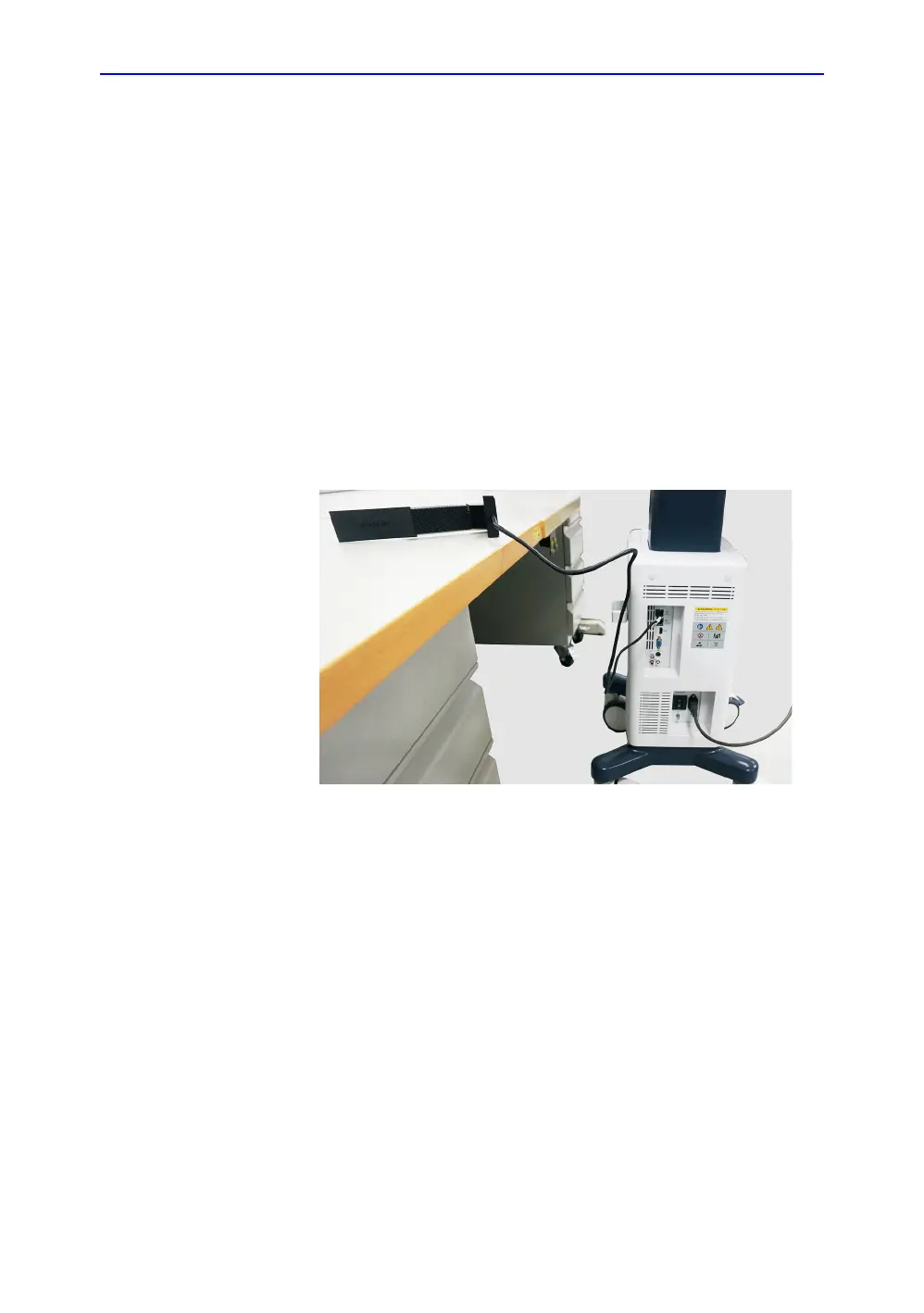

Figure 3-32. Wireless Adaptor Connector
To Next Page
