Service Adjustments
6-6 LOGIQ V3/V5/V5 Expert – Basic Service Manual
5726264-100 English Rev.8

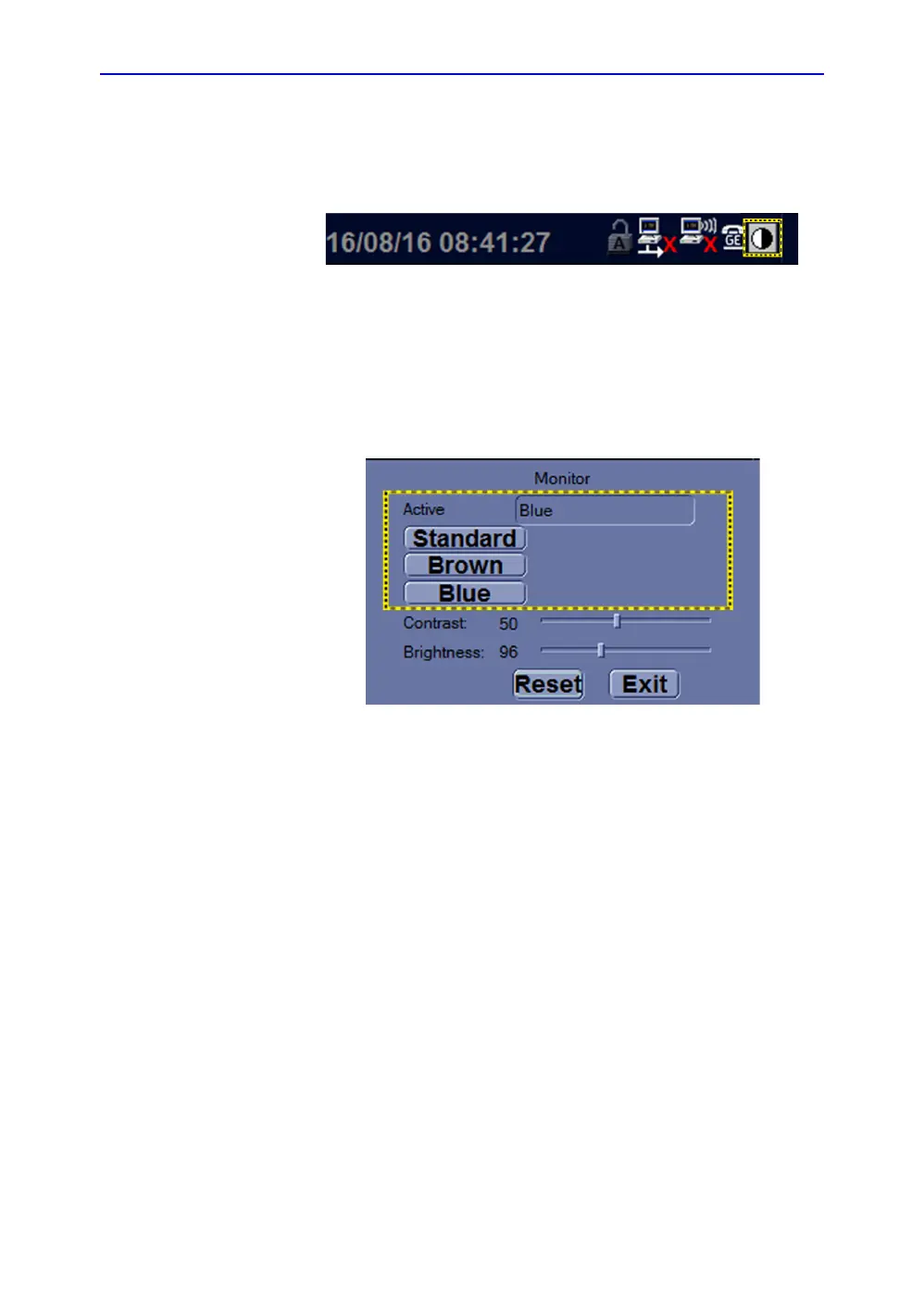

6-2-1-3-2 Adjust LCD Monitor by Software
1. Press Cursor key on the control panel. Move the trackball to
position the cursor over the adjustment icon, then press
Set/B Pause to display the setting menu.
Figure 6-7. Setting Menu Icon
2. Follow the procedure below to adjust the Color
Temperature, Contrast, and Brightness:
• To adjust the color temperature: press Standard,
Brown, or Blue to choose the color temperature. The
chosen color temperature displays in the Active area.
Figure 6-8. Active Color Temperature
