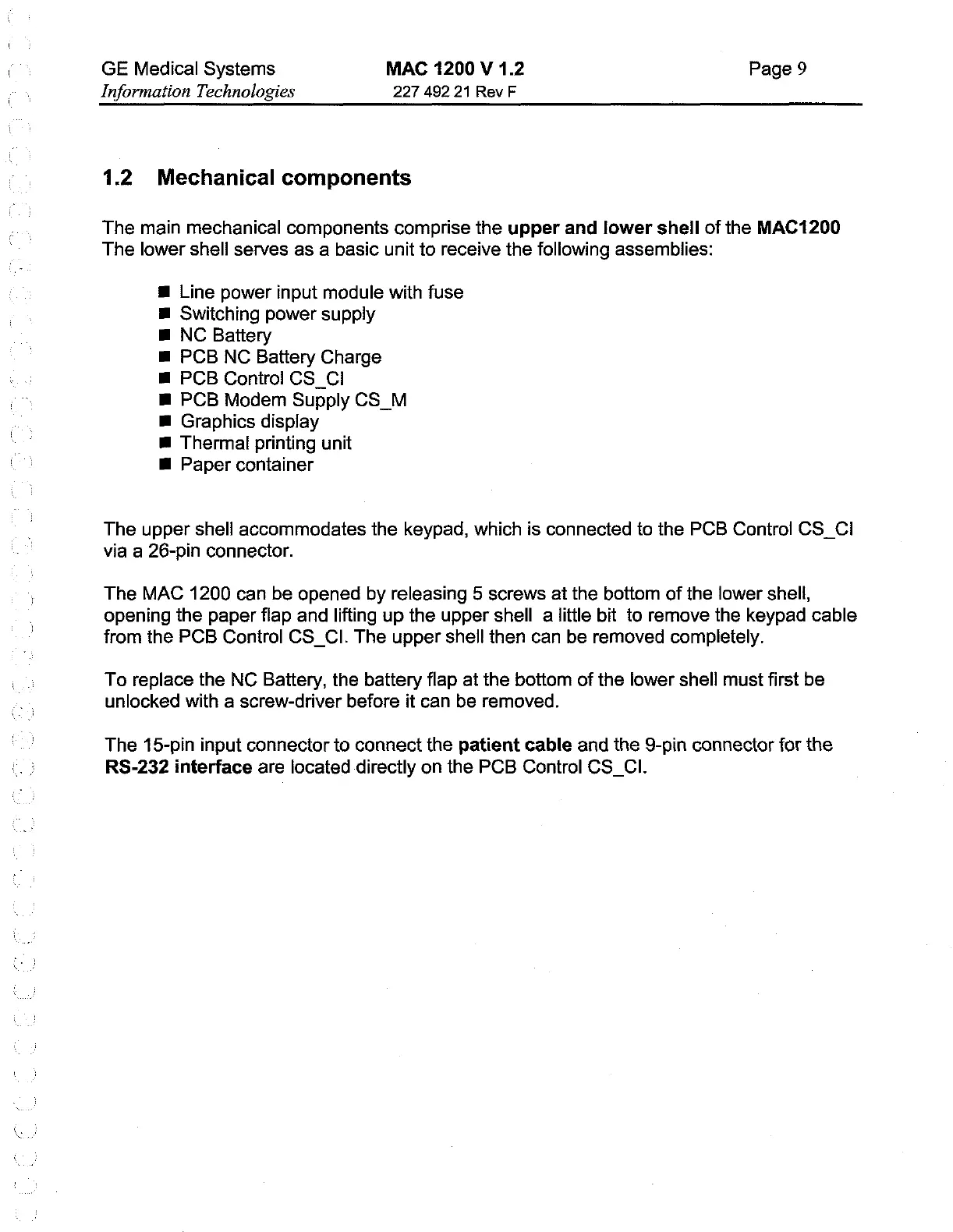

GE
Medical
Systems
MAC
1200
V
1.2
Page
9
Information
Technologies
227
492
21
Rev
F
12
Mechanical
components
The
main
mechanical
components
comprise
the
upper
and
lower
shell
of
the
MAC1200
The
lower
shell
serves
as
a
basic
unit
to
receive
the
following
assemblies:
mM
Line
power
input
module
with
fuse
m
Switching
power
supply
m
NC
Battery
m
PCB
NC
Battery
Charge
m
PCB
Control
CS
Ci
m
PCB
Modem
Supply
CS
M
m
Graphics
display
m
Thermal
printing
unit
m
Paper
container
The
upper
shell
accommodates
the
keypad,
which
is
connected
to
the
PCB
Control
CS
Ci
via
a
26-pin
connector.
The
MAC
1200
can
be
opened
by
releasing
5
screws
at
the
bottom
of
the
lower
shell,
opening
the
paper
flap
and
lifting
up
the
upper
shell a
little
bit
to
remove
the
keypad
cable
from
the
PCB
Control
CS
CI.
The
upper
shell
then
can
be
removed
completely.
To
replace
the
NC
Battery,
the
battery
flap
at
the
bottom
of
the
lower
shell
must
first
be
unlocked
with
a
screw-driver
before
it
can
be
removed.
The
15-pin
input
connector
to
connect
the
patient
cable
and
the
9-pin
connector
for
the
RS-232
interface
are
iocated
directly
on
the
PCB
Control
CS
CI.
