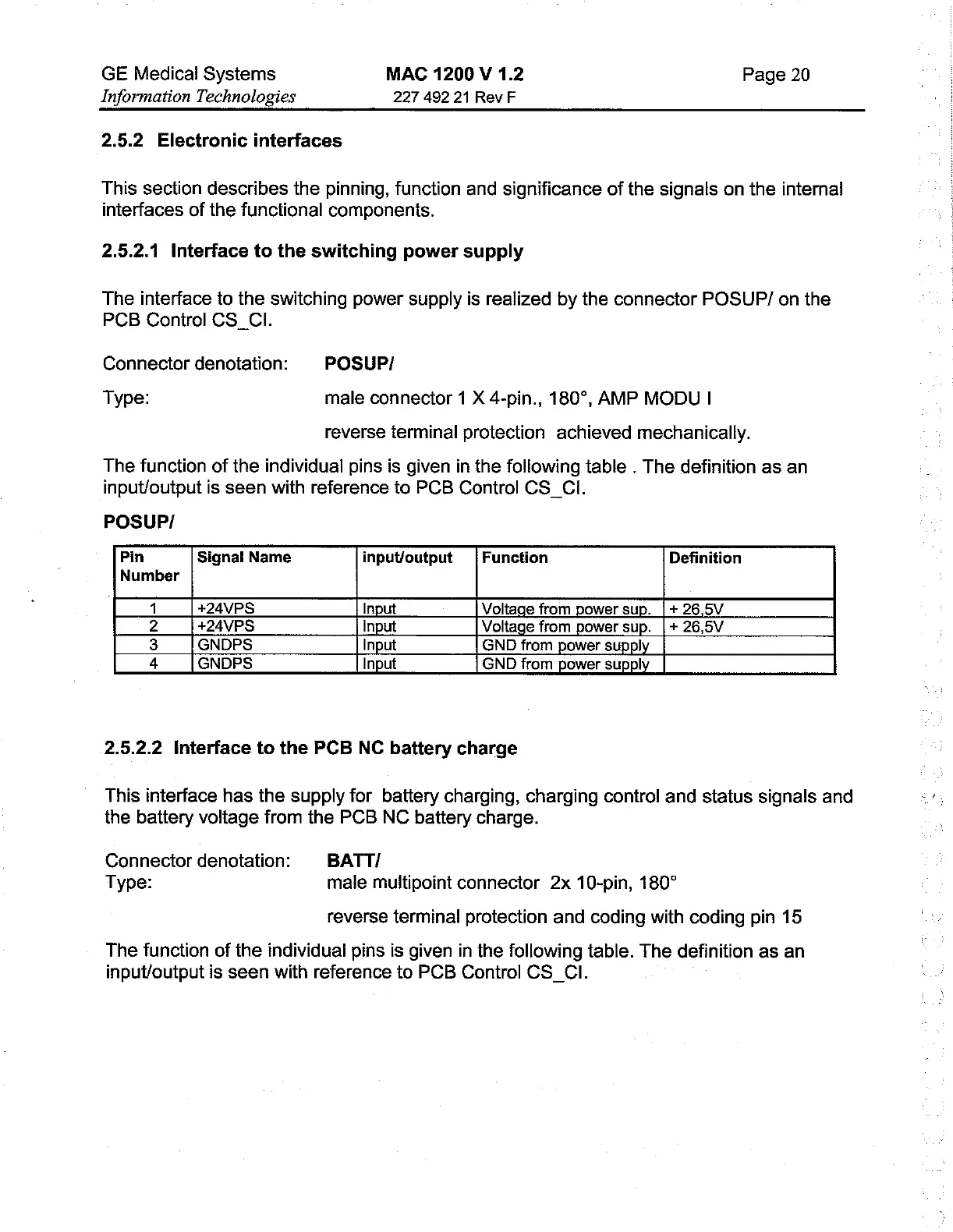

20
Information
Technologies
227
492
21
Rev
F
2.5.2
Electronic
interfaces
This
section
describes
the
pinning,
function
and
significance
of
the
signals
on
the
internal
interfaces
of
the
functional
components.
2.5.2.1
Interface
to
the
switching
power
supply
The
interface
to
the
switching
power
supply
is
realized
by
the
connector
POSUP/
on
the
PCB
Control
CS
CI.
Connector
denotation:
POSUP/
Type:
male
connector
1
X
4-pin.,
180°,
AMP
MODU
|
reverse
terminal
protection
achieved
mechanically.
The
function
of
the
individual
pins
is
given
in
the
following
table
.
The
definition
as
an
input/output
is
seen
with
reference
to
PCB
Control
CS
Cl.
POSUP/
Pin
Signal
Name
input/output
|
Function
Definition
Number
1
+24VPS
Input
Voltage
from
power
sup.
|
+
26,5V
2
+24VPS
Input
Voltage
from
power
sup.
|
*
26,5V
3
GNDPS
Input
GND
from
power
supply
4
GNDPS
Input
GND
from
power
supply
2.5.2.2
Interface
to
the
PCB
NC
battery
charge
This
interface
has
the
supply
for
battery
charging,
charging
control
and
status
signals
and
the
battery
voltage
from
the
PCB
NC
battery
charge.
Connector
denotation:
BATT/
Type:
male
multipoint
connector
2x
10-pin,
180°
reverse
terminal protection
and
coding
with
coding
pin
15
The
function
of
the
individual
pins
is
given
in
the
following
table.
The
definition
as
an
input/output
is
seen
with
reference
to
PCB
Control
CS
CI.
