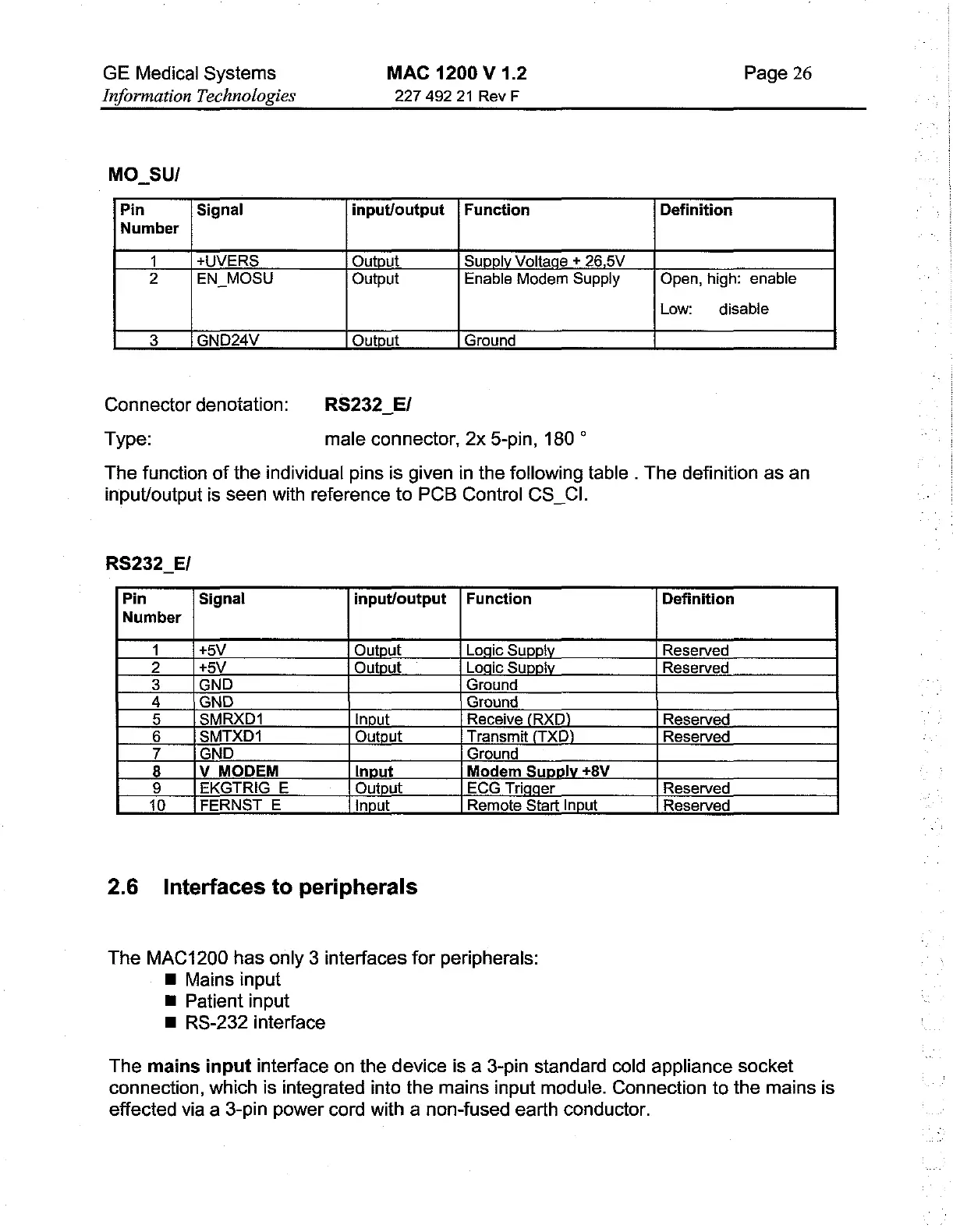

GE MAC 1200

GE Medical Systems MAC 1200 V 1.2 Page 26
Information Technologies 227 492 21 Rev F
MO SU/
Pin Signal input/output | Function Definition
Number
1 +UVERS Output Supply Voltage + 26,5V
2 EN_MOSU Output Enable Modem Suppiy Open, high: enable
Low: disable
3 GND24V Qutput Ground
Connector denotation: RS232 E/
Type: male connector, 2x 5-pin, 180 °
The function of the individual pins is given in the following table . The definition as an
input/output is seen with reference to PCB Control CS CI.
RS232 E/
Pin input/output | Function Definition
Number
1
2
3
2.6 Interfaces to peripherals
The MAC1200 has only 3 interfaces for peripherals:
m Mains input
m Patient input
m RS-232 interface
The mains input interface on the device is a 3-pin standard cold appliance socket
connection, which is integrated into the mains input module. Connection to the mains is
effected via a 3-pin power cord with a non-fused earth conductor.
