MFA Mounting Instructions
There are two different mounting options for the MFA module: DIN
Rail mount or Panel Mount. Panel mounting the MFA requires using
the ICEQIMFA-MOUNT panel mount plate.

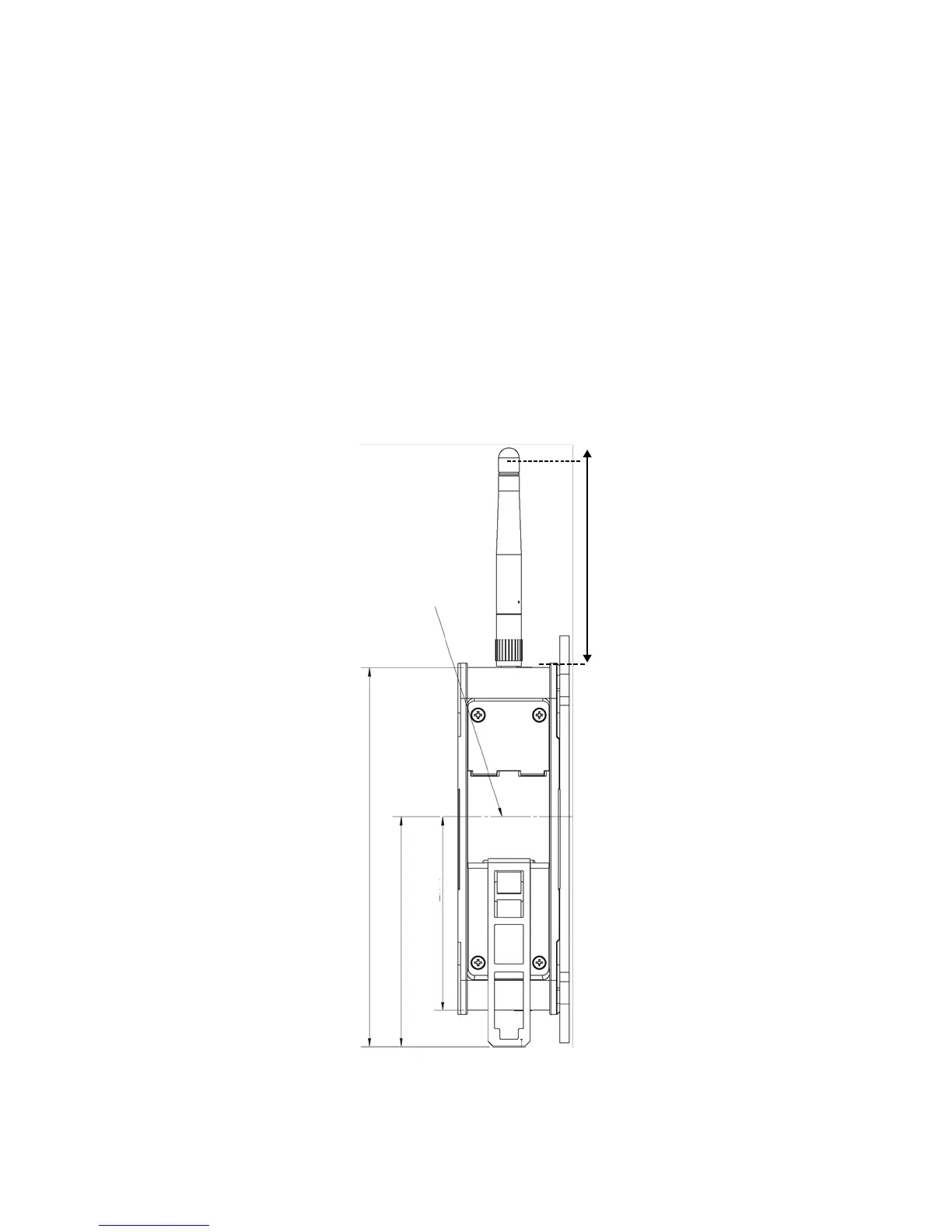

Antennae is not needed for this configuration even though an
antennae is shown in the below figure.
DIN Rail Mounting
The MFA comes equipped with a DIN Rail mounting clip as displayed
in the following figure. For DIN Rail mounting, pull the clip down and
lock it in place. Place the unit on the DIN rail, and then push the clip
up to secure it. The optional panel mounting plate should not be
attached because it will prevent DIN rail mounting.
AC.26.003
[146]
5.75
[88.7]
3.49
[74.6]
2.94
[84.9]
3.34
DIN Mount
Center Line
Note
38 2094532-001 D 02 2018
